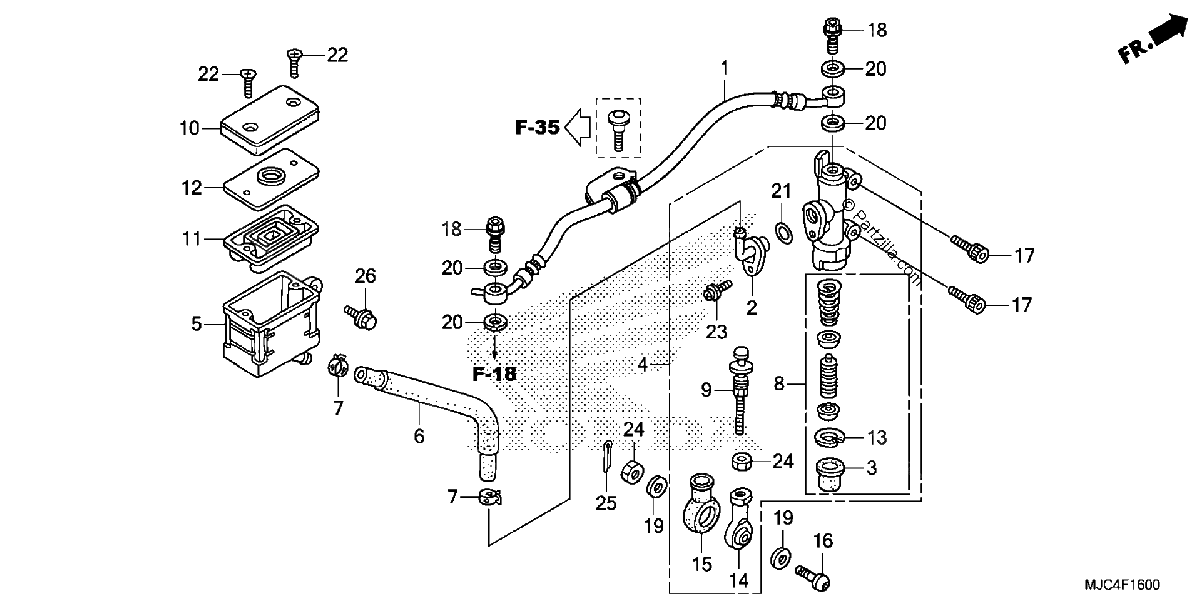

REAR BRAKE MASTER CYLINDER CBR600RR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
HOSE, RR. BRAKE
$72.38¢36 188
#2
CONNECTOR
$8.54¢4 269
#3
BOOT
$11.74¢5 869
#4
MASTER CYLINDER SUB-ASSY., RR. (COO)
$171.31¢85 656
#5
CUP, OIL
$27.52¢13 763
#6
HOSE, RR. MASTER CYLINDER
$18.74¢9 369
#7
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#8
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
#9
ROD, PUSH
$31.58¢15 788
#10
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#10
CAP, MASTER CYLINDER
$5.04¢2 519
#11
DIAPHRAGM
$12.31¢6 156
#12
PLATE, DIAPHRAGM
$12.60¢6 300
#13
CIRCLIP
$2.50¢1 250
#14
TIE ROD
$81.89¢40 944
#15
COVER, DUST
$10.00¢5 000
#16
BOLT, SOCKET (8X30)
$8.59¢4 294
#17
BOLT, SOCKET (6X20)
$2.09¢1 044
#18
BOLT, OIL (10X22)
$8.89¢4 444
#19
WASHER, SPECIAL (8MM)
$3.43¢1 713
#20
WASHER, OIL BOLT
$4.85¢2 425
#21
O-RING (14.8X2.4)
$3.30¢1 650
#22
SCREW, FLAT (4X40)
$0.61¢306
#23
SCREW-WASHER (4X12)
$1.72¢862
#23
SCREW-WASHER (4X12)
$1.72¢862
#24
NUT, HEX. (8MM)
$1.60¢800
#25
PIN, SPLIT (2.0X15)
$1.34¢669
#26
BOLT, FLANGE (6X16)
$1.21¢606
