AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

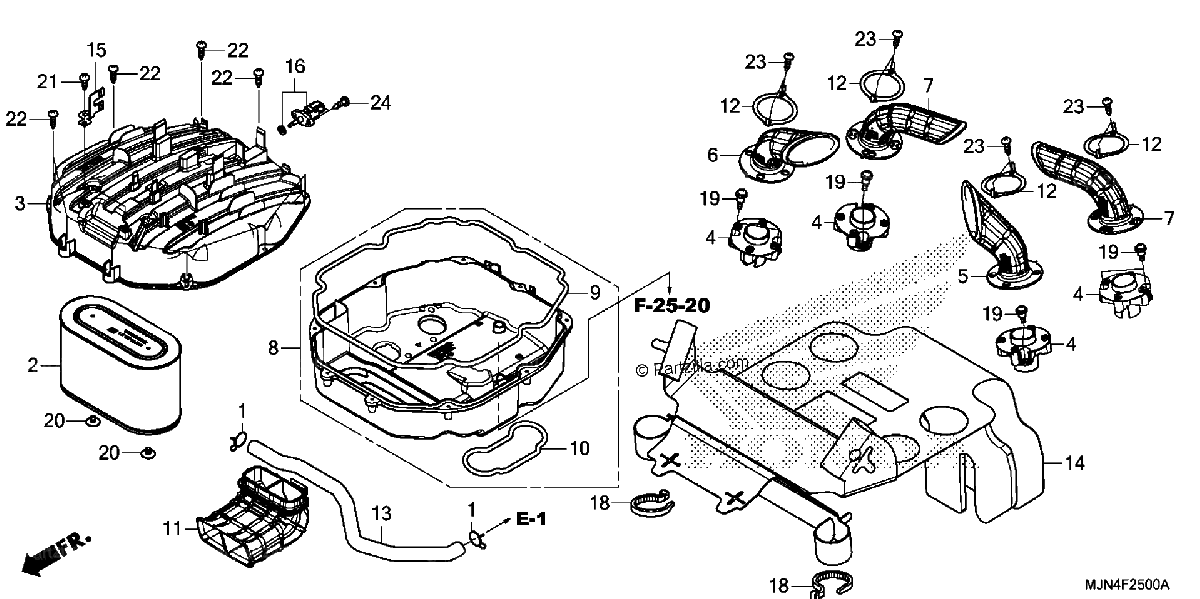

Diagrama de AIR CLEANER

Repuestos

#1
15772-GB5-670
CLIP, DRAIN TUBE (B20)
$4.36¢2 181
1
#2
17210-MJN-A00
ELEMENT, AIR CLEANER
$75.60¢37 800
1
#3
17221-MJN-A00
COVER, AIR CLEANER
$161.76¢80 881
1
#4
17225-MJN-A00
BASE, FUNNEL
$19.45¢9 725
1
#5
17226-MJN-A00
FUNNEL, AIR (#1)
$28.36¢14 181
1
#6
17227-MJN-A00
FUNNEL, AIR (#2)
$35.74¢17 869
1
#7
17228-MJN-A00
FUNNEL, AIR (#3) (#4)
$35.74¢17 869
1
#8
17231-MJN-A00
HOUSING, AIR CLEANER
$192.18¢96 088
1
#9
17232-MJN-A00
SEAL A, AIR CLEANER HOUSING
$12.66¢6 331
1
#10
17233-MJN-A00
SEAL B, AIR CLEANER HOUSING
$4.71¢2 356
1
#11
17253-MCS-G01
DUCT, AIR CLEANER IN.
$39.80¢19 900
1
#12
17254-MCS-305
PLATE SET, AIR FUNNEL
$5.94¢2 969
1
#12
17254-MCS-G00
PLATE, AIR FUNNEL
$5.94¢2 969
1
#13
17365-MCS-G00
TUBE, BREATHER
$21.60¢10 800
1
#14
19130-MJN-A00
RUBBER, HEAT GUARD
$124.29¢62 144
1
#14
19130-MJN-A01
RUBBER, HEAT GUARD
$126.51¢63 256
1
#15
35550-MJN-A00
STAY, GRIP HEATER CONNECTOR
$7.64¢3 819
1
#16
37880-KWW-C01
SENSOR ASSY., AIR TEMPERATURE
$51.75¢25 875
1
#17
90651-MFL-D01
CLAMP, BRAKE PIPE
$4.07¢2 037
1
#18
90679-SG9-E01
BAND, SUCTION HOSE (BLACK)
$4.58¢2 288
1
#19
91508-MGP-D00
SCREW, PAN (5MM)
$4.84¢2 419
1
#19
91508-MM5-000
SCREW, PAN (5MM)
$4.95¢2 475
1
#20
93894-05008-07
SCREW-WASHER (5X8)
$1.39¢694
1
#21
93903-25210
SCREW, TAPPING (5X12)
$1.06¢531
1
#22
93903-25480
SCREW, TAPPING (5X20)
$0.86¢431
1
#23
93903-25480
SCREW, TAPPING (5X20)
$0.86¢431
1
#24
93911-25420
SCREW, TAPPING (5X16)
$1.25¢625
1
