PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

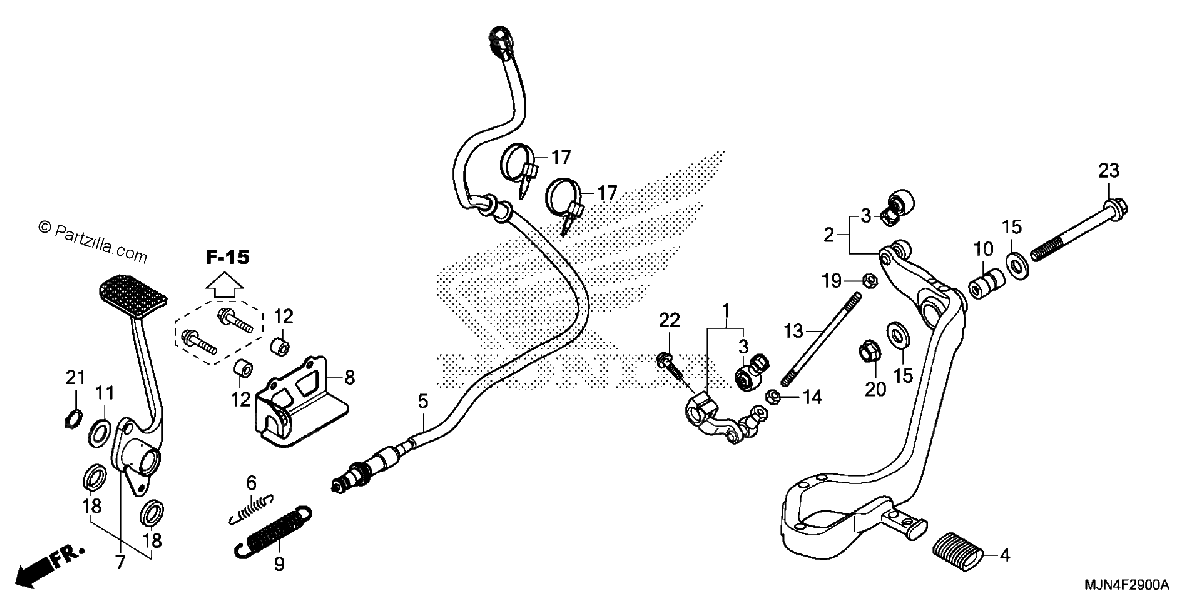

Diagrama de PEDAL

Repuestos

#1
24710-MCS-G00
ARM, GEARSHIFT
$45.85¢22 925
1
#2
24720-MJN-305
PEDAL, GEARSHIFT (COO)
$134.10¢67 051
1
#3
24724-MBW-D21
COVER, DUST
$7.77¢3 887
1
#4
24781-371-000
RUBBER, CHANGE PEDAL
$5.72¢2 858
1
#5
35350-MJN-A00
SWITCH ASSY., RR. STOP
$15.98¢7 993
1
#5
35350-MJN-A01
SWITCH ASSY., RR. STOP
$15.93¢7 964
1
#6
35357-MJN-A00
SPRING, STOP SWITCH
$5.24¢2 622
1
#6
35357-MJN-A01
SPRING, STOP SWITCH
$5.43¢2 714
1
#7
46500-MJN-305
PEDAL ASSY., RR. BRAKE (COO)
$134.10¢67 051
1
#7
46500-MJN-A00
PEDAL ASSY., RR. BRAKE
$134.10¢67 051
1
#8
46506-MJN-A00
STAY, STOP SWITCH
$19.84¢9 919
1
#9
46514-MJN-A00
SPRING, BRAKE PEDAL RETURN
$8.16¢4 082
1
#9
46514-MJN-A01
SPRING, BRAKE PEDAL RETURN
$8.39¢4 198
1
#10
46515-MM8-000
COLLAR, RR. BRAKE PIVOT
$12.51¢6 256
1
#11
53312-657-000
WASHER, BUSH
$7.47¢3 738
1
#12
53709-MFL-000
COLLAR, STEERING DAMPER
$2.45¢1 225
1
#13
90165-MJN-A00
BOLT, TIE ROD
$9.46¢4 732
1
#14
90201-700-000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
$0.91¢454
1
#15
90551-033-000
WASHER, SPROCKET SETTING
$2.06¢1 029
1
#16
90601-KAF-003
CLIP, SWITCH COVER
$3.16¢1 581
1
#17
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#18
91206-968-003
DUST SEAL (17X23X3) (NOK)
$4.12¢2 059
1
#19
94002-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#20
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#21
94511-15000
CIRCLIP, OUTER (15MM)
$0.80¢402
1
#22
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
1
#23
95701-10100-00
BOLT, FLANGE (10X100)
$3.48¢1 742
1
