SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

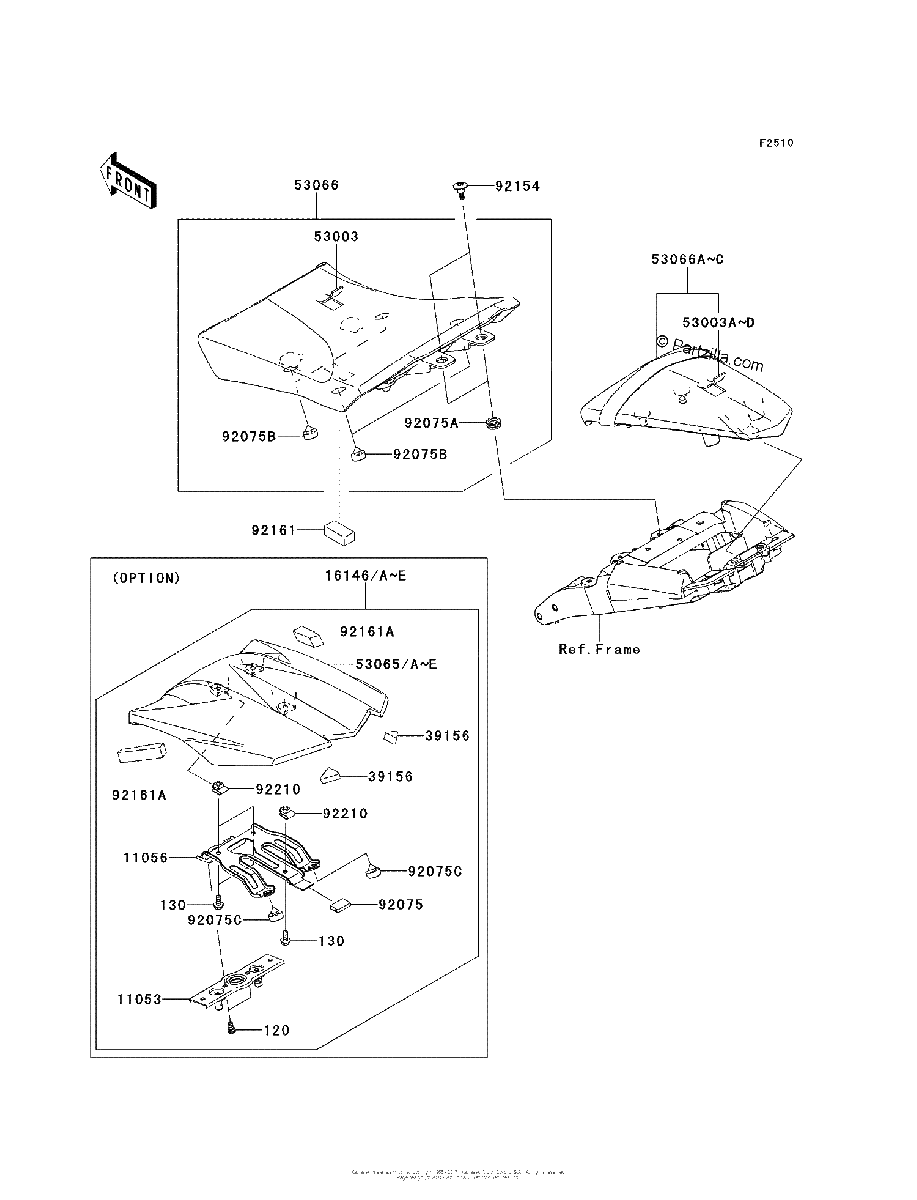

Diagrama de SEAT

Repuestos

#120
120CA0610
BOLT-SOCKET,6X10
$1.53¢765
1
#130
130BA0614
BOLT FLANGED,6X14
$1.16¢581
1
#11053
11053-0386
BRACKET,SEAT LOCK STRIKER
$33.22¢16 612
1
#11056
11056-0021
BRACKET | (OPTION)
$81.58¢40 790
1
#16146
16146-0124-H8
COVER Assembly,SINGLE SEAT,EBONY
$283.94¢141 968
1
#16146
16146-0124-660
COVER Assembly,SINGLE SEAT,BLACK
$290.46¢145 228
1
#16146
16146-0124-40R
COVER Assembly,SINGLE SEAT,G B GRN
$283.94¢141 968
1
#16146
16146-0124-25Y
COVER Assembly,SINGLE SEAT,WHITE
$282.12¢141 059
1
#16146
16146-0124-17P
COVER-ASSY,SINGLE SEAT,C.L.GRN | (OPTION) (OPTION)
$283.94¢141 968
1
#16146
16146-0124-17L
COVER Assembly,SINGLE SEAT,ORG
$292.58¢146 291
1
#16146D
16146-0124-40R
COVER Assembly,SINGLE SEAT,G B GRN
$283.94¢141 968
1
#39156
39156-0099
PAD
$3.76¢1 880
1
#53003
53003-0162-MA
LEATHER,Front SEAT,BLACK
$169.07¢84 537
1
#53003A
53003-0163-MA
LEATHER,Rear SEAT,BLACK
$169.07¢84 537
1
#53003A
53003-0163-13U
LEATHER,Rear SEAT,P S WHITE
$180.46¢90 229
1
#53003C
53003-0163-12Y
LEATHER,Rear SEAT,BLACK
$169.07¢84 537
1
#53003A
53003-0163-12Y
LEATHER,Rear SEAT,BLACK
$169.07¢84 537
1
#53003A
53003-0163-12Q
LEATHER,Rear SEAT,M C ORANGE
$169.07¢84 537
1
#53065
53065-0019-660
COVER SEAT,M S BLACK
$375.72¢187 858
1
#53065
53065-0019-H8
COVER SEAT,EBONY
$382.58¢191 291
1
#53065
53065-0019-17L
COVER SEAT,C B ORANGE
$355.44¢177 721
1
#53065D
53065-0019-40R
COVER SEAT,G B GREEN
$375.72¢187 858
1
#53065
53065-0019-40R
COVER SEAT,G B GREEN
$375.72¢187 858
1
#53065
53065-0019-25Y
COVER SEAT,P S WHITE
$375.72¢187 858
1
#53065
53065-0019-17P
COVER SEAT,C L GREEN
$375.72¢187 858
1
#53066A
53066-0284-12Y
SEAT,Rear,LEATHER Black+BAND Black
$273.16¢136 580
1
#53066A
53066-0284-13L
SEAT,Rear,LEATHER ORG+BAND ORG
$275.36¢137 678
1
#53066A
53066-0284-13V
SEAT,Rear,LEATHER WHT+BAND WHT
$278.21¢139 104
1
#53066
53066-0282-MA
SEAT Assembly,Front,BLACK
No Disponible
1
#92075C
92075-1927
DAMPER,10X20X8
$4.01¢2 007
1
#92075A
92075-1634
DAMPER
$4.28¢2 139
1
#92075B
92075-1927
DAMPER,10X20X8
$4.01¢2 007
1
#92075
92075-1446
DAMPER
$4.48¢2 242
1
#92154
92154-0292
BOLT,6X20
$3.91¢1 955
1
#92161A
92161-0897
DAMPER | (OPTION)
$4.42¢2 208
1
#92161
92161-0889
DAMPER,FR SEAT
$3.51¢1 754
1
#92210
92210-0277
NUT,6MM
$4.48¢2 242
1
