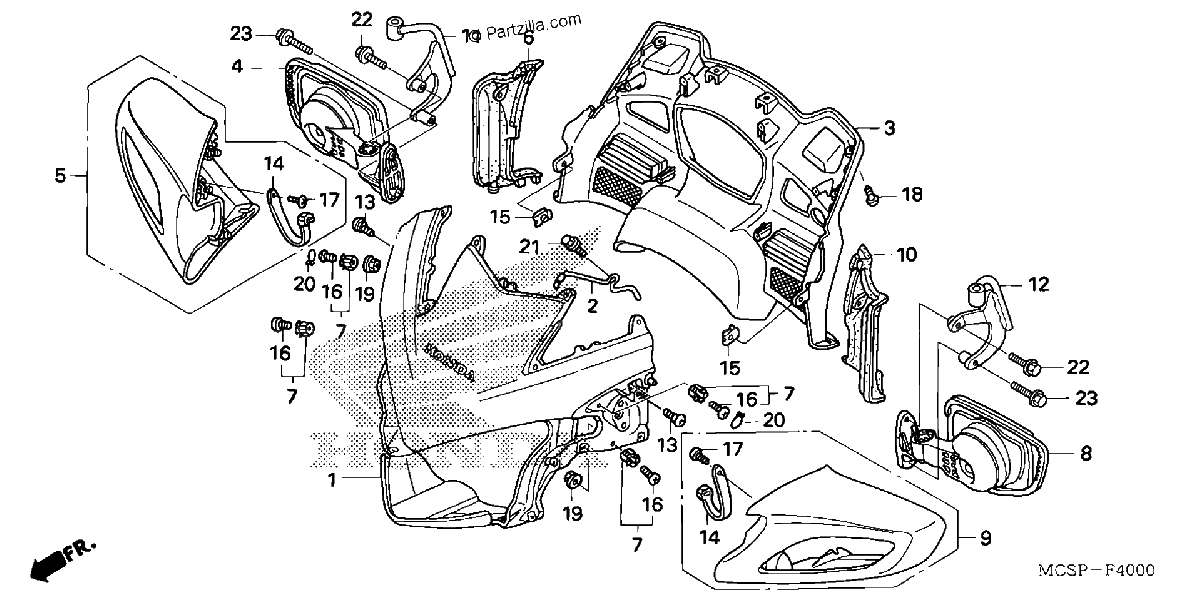

UPPER COWL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COWL SET (UPPER) *NH138* (WL) (SHASTA WHITE)
$676.00¢338 000
#2
GUIDE, COWL (UPPER)
$15.93¢7 963
#3
PANEL, METER
$344.36¢172 181
#4
MIRROR ASSY., R. BACK (COO)
$175.26¢87 631
#4
MIRROR ASSY., R. BACK
$175.26¢87 631
#5
COVER, R. MIRROR *NH138* (SHASTA WHITE)
$165.54¢82 769
#6
RUBBER, R. MIRROR COVER
$28.85¢14 425
#7
WASHER, MIRROR SETTING SPRING
$8.28¢4 138
#8
MIRROR ASSY., L. BACK (COO)
$180.54¢90 269
#8
MIRROR ASSY., L. BACK
$153.49¢76 744
#9
COVER, L. MIRROR *NH138* (SHASTA WHITE)
$165.54¢82 769
#10
RUBBER, L. MIRROR COVER
$28.85¢14 425
#11
STAY, R. FR. PATROL
$88.38¢44 188
#12
STAY, L. FR. PATROL
$88.38¢44 188
#13
SCREW, PAN (5X13)
$1.39¢694
#14
BAND, WIRE HARNESS
$5.02¢2 512
#15
NUT, CLIP (5MM)
$4.94¢2 469
#16
SCREW, PAN (5X12)
$1.16¢581
#17
SCREW, TAPPING (3X12)
$0.83¢413
#18
SCREW, TAPPING (4X12)
$1.16¢581
#19
NUT, FLANGE (5MM)
$1.68¢838
#20
CLIP, TUBE (B10)
$2.44¢1 219
#21
BOLT, FLANGE (6X14)
$1.23¢613
#22
BOLT, FLANGE (6X40)
$2.79¢1 394
#23
BOLT, FLANGE (6X50)
$2.79¢1 394
