FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

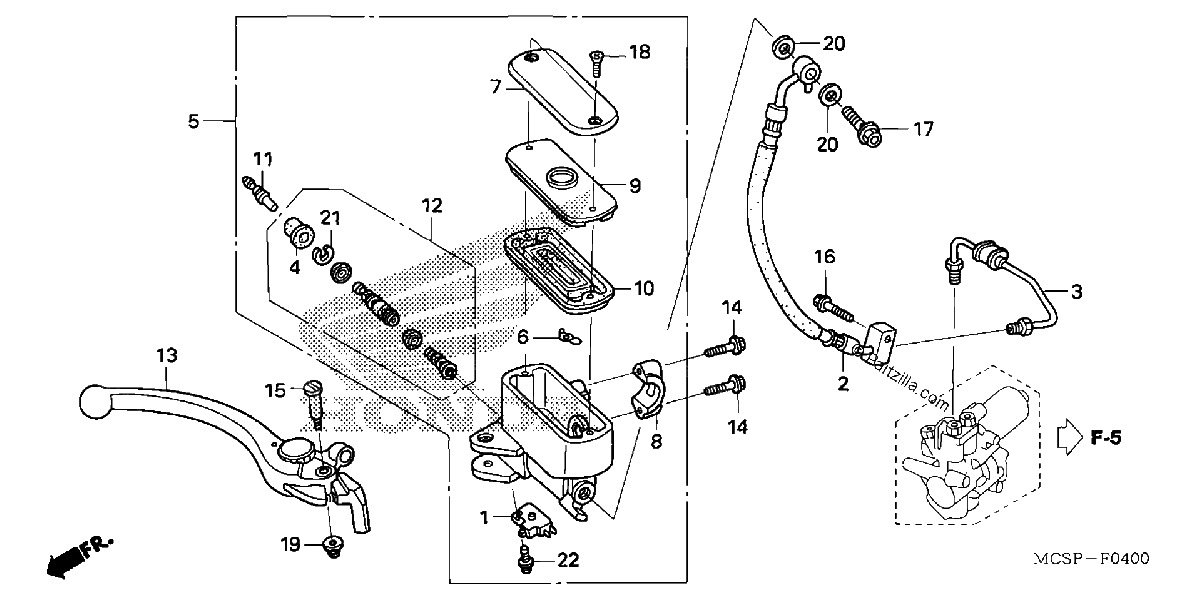

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
35340-MM5-600
SWITCH Assembly., Front STOP
$23.13¢11 563
1
#1
35340-MM5-601
SWITCH ASSY., FR. STOP
$15.36¢7 682
1
#2
45125-MCS-A31
HOSE A, FR. BRAKE
$81.05¢40 526
1
#3
45126-MCS-G02
PIPE A, FR. BRAKE
$15.84¢7 918
1
#4
45504-410-003
BOOT
$13.10¢6 549
1
#5
45510-MCS-761
MASTER CYLINDER SUB-ASSY., FR. (NISSIN)
$312.88¢156 440
1
#6
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#7
45513-MR1-016
CAP, MASTER CYLINDER (NISSIN)
$32.69¢16 347
1
#8
45517-MCS-761
HOLDER, MASTER CYLINDER
$13.51¢6 756
1
#9
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#10
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#11
45525-MAJ-G41
ROD, PUSH
$26.47¢13 237
1
#12
45530-MAJ-G41
PISTON SET, FR. MASTER CYLINDER
$68.71¢34 356
1
#13
53170-MCS-G01
LEVER ASSY., R. HANDLE
$63.89¢31 947
1
#14
90010-GHB-660
BOLT, FLANGE (6X22)
$1.47¢736
1
#14
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
#15
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#16
90114-MCS-G00
BOLT, FLANGE (6X28)
$1.66¢828
1
#17
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#18
90158-MT7-000
SCREW, FLAT
$2.54¢1 271
1
#19
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#20
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#21
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#22
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#22
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
