SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

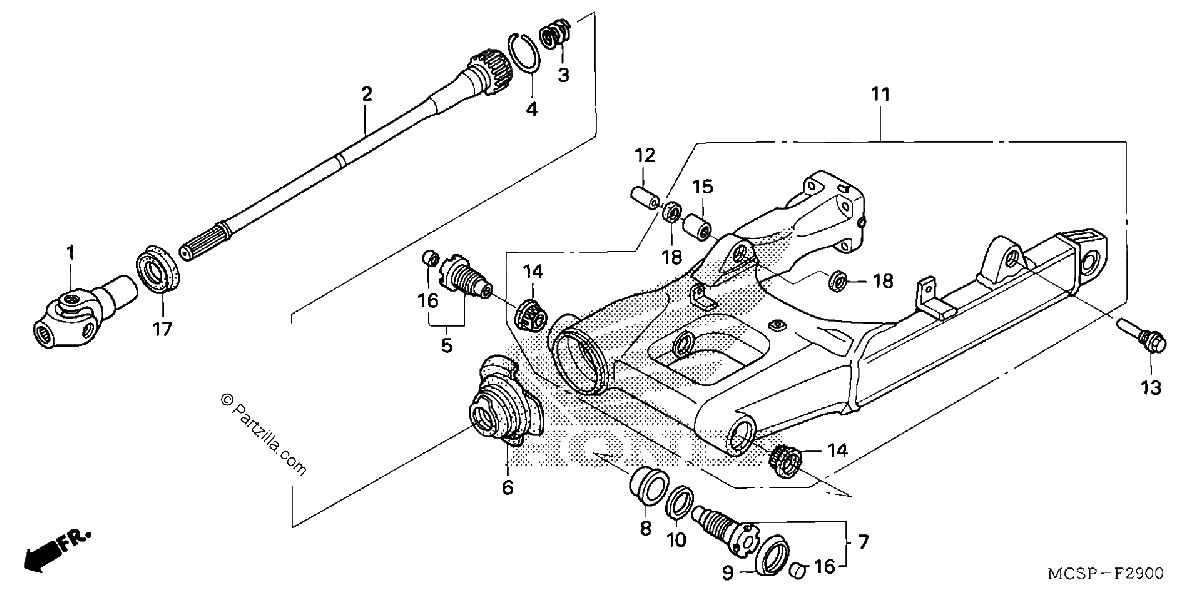

Diagrama de SWINGARM

Repuestos

#1
40200-MCS-G00
JOINT, YOKE
$269.70¢134 849
1
#2
40201-MCS-G00
SHAFT, PROPELLER
$237.28¢118 640
1
#3
40215-MCS-G00
SPRING, PROPELLER SHAFT
$2.64¢1 322
1
#4
40221-MB0-000
RING, STOPPER
$5.04¢2 519
1
#5
52101-MCS-760
BOLT ASSY., R. PIVOT
$82.72¢41 360
1
#6
52104-MCS-G00
BOOT, JOINT
$20.55¢10 275
1
#7
52106-MCS-760
BOLT ASSY., L. PIVOT
$115.24¢57 621
1
#8
52141-MCS-761
COLLAR, L. PIVOT
$82.86¢41 429
1
#9
52142-MCS-760
COVER, PIVOT
$16.95¢8 476
1
#10
52178-MCS-760
SHIM, PIVOT (1.40)
$9.86¢4 928
1
#10
52174-MCS-760
SHIM, PIVOT (1.20)
$9.86¢4 928
1
#10
52175-MCS-760
SHIM, PIVOT (1.25)
$9.86¢4 928
1
#10
52176-MCS-760
SHIM, PIVOT (1.30)
$9.86¢4 928
1
#10
52177-MCS-760
SHIM, PIVOT (1.35)
$9.86¢4 928
1
#10
52183-MCS-760
SHIM, PIVOT (1.65)
$9.86¢4 928
1
#10
52179-MCS-760
SHIM, PIVOT (1.45)
$9.86¢4 928
1
#10
52180-MCS-760
SHIM, PIVOT (1.50)
$9.86¢4 928
1
#10
52181-MCS-760
SHIM, PIVOT (1.55)
$9.86¢4 928
1
#10
52182-MCS-760
SHIM, PIVOT (1.60)
$9.86¢4 928
1
#10
52184-MCS-760
SHIM, PIVOT (1.70)
$9.86¢4 928
1
#10
52173-MCS-760
SHIM, PIVOT (1.15)
$9.86¢4 928
1
#10
52172-MCS-760
SHIM, PIVOT (1.10)
$9.86¢4 928
1
#10
52171-MCS-760
SHIM, PIVOT (1.05)
$9.86¢4 928
1
#10
52164-MCS-760
SHIM, PIVOT (0.70)
$9.86¢4 928
1
#10
52160-MCS-760
SHIM, PIVOT (0.50)
$9.86¢4 928
1
#10
52170-MCS-760
SHIM, PIVOT (1.00)
$9.86¢4 928
1
#10
52162-MCS-760
SHIM, PIVOT (0.60)
$9.86¢4 928
1
#10
52163-MCS-760
SHIM, PIVOT (0.65)
$9.86¢4 928
1
#10
52161-MCS-760
SHIM, PIVOT (0.55)
$9.86¢4 928
1
#10
52165-MCS-760
SHIM, PIVOT (0.75)
$9.86¢4 928
1
#10
52166-MCS-760
SHIM, PIVOT (0.80)
$9.86¢4 928
1
#10
52167-MCS-760
SHIM, PIVOT (0.85)
$9.86¢4 928
1
#10
52168-MCS-760
SHIM, PIVOT (0.90)
$9.86¢4 928
1
#10
52169-MCS-760
SHIM, PIVOT (0.95)
$9.86¢4 928
1
#11
52200-MCS-G00
SWINGARM SUB-ASSY., RR.
$1006.12¢503 062
1
#12
52463-MAL-G00
COLLAR, CUSHION CONNECTING ROD
$12.57¢6 285
1
#13
90158-MZ0-000
BOLT, BRAKE STOPPER
$27.96¢13 978
1
#14
91066-MCA-003
BEARING, TAPER ROLLER (25X47X15)
$32.36¢16 180
1
#15
91071-KV3-005
BEARING, NEEDLE (KOYO)
$26.59¢13 294
1
#16
91253-MCS-761
DUST SEAL (20X7)
$6.19¢3 093
1
#17
91261-ME9-005
OIL SEAL (27X43X7)
$12.96¢6 480
1
#18
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
