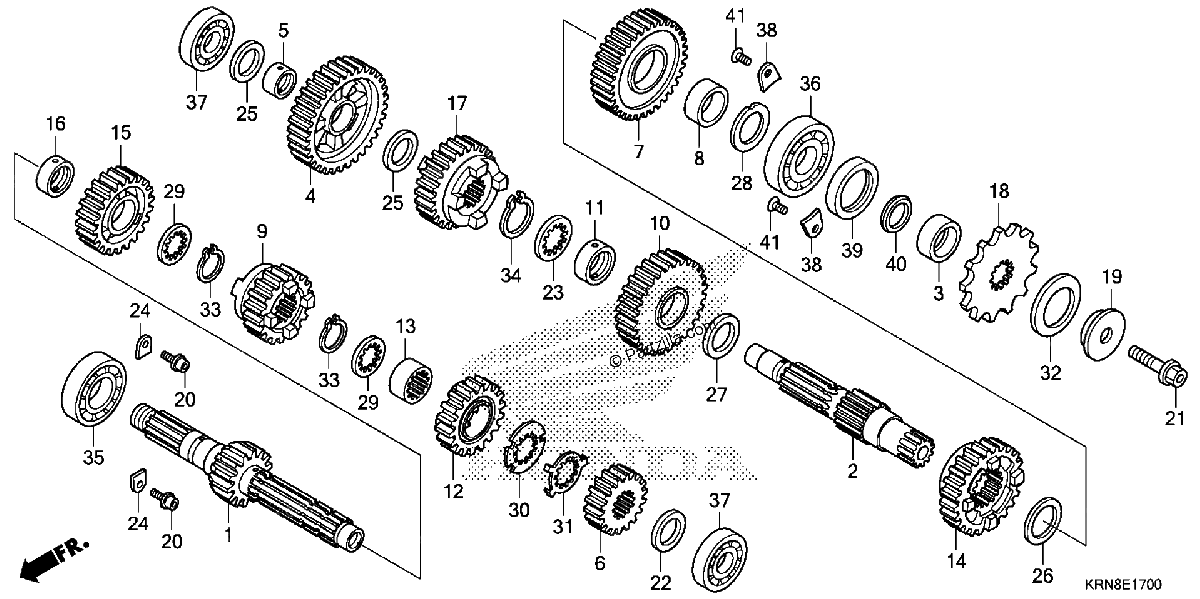

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MAINSHAFT (14T)
$204.91¢102 456
#2
COUNTERSHAFT
$202.05¢101 025
#3
COLLAR, COUNTERSHAFT
$13.88¢6 938
#4
GEAR, COUNTERSHAFT LOW (33T)
$142.99¢71 494
#5
COLLAR (17MM)
$9.57¢4 788
#6
GEAR, MAINSHAFT SECOND (18T)
$70.25¢35 125
#7
GEAR, COUNTERSHAFT SECOND (34T)
$142.99¢71 494
#8
COLLAR (24MM)
$9.94¢4 969
#9
GEAR, MAINSHAFT THIRD (18T)
$141.56¢70 781
#10
GEAR, COUNTERSHAFT THIRD (28T)
$135.68¢67 838
#11
COLLAR, COUNTERSHAFT THIRD GEAR
$12.60¢6 300
#12
GEAR, MAINSHAFT FOURTH (18T)
$124.20¢62 100
#13
COLLAR, MAINSHAFT FOURTH GEAR
$14.57¢7 288
#14
GEAR, COUNTERSHAFT FOURTH (24T)
$141.56¢70 781
#15
GEAR, MAINSHAFT FIFTH (22T)
$128.52¢64 262
#16
COLLAR (20MM)
$9.04¢4 519
#17
GEAR, COUNTERSHAFT FIFTH (25T)
$157.01¢78 506
#18
SPROCKET, DRIVE (13T)
$41.54¢20 769
#19
COLLAR, DRIVE SPROCKET
$17.05¢8 525
#20
BOLT, FLANGE SOCKET (6X14)
$4.06¢2 031
#21
BOLT, UBS (8X33)
$4.68¢2 338
#22
WASHER, SPECIAL (17MM)
$3.65¢1 825
#23
WASHER, THRUST INVOLUTE (22X21X1)
$4.97¢2 488
#24
PLATE, BEARING HOLDER
$0.78¢388
#25
WASHER, THRUST (17.2MM)
$4.36¢2 181
#26
WASHER (24X32X1)
$3.88¢1 938
#27
WASHER, THRUST (22X30X1)
$6.13¢3 063
#28
WASHER (22X33X1.5)
$4.26¢2 131
#29
WASHER, SPLINE (20MM)
$3.14¢1 569
#30
WASHER, SPLINE (20MM)
$4.24¢2 119
#31
WASHER, LOCK (20MM)
$4.35¢2 175
#32
WASHER, SPRING (24MM)
$5.16¢2 581
#33
SET-RING (20MM)
$10.76¢5 381
#34
SET-RING (22MM)
$12.44¢6 219
#35
BEARING, RADIAL BALL (22X47X14)
$16.06¢8 031
#36
BEARING, RADIAL BALL (22X52X14)
$21.16¢10 581
#37
BEARING, RADIAL BALL (17X40X11)
$24.84¢12 419
#38
PLATE, COUNTERSHAFT BEARING
$7.56¢3 781
#39
OIL SEAL (28X37X7)
$9.76¢4 881
#40
D-RING (22MM)
$3.65¢1 825
#41
SCREW, FLAT (6X10)
$1.27¢638
