SEAT REAR GRIP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

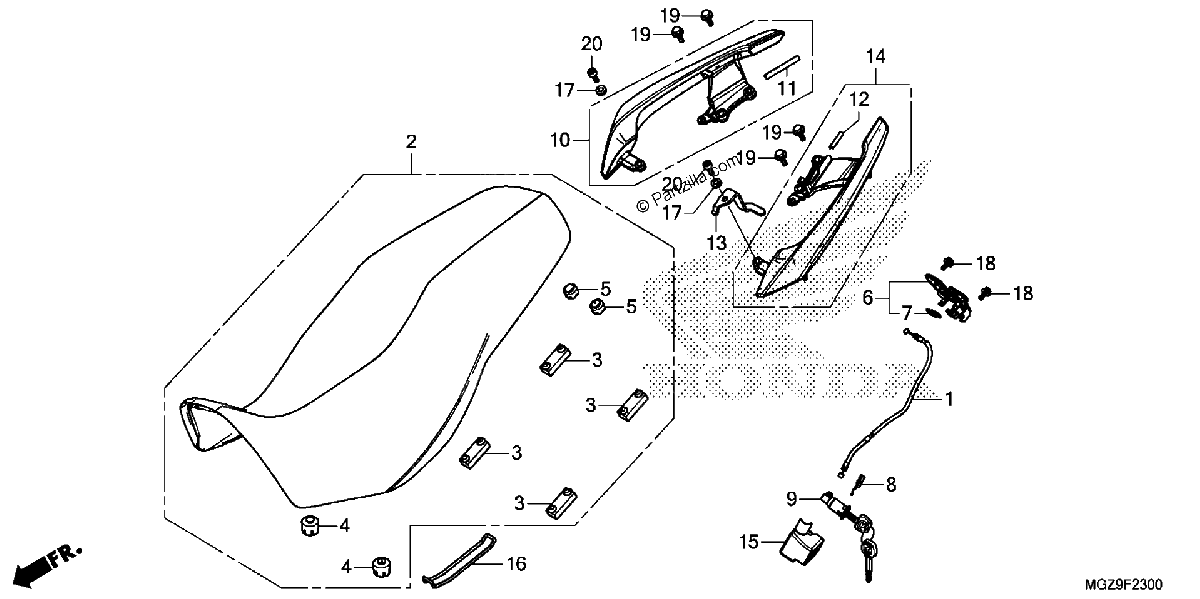

Diagrama de SEAT REAR GRIP

Repuestos

#001
77156-MGZ-J81
CABLE, SEAT LOCK
$10.79¢5 394
1
#1
77156-MGZ-J81
CABLE, SEAT LOCK
$10.79¢5 394
1
#2
77200-MGZ-J81
SEAT Assembly., DOUBLE
$455.43¢227 717
1
#002
77200-MGZ-J81
SEAT Assembly., DOUBLE
$455.43¢227 717
1
#003
77205-286-000
RUBBER B, SEAT SETTING
$5.90¢2 950
1
#3
77205-286-000
RUBBER B, SEAT SETTING
$5.90¢2 950
1
#4
77206-KFN-850
RUBBER, SEAT CUSHION
$4.20¢2 099
1
#004
77206-KFN-850
RUBBER, SEAT CUSHION
$4.20¢2 099
1
#5
77214-KPH-900
RUBBER B, SEAT SETTING
$1.51¢753
1
#005
77214-KPH-900
RUBBER B, SEAT SETTING
$1.51¢753
1
#6
77220-MGZ-J00
LOCK, SEAT
$8.14¢4 071
1
#006
77220-MGZ-J00
LOCK, SEAT
$8.14¢4 071
1
#007
77234-GN2-000
SPRING, SEAT LOCK
$4.38¢2 191
1
#7
77234-GN2-000
SPRING, SEAT LOCK
$4.38¢2 191
1
#8
77235-469-000
SPRING, LOCK KEY SETTING
$6.24¢3 122
1
#008
77235-469-000
SPRING, LOCK KEY SETTING
$6.24¢3 122
1
#009
77239-KVB-900
KEY, SEAT LOCK
$51.35¢25 674
1
#9
77239-KVB-900
KEY, SEAT LOCK
$51.35¢25 674
1
#010
77330-MGZ-J80ZA
GRIP, R. RR. *NH167MU* (IRON NAIL SILVER METALLIC-U)
$114.30¢57 149
1
#10
77330-MGZ-J80ZA
GRIP, R. RR. *NH167MU* (IRON NAIL SILVER METALLIC-U)
$114.30¢57 149
1
#11
77331-MGZ-J00
RUBBER, RR. GRIP
$45.55¢22 776
1
#011
77331-MGZ-J00
RUBBER, RR. GRIP
$45.55¢22 776
1
#12
77331-MGZ-J80
RUBBER, Rear GRIP
$1.00¢500
1
#012
77331-MGZ-J80
RUBBER, Rear GRIP
$1.00¢500
1
#013
77334-MGZ-J80
PLATE, CABLE GUARD
$5.99¢2 996
1
#13
77334-MGZ-J80
PLATE, CABLE GUARD
$5.99¢2 996
1
#14
77340-MGZ-J80ZA
GRIP, L Rear. NH167MU (IRON NAIL SILVER METALLIC-U)
$109.02¢54 510
1
#014
77340-MGZ-J80ZA
GRIP, L Rear. NH167MU (IRON NAIL SILVER METALLIC-U)
$109.02¢54 510
1
#015
77582-MGZ-J80
STAY, SEAT LOCK CABLE
$18.08¢9 039
1
#15
77582-MGZ-J80
STAY, SEAT LOCK CABLE
$18.08¢9 039
1
#16
83606-KWS-901
BAND, TOOL
$3.79¢1 897
1
#016
83606-KWS-901
BAND, TOOL
$3.79¢1 897
1
#017
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#17
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#17
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#017
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#17
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#017
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#18
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#018
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#019
95701-08025-00
BOLT, FLANGE (8X25)
$2.12¢1 058
1
#19
95701-08025-00
BOLT, FLANGE (8X25)
$2.12¢1 058
1
#020
96600-06025-00
BOLT, SOCKET (6X25)
$2.22¢1 110
1
#20
96600-06025-00
BOLT, SOCKET (6X25)
$2.22¢1 110
1
