SPEEDOMETER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

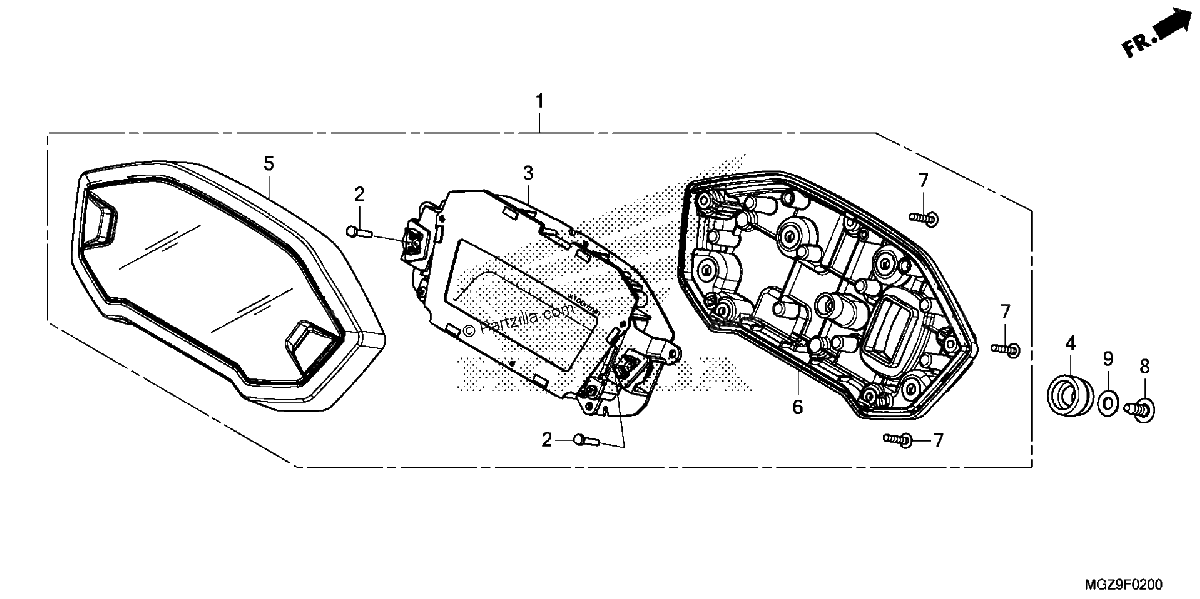

Diagrama de SPEEDOMETER

Repuestos

#1
37100-MGZ-405
METER Assembly., COMBINATION (MPH/KPH)(COO)
$335.44¢167 722
1
#001
37100-MGZ-405
METER Assembly., COMBINATION (MPH/KPH)(COO)
$335.44¢167 722
1
#001
37100-MGZ-415
METER, COMBINATION
$335.44¢167 722
1
#2
37104-MGZ-D00
KEY, TOP
$0.91¢454
1
#002
37104-MGZ-D00
KEY, TOP
$0.91¢454
1
#3
37130-MGZ-A81
METER, LCD
$271.57¢135 786
1
#003
37130-MGZ-A81
METER, LCD
$271.57¢135 786
1
#4
37215-KZZ-900
RUBBER, METER SETTING
$1.68¢839
1
#004
37215-KZZ-900
RUBBER, METER SETTING
$1.68¢839
1
#005
37610-MGZ-307
CASE Assembly. (UPPER) (COO)
$38.31¢19 153
1
#5
37610-MGZ-307
CASE Assembly. (UPPER) (COO)
$38.31¢19 153
1
#6
37620-MGZ-A01
CASE Assembly. (LOWER)
$41.99¢20 993
1
#006
37620-MGZ-A01
CASE Assembly. (LOWER)
$41.99¢20 993
1
#007
93903-22420
SCREW, TAPPING (3X16)
$1.17¢586
1
#7
93903-22420
SCREW, TAPPING (3X16)
$1.17¢586
1
#008
93913-25380
SCREW, TAPPING (5X14) (PO)
$1.07¢535
1
#8
93913-25380
SCREW, TAPPING (5X14) (PO)
$1.07¢535
1
#9
94103-05700
WASHER, PLAIN (5MM)
$1.12¢558
1
#009
94103-05700
WASHER, PLAIN (5MM)
$1.12¢558
1
