REAR BRAKE MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

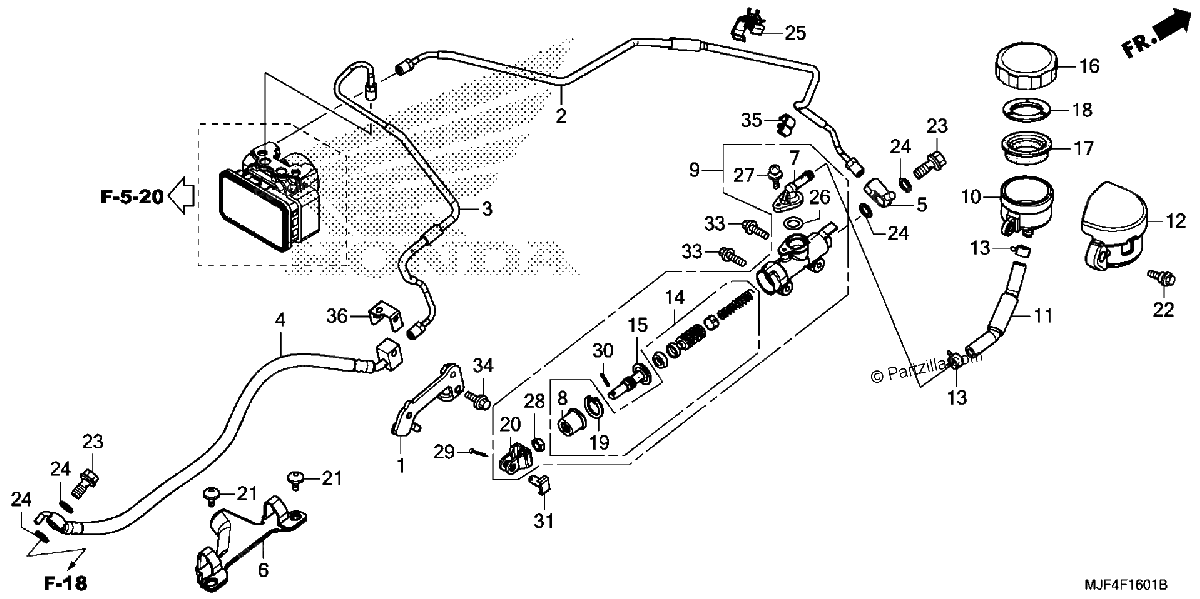

Diagrama de REAR BRAKE MASTER CYLINDER 2

Repuestos

#001
43160-MGS-D70
STAY, RR. BRAKE HOSE
$21.79¢10 894
1
#1
43160-MGS-D70
STAY, RR. BRAKE HOSE
$21.79¢10 894
1
#2
43310-MJF-C10
PIPE A, RR. BRAKE
$46.89¢23 444
1
#002
43310-MJF-C10
PIPE A, RR. BRAKE
$46.89¢23 444
1
#3
43312-MJF-C10
PIPE C, RR. BRAKE
$24.61¢12 306
1
#003
43312-MJF-C10
PIPE C, RR. BRAKE
$24.61¢12 306
1
#004
43313-MJF-A01
HOSE D, RR. BRAKE
$126.25¢63 125
1
#4
43313-MJF-A01
HOSE D, RR. BRAKE
$126.25¢63 125
1
#5
43321-MJF-A01
JOINT, BRAKE PIPE
$46.64¢23 319
1
#005
43321-MJF-A01
JOINT, BRAKE PIPE
$46.64¢23 319
1
#6
43468-MGS-D31
GUIDE, RR. BRAKE HOSE
$21.35¢10 675
1
#006
43468-MGS-D31
GUIDE, RR. BRAKE HOSE
$21.35¢10 675
1
#6
43468-MGS-D30
GUIDE, RR. BRAKE HOSE
$21.35¢10 675
1
#006
43468-MGS-D30
GUIDE, RR. BRAKE HOSE
$21.35¢10 675
1
#007
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
1
#7
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
1
#008
43504-MB2-006
BOOT
$11.74¢5 869
1
#8
43504-MB2-006
BOOT
$11.74¢5 869
1
#9
43510-MJF-305
MASTER CYLINDER SUB-ASSY., RR. (COO)
$282.85¢141 425
1
#009
43510-MJF-305
MASTER CYLINDER SUB-ASSY., RR. (COO)
$282.85¢141 425
1
#009
43510-MJF-A01
MASTER CYLINDER SUB-Assembly., Rear BRAKE (NISSIN)
$282.85¢141 425
1
#10
43511-MR7-016
CUP, OIL
$41.79¢20 894
1
#010
43511-MR7-016
CUP, OIL
$41.79¢20 894
1
#011
43512-MJF-A01
HOSE, RR. BRAKE MASTER CYLINDER
$24.88¢12 438
1
#11
43512-MJF-A01
HOSE, RR. BRAKE MASTER CYLINDER
$24.88¢12 438
1
#12
43513-MJF-A00
COVER, RR. MASTER CYLINDER CUP
$24.46¢12 231
1
#012
43513-MJF-A00
COVER, RR. MASTER CYLINDER CUP
$24.46¢12 231
1
#13
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#013
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#14
43520-MJ6-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.06¢26 531
1
#014
43520-MJ6-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.06¢26 531
1
#015
43530-MV9-006
ROD, PUSH
$45.48¢22 738
1
#15
43530-MV9-006
ROD, PUSH
$45.48¢22 738
1
#016
45513-MEL-D21
CAP, OIL CUP
$21.39¢10 694
1
#16
45513-MEL-D21
CAP, OIL CUP
$21.39¢10 694
1
#17
45520-300-000
DIAPHRAGM
$10.59¢5 294
1
#017
45520-300-000
DIAPHRAGM
$10.59¢5 294
1
#18
45521-MJ6-006
PLATE, DIAPHRAGM
$4.91¢2 456
1
#018
45521-MJ6-006
PLATE, DIAPHRAGM
$4.91¢2 456
1
#019
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#19
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#20
46504-MAH-671
JOINT, BRAKE ROD
$18.40¢9 200
1
#020
46504-MAH-671
JOINT, BRAKE ROD
$18.40¢9 200
1
#21
90101-MJJ-D30
SCREW, SPECIAL (5X14)
$3.83¢1 913
1
#021
90101-MJJ-D30
SCREW, SPECIAL (5X14)
$3.83¢1 913
1
#22
90113-MJF-A00
BOLT, FLANGE (6X25)
$5.70¢2 850
1
#022
90113-MJF-A00
BOLT, FLANGE (6X25)
$5.70¢2 850
1
#023
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#23
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#24
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#024
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#25
90661-MEW-921
CLAMP, BRAKE PIPE (7.0X2)
$3.65¢1 825
1
#025
90661-MEW-921
CLAMP, BRAKE PIPE (7.0X2)
$3.65¢1 825
1
#026
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#26
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#027
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#27
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#027
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#27
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#28
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#028
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#29
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#029
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#030
94305-20102
PIN, SPRING (2X10)
$1.13¢563
1
#30
94305-20102
PIN, SPRING (2X10)
$1.13¢563
1
#31
95015-54000
PIN D, JOINT
$5.15¢2 575
1
#031
95015-54000
PIN D, JOINT
$5.15¢2 575
1
#32
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#032
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#33
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#033
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#34
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#034
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#035
11152-KS4-003
CLAMP, PIPE
$8.64¢4 319
1
#35
11152-KS4-003
CLAMP, PIPE
$8.64¢4 319
1
#36
38515-MJF-A00
STAY, SENSOR WIRE
$5.39¢2 694
1
#036
38515-MJF-A00
STAY, SENSOR WIRE
$5.39¢2 694
1
