REAR COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

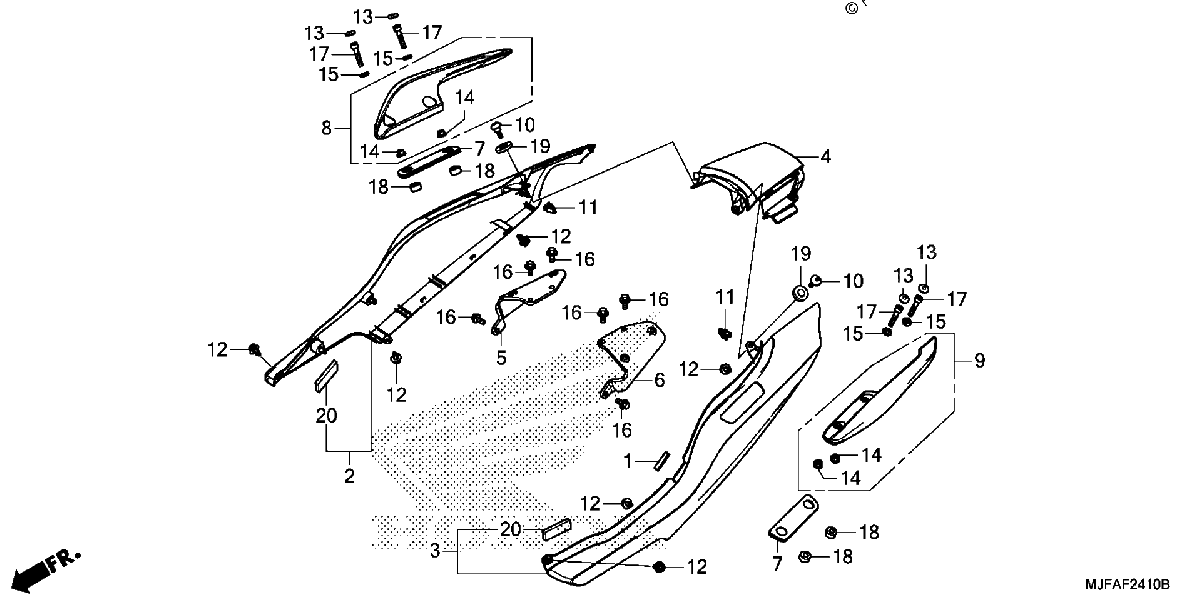

Diagrama de REAR COWL

Repuestos

#1
17521-KSV-J00
TRIM A, FUEL TANK
$4.05¢2 024
1
#001
17521-KSV-J00
TRIM A, FUEL TANK
$4.05¢2 024
1
#2
77240-MJF-A00ZA
COWL Assembly., Right Rear. R345C (CANDY ALIZARIN RED)
$317.25¢158 625
1
#002
77240-MJF-A00ZA
COWL Assembly., Right Rear. R345C (CANDY ALIZARIN RED)
$317.25¢158 625
1
#3
77250-MJF-A00ZA
COWL Assembly., L Rear. R345C (CANDY ALIZARIN RED)
$317.25¢158 625
1
#003
77250-MJF-A00ZA
COWL Assembly., L Rear. R345C (CANDY ALIZARIN RED)
$317.25¢158 625
1
#4
77221-MJF-A00ZA
COWL, Rear CENTER R345C (CANDY ALIZARIN RED)
$104.67¢52 336
1
#004
77221-MJF-A00ZA
COWL, Rear CENTER R345C (CANDY ALIZARIN RED)
$104.67¢52 336
1
#5
81305-MJF-A00
STAY, R. (INNER)
$109.76¢54 878
1
#005
81305-MJF-A00
STAY, R. (INNER)
$109.76¢54 878
1
#6
81306-MJF-A00
STAY, Left (INNER)
$109.76¢54 878
1
#006
81306-MJF-A00
STAY, Left (INNER)
$109.76¢54 878
1
#007
81316-MJF-A00
RUBBER, Rear COWL
$17.48¢8 740
1
#7
81316-MJF-A00
RUBBER, Rear COWL
$17.48¢8 740
1
#008
81805-MJF-A30
GRIP, Right Rear.
$155.55¢77 774
1
#8
81805-MJF-A30
GRIP, Right Rear.
$155.55¢77 774
1
#009
81806-MJF-A30
GRIP, L. RR.
$155.55¢77 774
1
#9
81806-MJF-A30
GRIP, L. RR.
$155.55¢77 774
1
#10
90103-MGE-000
SCREW, SPECIAL (5X17)
$2.24¢1 121
1
#010
90103-MGE-000
SCREW, SPECIAL (5X17)
$2.24¢1 121
1
#11
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$0.93¢466
1
#011
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$0.93¢466
1
#12
90683-MBW-003
CLIP, BODY
$2.31¢1 156
1
#012
90683-MBW-003
CLIP, BODY
$2.31¢1 156
1
#13
91456-MCW-D01
CAP, SOCKET BOLT (8MM)
$3.13¢1 564
1
#013
91456-MCW-D01
CAP, SOCKET BOLT (8MM)
$3.13¢1 564
1
#14
91501-MGS-D30
COLLAR
$3.60¢1 800
1
#014
91501-MGS-D30
COLLAR
$3.60¢1 800
1
#015
94101-08700
WASHER, PLAIN (8MM)
$1.17¢586
1
#15
94101-08700
WASHER, PLAIN (8MM)
$1.17¢586
1
#16
95701-08016-07
BOLT, FLANGE (8X16)
$1.98¢989
1
#016
95701-08016-07
BOLT, FLANGE (8X16)
$1.98¢989
1
#017
96700-08035-07
BOLT, SOCKET (8X35)
$2.53¢1 265
1
#17
96700-08035-07
BOLT, SOCKET (8X35)
$2.53¢1 265
1
#18
90503-MJF-A00
COLLAR (8X10.5)
$6.87¢3 433
1
#018
90503-MJF-A00
COLLAR (8X10.5)
$6.87¢3 433
1
#019
61108-MCA-000
WASHER, RUBBER
$1.81¢903
1
#19
61108-MCA-000
WASHER, RUBBER
$1.81¢903
1
#20
16911-MAH-300
PROTECTOR
$7.69¢3 847
1
#020
16911-MAH-300
PROTECTOR
$7.69¢3 847
1
