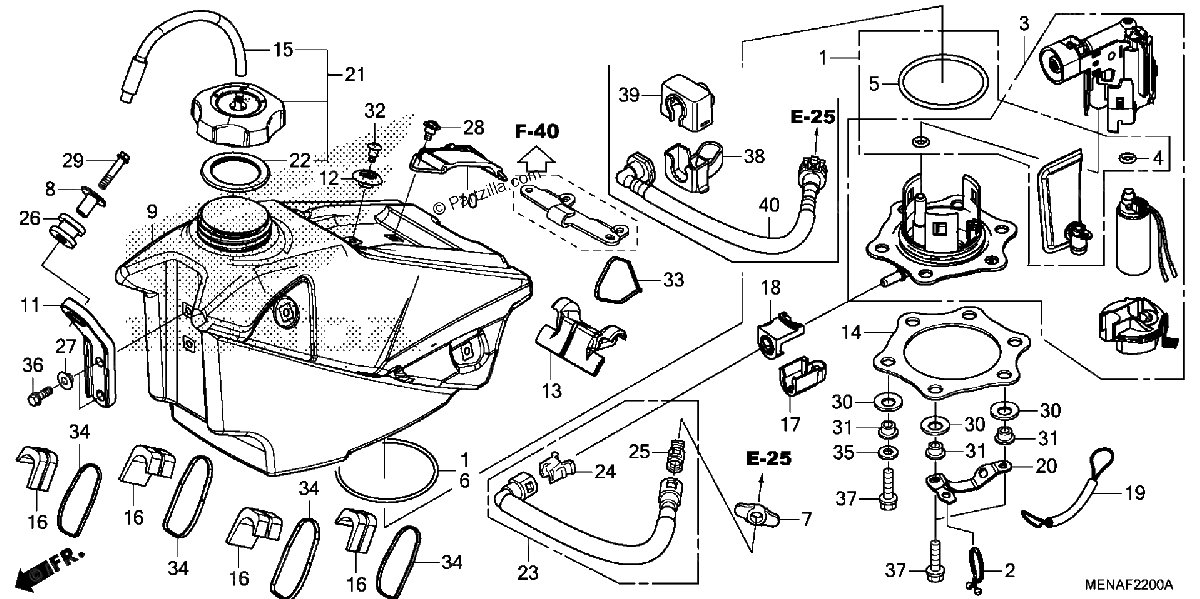

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FILTER KIT, FUEL
$102.36¢51 181
#2
CLAMP, FUEL HOSE (18.5MM)
$14.26¢7 131
#2
CLIP, BREATHER TUBE PROTECTOR
$12.69¢6 344
#3
PUMP ASSY., FUEL (MSDS)
$426.11¢213 056
#4
O-RING (8.6X1.9)
$0.71¢356
#5
O-RING (3.7X73.9)
$14.15¢7 075
#6
O-RING (2.4X88.4)
$12.96¢6 481
#7
RUBBER, FUEL JOINT
$2.99¢1 494
#8
COLLAR, TANK SETTING
$10.55¢5 275
#9
TANK, FUEL
$1174.96¢587 481
#10
BAND, Rear TANK
$18.94¢9 469
#11
STAY, FR. FUEL TANK
$10.04¢5 019
#12
COLLAR, FR. SEAT
$7.04¢3 519
#13
RUBBER, FUEL TANK MOUNTING
$20.20¢10 100
#14
PLATE, FUEL PUMP
$23.81¢11 906
#15
TUBE, FUEL CAP BREATHER
$7.79¢3 894
#16
RUBBER, TANK SIDE MOUNTING
$7.99¢3 994
#17
COVER, FUEL CONNECTOR
$9.04¢4 519
#18
RUBBER, FUEL CONNECTOR
$5.78¢2 888
#19
CABLE, FUEL TANK STOPPER
$9.94¢4 969
#20
GUIDE, STOPPER CABLE
$10.84¢5 419
#21
CAP ASSY., FUEL TANK
$117.36¢58 681
#22
GASKET, FUEL CAP
$5.84¢2 919
#23
HOSE ASSY., FUEL FEED
$100.02¢50 012
#24
RETAINER (BLUE GREEN) (TOKAI)
$4.01¢2 006
#25
RETAINER (GREEN) (TOKAI)
$4.01¢2 006
#26
RUBBER, MUFFLER
$4.70¢2 350
#27
COLLAR
$3.01¢1 506
#28
SCREW (5X12)
$2.15¢1 075
#29
BOLT (6X30)
$3.38¢1 688
#30
WASHER, CONICAL SPRING FUEL PUMP
$3.43¢1 713
#31
COLLAR, FUEL PUMP
$5.66¢2 831
#32
SCREW, SPECIAL (5MM)
$3.65¢1 825
#33
TY-RAP, CABLE (240MM)
$2.54¢1 269
#34
TY-RAP, CABLE
$3.05¢1 525
#35
WASHER, PLAIN (6MM)
$0.84¢419
#35
WASHER, PLAIN (6MM)
$0.84¢419
#35
WASHER, PLAIN (6MM)
$0.84¢419
#36
BOLT, FLANGE (6X16)
$1.35¢675
#37
BOLT, FLANGE (6X20)
$1.60¢800
