HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

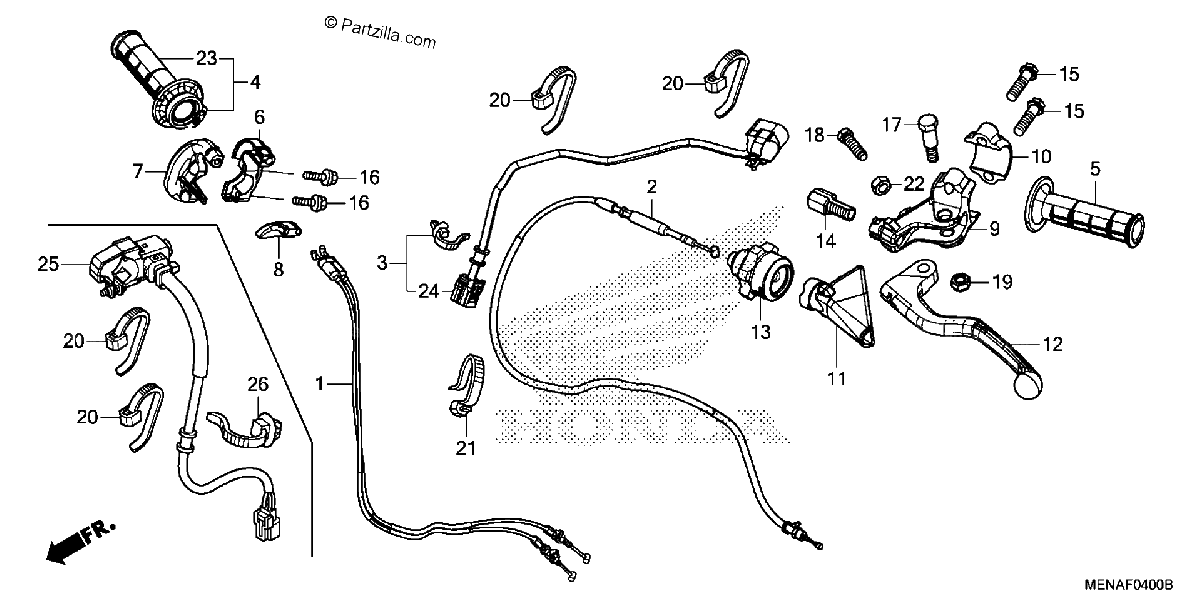

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-MEN-A81
CABLE, THROTTLE
$54.91¢27 456
1
#2
22870-MEN-A70
CABLE, CLUTCH
$51.57¢25 787
1
#3
35130-MEN-A71
SWITCH ASSY., ENGINE STOP INDICATOR
$129.04¢64 519
1
#4
53140-MEN-305
GRIP, THROTTLE (COO)
$26.16¢13 081
1
#5
53166-MEN-305
GRIP, L. HANDLE (COO)
$12.00¢6 000
1
#6
53167-MEB-672
HOUSING, THROTTLE (UPPER)
$25.00¢12 500
1
#7
53168-KRN-A90
HOUSING, THROTTLE (LOWER)
$34.24¢17 119
1
#7
53168-MEB-671
HOUSING, THROTTLE (LOWER)
$34.24¢17 119
1
#8
53169-MEB-670
SLIDER, THROTTLE CABLE
$5.25¢2 625
1
#9
53172-KSK-670
BRACKET, L. HANDLE LEVER
$46.56¢23 281
1
#10
53174-KCE-670
HOLDER, L. LEVER BRACKET
$15.63¢7 813
1
#11
53177-KSK-670
COVER, L. HANDLE LEVER
$11.50¢5 750
1
#12
53178-MEN-305
LEVER, L. HANDLEBAR (COO)
$28.79¢14 394
1
#13
53179-MEN-671
DIAL, CLUTCH CABLE ADJUSTING
$13.08¢6 538
1
#14
53192-MEN-670
BOLT, WIRE ADJUSTING
$9.60¢4 800
1
#15
90102-MEN-A60
BOLT (6X22)
$3.38¢1 688
1
#16
90106-MEN-A60
BOLT (6X20)
$2.99¢1 494
1
#17
90113-429-770
BOLT, HANDLE LEVER PIVOT
$7.21¢3 606
1
#18
90118-MEN-670
BOLT, LEVER ADJUSTING
$4.71¢2 356
1
#19
90301-782-000
NUT, U (6MM)
$1.99¢994
1
#20
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#21
90650-MA6-720
BAND, WIRE HARNESS
$5.02¢2 512
1
#22
94001-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#22
94001-06200-0S
NUT, HEX. (6MM)
$1.68¢838
1
#23
53165-MEN-305
GRIP, R. HANDLE (COO)
$12.96¢6 481
1
#23
53165-KRN-A30
GRIP, R. HANDLE
$12.96¢6 481
1
