FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

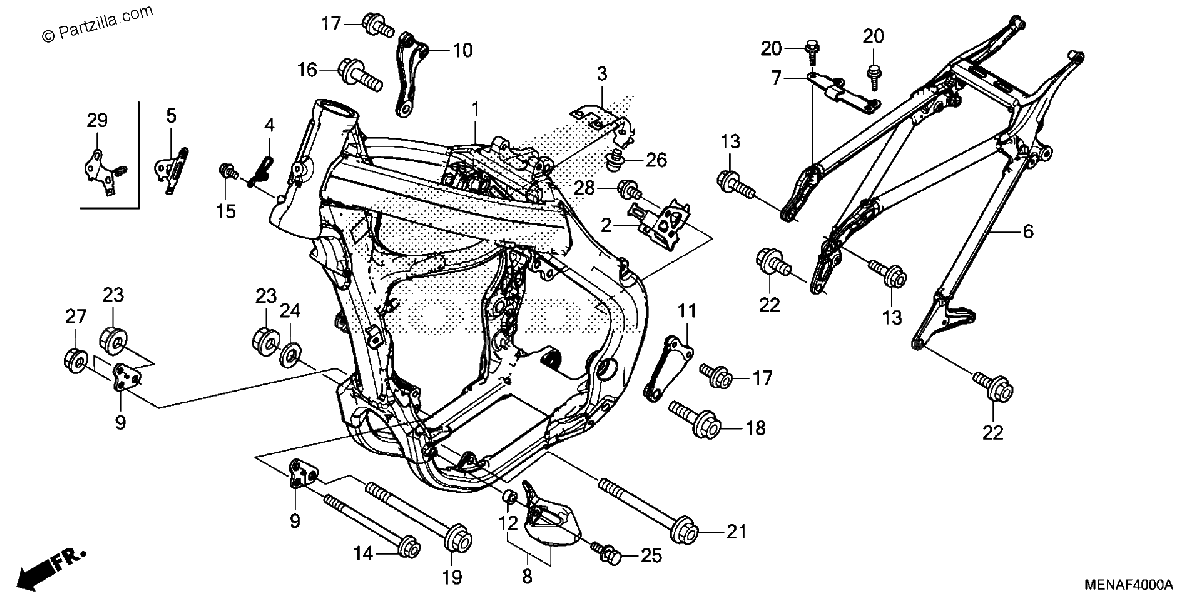

Diagrama de FRAME

Repuestos

#1
50100-MEN-A70
FRAME
$4080.77¢2 040 387
1
#1
50100-MEN-A71
FRAME
$3740.20¢1 870 100
1
#2
50124-MEN-A70
BRACKET, ECU
$10.76¢5 381
1
#3
50127-MEN-A70
STAY, STOPPER CABLE
$7.31¢3 656
1
#4
50128-MEN-A70
GUIDE, CABLE
$17.54¢8 769
1
#5
50184-MEN-A70
STAY, CONNECTOR
$6.96¢3 481
1
#6
50200-MEN-A70
FRAME, RR.
$1142.25¢571 125
1
#7
50217-MEN-A70
PLATE, SEAT STOPPER
$9.81¢4 906
1
#8
50360-MEN-A30
GUARD, L. ENGINE
$20.23¢10 113
1
#9
50405-MEN-A30
PLATE, FR. ENGINE HANGER
$11.50¢5 750
1
#10
50407-MEN-A70
PLATE, R. HEAD HANGER
$106.13¢53 063
1
#11
50408-MEN-A70
PLATE, L. HEAD HANGER
$101.58¢50 788
1
#12
80123-MA1-640
COLLAR, SPLASH GUARD
$2.64¢1 319
1
#13
90101-MEN-A10
BOLT (8X28)
$3.65¢1 825
1
#14
90101-MEN-A30
BOLT, FLANGE (8X121)
$7.81¢3 906
1
#15
90101-MEN-A60
BOLT (6X12)
$2.82¢1 412
1
#16
90102-MEN-A30
BOLT, FLANGE (10X30)
$4.41¢2 206
1
#17
90103-MEB-670
BOLT, FLANGE (8X18)
$2.52¢1 263
1
#18
90105-MEN-A30
BOLT, FLANGE (10X37)
$4.41¢2 206
1
#19
90106-MEN-A30
BOLT, FLANGE (10X123)
$7.48¢3 738
1
#20
90106-MJ0-000
BOLT, FLANGE (6X16)
$3.65¢1 825
1
#21
90111-MEN-A70
BOLT, FLANGE (10X134)
$8.61¢4 306
1
#22
90122-MEN-730
BOLT (10X24)
$2.99¢1 494
1
#23
90302-KZ3-J40
NUT, FLANGE (10MM)
$3.50¢1 750
1
#24
90410-HC4-000
WASHER (10MM)
$4.63¢2 313
1
#25
93404-06018-00
BOLT-WASHER (6X18)
$1.38¢688
1
#26
93891-04016-08
SCREW-WASHER (4X16)
$1.47¢737
1
#27
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#28
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
