FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

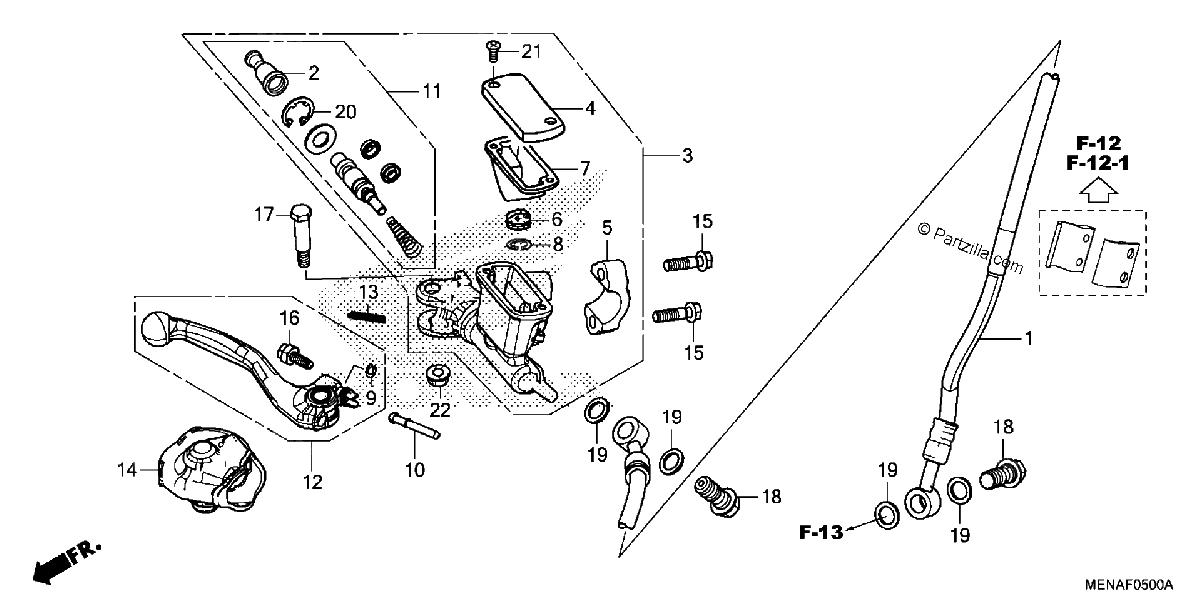

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
45125-KRN-A31
HOSE, FR. BRAKE
$129.19¢64 596
1
#2
45504-MEN-J01
BOOT
$10.90¢5 451
1
#3
45510-MEN-305
MASTER CYLINDER SUB-ASSY., FR. (COO)
$251.09¢125 545
1
#4
45513-KCE-671
CAP, MASTER CYLINDER
$24.58¢12 288
1
#5
45517-GW0-751
HOLDER, MASTER CYLINDER
$13.25¢6 624
1
#6
45518-MEN-J01
SEPARATOR
$8.50¢4 249
1
#7
45520-KA3-731
DIAPHRAGM
$14.49¢7 245
1
#8
45523-KA3-731
RING
$3.36¢1 679
1
#9
45523-MEB-003
RING
$1.12¢558
1
#10
45525-MEN-J01
ROD, PUSH
$8.64¢4 318
1
#11
45530-MEN-J01
PISTON SET, MASTER CYLINDER
$42.38¢21 189
1
#12
53171-MEN-305
LEVER, R. HANDLEBAR (COO)
$40.59¢20 297
1
#13
53174-KN5-006
SPRING, BRAKE LEVER
$3.36¢1 679
1
#14
53176-MEN-J01
COVER, R. HANDLE LEVER
$9.06¢4 531
1
#15
90102-MEN-A60
BOLT (6X22)
$3.10¢1 553
1
#16
90111-MEB-003
BOLT SET, ADJUSTING
$4.58¢2 289
1
#17
90114-MEN-J01
BOLT, HANDLE LEVER
$4.55¢2 277
1
#18
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#19
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#20
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#21
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#21
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
