HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

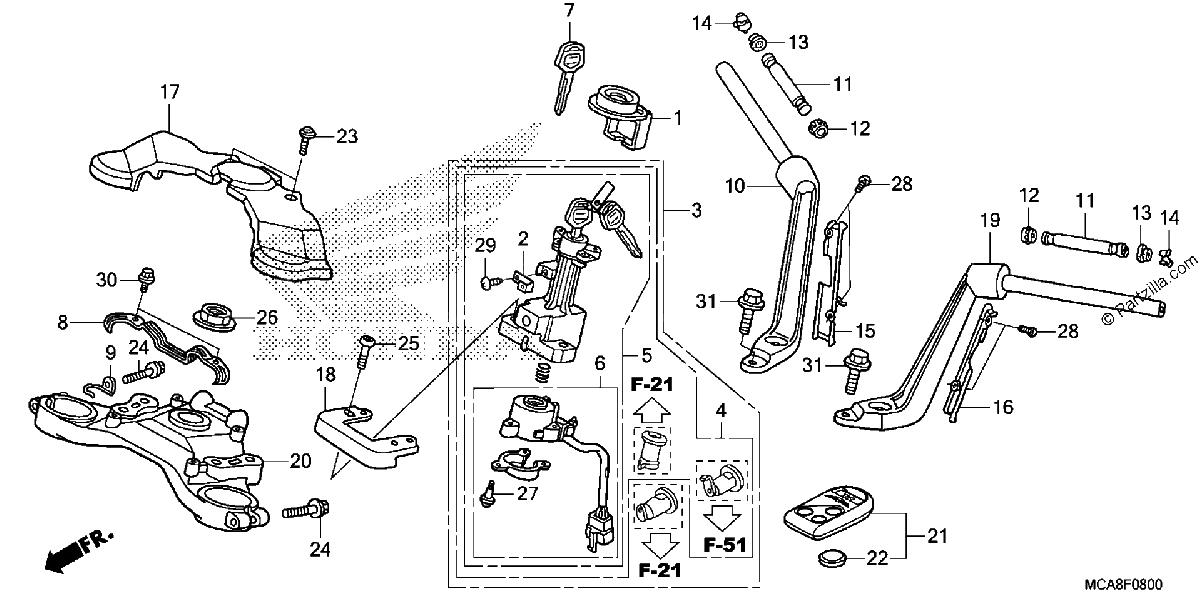

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
30430-MCA-671
COVER, COMBINATION SWITCH TOP
$102.32¢51 158
1
#1
30430-MCA-672
COVER, COMBINATION SWITCH TOP
$102.32¢51 158
1
#001
30430-MCA-672
COVER, COMBINATION SWITCH TOP
$102.32¢51 158
1
#002
32127-MCA-A61
STAY, CONNECTOR
$3.66¢1 829
1
#2
32127-MCA-A61
STAY, CONNECTOR
$3.66¢1 829
1
#3
35010-MCA-S41
LOCK SET
$327.57¢163 783
1
#3
35010-MCA-S51
LOCK SET
$347.01¢173 506
1
#003
35010-MCA-S51
LOCK SET
$347.01¢173 506
1
#4
35010-MCA-S81
LOCK SET
$339.34¢169 671
1
#005
35100-MCA-S41
SWITCH ASSY., COMBINATION LOCK
$324.04¢162 018
1
#5
35100-MCA-S41
SWITCH ASSY., COMBINATION LOCK
$324.04¢162 018
1
#006
35101-MCA-S41
BASE, CONTACT
$64.58¢32 292
1
#6
35101-MCA-S41
BASE, CONTACT
$64.58¢32 292
1
#7
35121-MCA-841
KEY, BLANK
$54.56¢27 278
1
#007
35121-MCA-841
KEY, BLANK
$54.56¢27 278
1
#8
45163-MCA-000
GUIDE, FR. BRAKE HOSE
$49.28¢24 639
1
#008
45163-MCA-000
GUIDE, FR. BRAKE HOSE
$49.28¢24 639
1
#009
50152-MCA-000
GUIDE, THROTTLE CABLE
$5.40¢2 702
1
#9
50152-MCA-000
GUIDE, THROTTLE CABLE
$5.40¢2 702
1
#010
53100-MCA-305
HANDLEBAR, R. (COO)
$432.25¢216 125
1
#10
53100-MCA-305
HANDLEBAR, R. (COO)
$432.25¢216 125
1
#010
53100-MCA-A20
HANDLEBAR Assembly., Right.
$432.25¢216 125
1
#011
53104-MCA-A60
WEIGHT B, HANDLE
$20.44¢10 218
1
#11
53104-MCA-A60
WEIGHT B, HANDLE
$20.44¢10 218
1
#12
53106-MJ0-000
RUBBER A, HANDLE WEIGHT
$4.38¢2 191
1
#012
53106-MJ0-000
RUBBER A, HANDLE WEIGHT
$4.38¢2 191
1
#013
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.21¢2 105
1
#13
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.21¢2 105
1
#014
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$5.73¢2 864
1
#14
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$5.73¢2 864
1
#015
53110-MCA-A20
COVER, R. HANDLE
$22.97¢11 483
1
#15
53110-MCA-A20
COVER, R. HANDLE
$22.97¢11 483
1
#16
53120-MCA-A20
COVER, L. HANDLE
$22.97¢11 483
1
#016
53120-MCA-A20
COVER, L. HANDLE
$22.97¢11 483
1
#17
53130-MCA-000
COVER, HANDLE CENTER
$49.78¢24 892
1
#017
53130-MCA-000
COVER, HANDLE CENTER
$49.78¢24 892
1
#18
53132-MCA-640
GUARD B, COMBINATION SWITCH
$6.44¢3 220
1
#018
53132-MCA-640
GUARD B, COMBINATION SWITCH
$6.44¢3 220
1
#19
53150-MCA-305
HANDLEBAR, L. (COO)
$432.25¢216 125
1
#019
53150-MCA-305
HANDLEBAR, L. (COO)
$432.25¢216 125
1
#020
53230-MJG-670
BRIDGE, FORK TOP
$392.30¢196 150
1
#20
53230-MJG-670
BRIDGE, FORK TOP
$392.30¢196 150
1
#021
72147-MCA-S41
TRANSMITTER ASSY., KEYLESS (MSDS)
$208.51¢104 253
1
#21
72147-MCA-S41
TRANSMITTER ASSY., KEYLESS (MSDS)
$208.51¢104 253
1
#021
72147-MJK-N21
TRANSMITTER ASSY., KEYLESS (MSDS)
No Disponible
1
#021
72147-MJK-N22
TRANSMITTER Assembly., KEYLESS (FOR MEXICO ONLY) (MSDS)
$208.51¢104 253
1
#22
72148-S84-A10
BATTERY (CR2025) (MSDS)
$4.31¢2 156
1
#022
72148-S84-A10
BATTERY (CR2025) (MSDS)
$4.31¢2 156
1
#23
90101-GE0-000
SCREW, HINGE PATCH
$3.36¢1 679
1
#023
90101-GE0-000
SCREW, HINGE PATCH
$3.36¢1 679
1
#024
90101-MCA-A20
BOLT, FLANGE (8X45)
$2.83¢1 414
1
#24
90101-MCA-A20
BOLT, FLANGE (8X45)
$2.83¢1 414
1
#025
90108-MCA-000
BOLT, ONE-WAY (8X34)
$4.43¢2 214
1
#25
90108-MCA-000
BOLT, ONE-WAY (8X34)
$4.43¢2 214
1
#026
90304-MJ4-670
NUT, STEERING STEM
$16.47¢8 234
1
#26
90304-MJ4-670
NUT, STEERING STEM
$16.47¢8 234
1
#27
91059-MG9-681
SCREW, TAPPING (3X16)
$2.83¢1 414
1
#027
91059-MG9-681
SCREW, TAPPING (3X16)
$2.83¢1 414
1
#028
93500-05010-1G
SCREW, PAN (5X10)
$1.07¢535
1
#028
93500-05010-0G
SCREW, PAN (5X10)
$1.07¢535
1
#28
93500-05010-1G
SCREW, PAN (5X10)
$1.07¢535
1
#28
93500-05010-0G
SCREW, PAN (5X10)
$1.07¢535
1
#029
93901-32120
SCREW, TAPPING (3X8)
$0.93¢466
1
#29
93901-32120
SCREW, TAPPING (3X8)
$0.93¢466
1
#030
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#30
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#31
96400-10035-00
BOLT, FLANGE (10X35)
$2.66¢1 328
1
#031
96400-10035-00
BOLT, FLANGE (10X35)
$2.66¢1 328
1
