RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

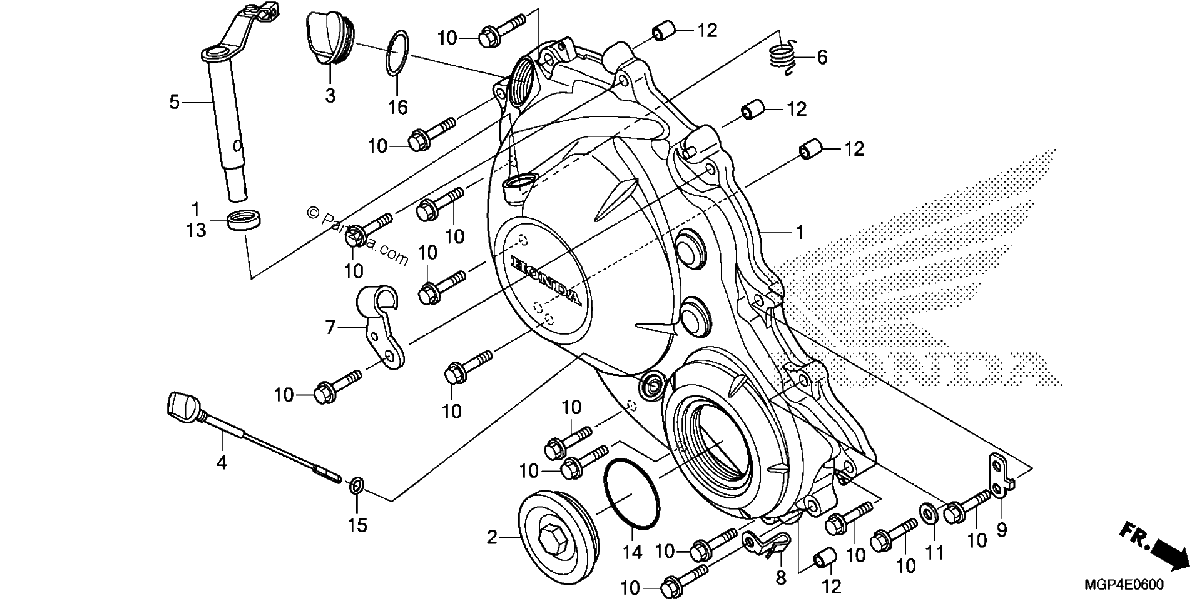

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#1
11330-MGP-000
COVER, R. CRANKCASE
$351.37¢175 686
1
#001
11330-MGP-000
COVER, R. CRANKCASE
$351.37¢175 686
1
#2
11332-MFL-670
CAP (45MM)
$24.51¢12 253
1
#002
11332-MFL-670
CAP (45MM)
$24.51¢12 253
1
#3
15611-KA4-710
CAP, OIL FILLER
$15.38¢7 688
1
#003
15611-KA4-710
CAP, OIL FILLER
$15.38¢7 688
1
#4
15650-MFL-000
DIPSTICK, OIL
$21.17¢10 586
1
#004
15650-MFL-000
DIPSTICK, OIL
$21.17¢10 586
1
#005
22810-MFL-950
LEVER, CLUTCH
$68.79¢34 396
1
#5
22810-MFL-950
LEVER, CLUTCH
$68.79¢34 396
1
#6
22815-MFL-000
SPRING, CLUTCH LEVER
$3.36¢1 679
1
#006
22815-MFL-000
SPRING, CLUTCH LEVER
$3.36¢1 679
1
#7
22821-MGP-000
RECEIVER, CLUTCH CABLE
$7.16¢3 582
1
#007
22821-MGP-000
RECEIVER, CLUTCH CABLE
$7.16¢3 582
1
#008
32114-MFG-D00
GUIDE, OIL PRESSURE SWITCH WIRE
$7.76¢3 881
1
#8
32114-MFG-D00
GUIDE, OIL PRESSURE SWITCH WIRE
$7.76¢3 881
1
#009
32157-MFJ-D00
STAY, HARNESS CLIP
$3.69¢1 846
1
#9
32157-MFJ-D00
STAY, HARNESS CLIP
$3.69¢1 846
1
#10
90006-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.42¢1 208
1
#010
90006-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.42¢1 208
1
#11
90442-035-000
WASHER, SEALING (6MM)
$2.62¢1 311
1
#011
90442-035-000
WASHER, SEALING (6MM)
$2.62¢1 311
1
#12
90701-MV9-670
PIN, DOWEL (10X16)
$4.80¢2 398
1
#012
90701-MV9-670
PIN, DOWEL (10X16)
$4.80¢2 398
1
#013
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$5.63¢2 818
1
#13
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$5.63¢2 818
1
#014
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.38¢2 191
1
#14
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.38¢2 191
1
#15
91303-MJ0-003
O-RING (6.3X2.3) (ARAI)
$4.52¢2 260
1
#015
91303-MJ0-003
O-RING (6.3X2.3) (ARAI)
$4.52¢2 260
1
#016
91307-KF0-003
O-RING (18X3) (ARAI)
$3.36¢1 679
1
#16
91307-KF0-003
O-RING (18X3) (ARAI)
$3.36¢1 679
1
