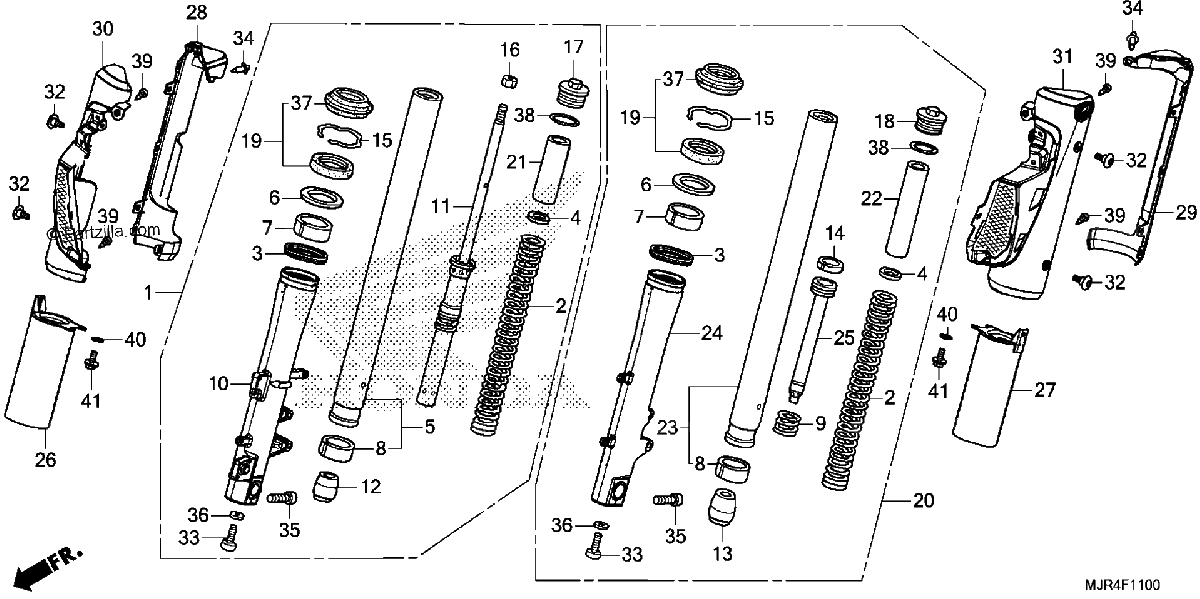

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FORK ASSY., R. FR. (COO) (SHOWA)
$1190.07¢595 033
#2
SPRING, FR. FORK
$64.63¢32 315
#3
GUIDE, CASE
$5.36¢2 680
#4
SEAT, SPRING
$6.95¢3 473
#5
PIPE, R. FR. FORK
$480.49¢240 246
#6
RING, BACK-UP
$10.14¢5 071
#7
BUSH, GUIDE
$23.16¢11 580
#8
BUSH, SLIDER
$12.32¢6 158
#9
SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)
$16.76¢8 378
#10
CASE, R. FR. (LOWER)
$481.53¢240 764
#11
DAMPER, FR.
$479.57¢239 786
#12
PIECE, OIL LOCK
$11.33¢5 664
#13
PIECE, OIL LOCK
$17.61¢8 803
#14
RING, PISTON
$8.49¢4 244
#15
RING, OIL SEAL STOPPER
$5.70¢2 852
#16
NUT, HEX. (10MM)
$3.43¢1 713
#17
BOLT, FR. FORK
$34.56¢17 279
#18
BOLT, FR. FORK
$19.10¢9 551
#19
SEAL SET, FR. FORK
$32.06¢16 031
#20
FORK ASSY., L. FR. (COO) (SHOWA)
No Disponible
#21
COLLAR B, SPRING
$5.78¢2 892
#22
COLLAR B, SPRING
$84.63¢42 314
#23
PIPE, L. FR. FORK
$480.49¢240 246
#24
CASE, L. FR. (LOWER)
$481.53¢240 764
#25
PIPE, SEAT
$66.53¢33 264
#26
COVER, R. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$98.04¢49 019
#27
COVER, L. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$102.46¢51 232
#28
COVER, R. FR. FORK *NHA86M* (RR) (MAT BALLISTIC BLACK)
$42.57¢21 287
#29
COVER, L. FR. FORK *NHA86M* (RR) (MAT BALLISTIC BLACK)
$42.57¢21 287
#30
COVER, R. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$142.24¢71 122
#31
COVER, L. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$142.24¢71 122
#32
SCREW, SPECIAL (5X15) (SUS)
$5.78¢2 892
#33
BOLT, SOCKET (8X27)
$5.72¢2 858
#34
RIVET, PUSH
$1.64¢822
#35
BOLT, SOCKET (8X32)
$2.59¢1 294
#36
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
#37
DUST SEAL
$13.75¢6 877
#38
O-RING (37.2X2.4) (SHOWA)
$3.36¢1 679
#39
SCREW, TAPPING (4X12)
$1.07¢535
#40
WASHER, PLAIN (6MM)
$1.12¢558
#41
BOLT, FLANGE (6X12)
$1.92¢960
