FRONT COVER TRANSMISSION COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

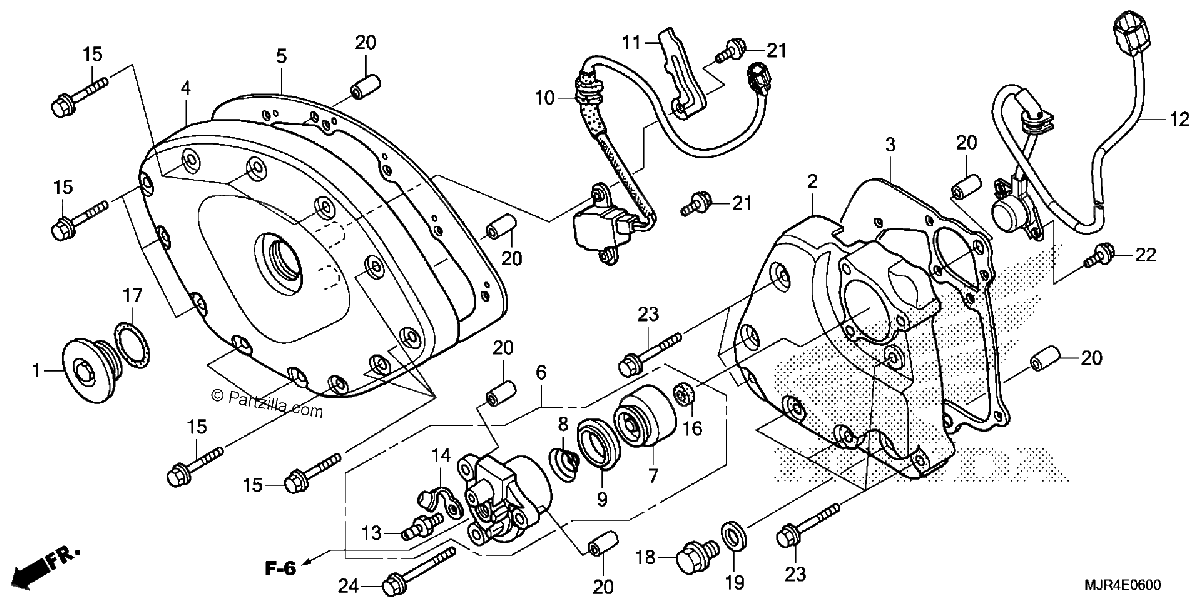

Diagrama de FRONT COVER TRANSMISSION COVER

Repuestos

#1
11332-MER-D00
CAP (45MM)
$20.34¢10 169
1
#2
11361-MCA-S40
COVER, TRANSMISSION
$178.81¢89 406
1
#3
11391-MCA-010
GASKET, TRANSMISSION COVER
$11.30¢5 650
1
#4
11511-MJG-670
COVER, FR.
$384.35¢192 175
1
#5
11524-MCA-010
GASKET, FR. COVER
$17.59¢8 794
1
#6
22860-MCA-000
CYLINDER ASSY., CLUTCH SLAVE
$170.35¢85 175
1
#7
22863-MJ8-003
PISTON, SLAVE CYLINDER
$30.94¢15 469
1
#8
22864-MB0-003
SPRING, SLAVE CYLINDER
$7.57¢3 787
1
#9
22865-MJ8-003
CUP, SLAVE CYLINDER
$13.35¢6 675
1
#10
30300-MJR-671
GENERATOR ASSY., PULSE
$96.64¢48 319
1
#11
32906-MCA-A00
CLIP, PULSER WIRE
$6.38¢3 188
1
#12
35759-MJR-671
SWITCH ASSY., CHANGE
$132.79¢66 394
1
#13
43352-MBB-006
SCREW, BLEEDER
$5.71¢2 856
1
#14
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#15
90007-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.36¢1 181
1
#16
91209-MB0-003
OIL SEAL (8X18X5)
$4.91¢2 456
1
#17
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.76¢2 381
1
#18
92800-14000
BOLT, DRAIN PLUG (14MM)
$4.33¢2 163
1
#19
94109-14000
WASHER, DRAIN PLUG (14MM)
$0.80¢400
1
#20
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#21
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#22
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#23
95701-06035-00
BOLT, FLANGE (6X35)
$2.41¢1 206
1
#24
95701-06045-00
BOLT, FLANGE (6X45)
$2.79¢1 394
1
#24
95701-06045-07
BOLT, FLANGE (6X45)
$2.79¢1 394
1
