TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

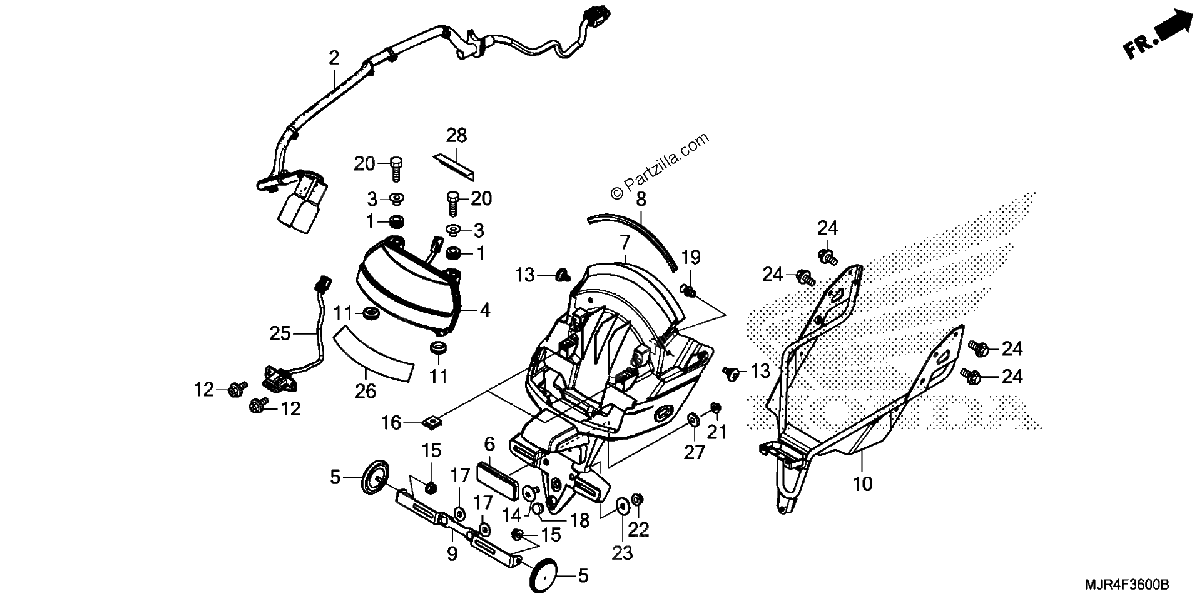

Diagrama de TAILLIGHT

Repuestos

#1
19639-GBC-000
RUBBER, MOUNTING
$1.66¢828
1
#2
32120-MJR-670
SUB-HARNESS, RR.
$74.09¢37 047
1
#3
33614-MEC-650
COLLAR C, RR. TURN SIGNAL
$3.04¢1 518
1
#4
33701-MJR-671
TAILLIGHT ASSY.
$353.97¢176 985
1
#5
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$14.26¢7 130
1
#6
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
1
#7
80101-MJR-670
FENDER A, RR.
$37.56¢18 779
1
#8
80104-MFE-670
MOUL, RR. FENDER COVER
$10.06¢5 031
1
#9
80104-MJR-670
STAY, REFLECTOR
$27.83¢13 915
1
#10
80150-MJR-670
STAY A, RR. FENDER
$305.04¢152 519
1
#11
83551-MB9-000
GROMMET
$3.04¢1 518
1
#12
90008-ZM7-000
BOLT (4X10)
$2.28¢1 138
1
#13
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.07¢1 535
1
#14
90124-MY6-670
SCREW, PAN (6X13)
$3.09¢1 547
1
#15
90301-MG3-000
NUT, U (6MM)
$7.72¢3 858
1
#16
90320-GC3-000
NUT, SPRING (5MM)
$2.74¢1 368
1
#17
90506-425-000
WASHER, Rear COVER
$3.36¢1 679
1
#18
90572-KV3-300
RUBBER, SEPARATOR MOUNTING
$4.78¢2 392
1
#19
91549-MW0-790ZA
CLIP, PANEL FIXING *NH1* (BLACK)
$4.71¢2 357
1
#20
90005-896-000
BOLT, FLANGE (5X16)
$2.59¢1 294
1
#21
90301-MG8-000
NUT, FLANGE (5MM) (FUSE RASHI)
$5.52¢2 760
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#23
94103-06000
WASHER, PLAIN (6MM)
$1.17¢586
1
#24
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#25
33720-MJR-671
LIGHT ASSY., LICENSE
$111.57¢55 787
1
#26
17554-MFJ-D10
FILM A, PROTECTOR
$13.10¢6 549
1
#27
94103-05800
WASHER, PLAIN (5MM)
$1.17¢586
1
#28
50183-MJR-670
FILM, PROTECTOR
$5.11¢2 553
1
