CLUTCH MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

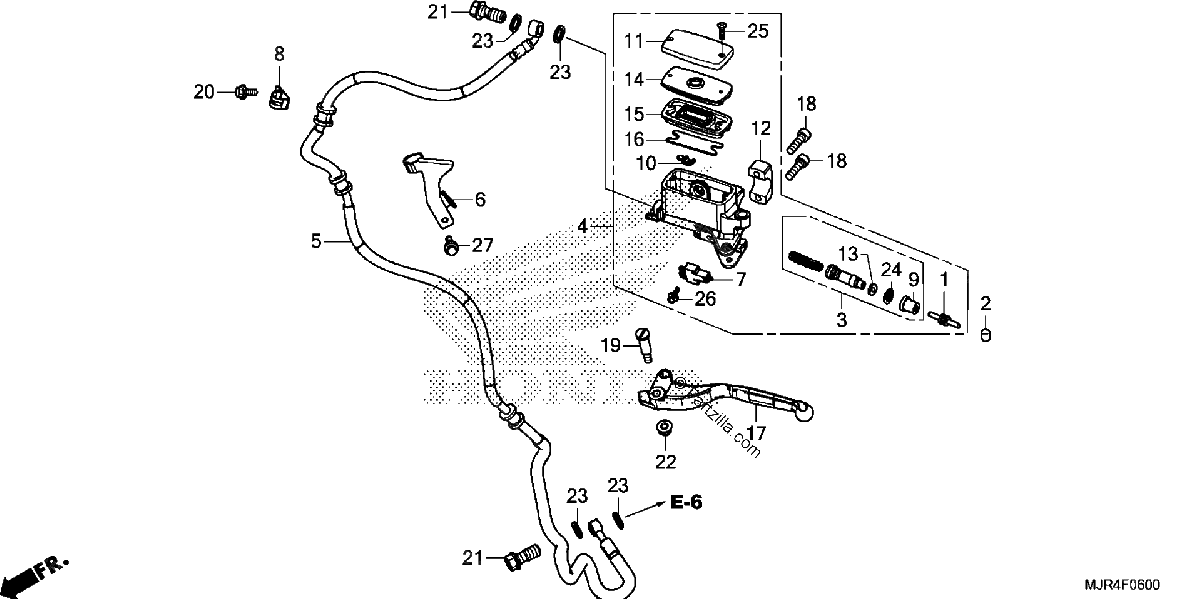

Diagrama de CLUTCH MASTER CYLINDER

Repuestos

#1
22884-MB0-006
ROD, PUSH
$22.08¢11 040
1
#2
22885-MB0-006
BUSH
$13.94¢6 969
1
#3
22886-MCA-006
PISTON SET, MASTER
$36.36¢18 182
1
#4
22890-MJR-305
MASTER CYLINDER SUB-ASSY., CLUTCH (COO) (NISSIN)
$333.79¢166 894
1
#5
22900-MJR-671
HOSE, CLUTCH
$96.86¢48 432
1
#6
22910-MJR-670
STAY, CLUTCH HOSE
$15.54¢7 768
1
#7
35330-MB0-003
SWITCH ASSY., CLUTCH
$19.45¢9 723
1
#8
45181-MJR-670
CLAMP, FR. BRAKE HOSE
$6.09¢3 048
1
#9
45504-410-003
BOOT
$13.10¢6 549
1
#10
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#11
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
1
#12
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
1
#13
45518-MB0-006
PLATE, STOPPER
$2.30¢1 150
1
#14
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#15
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#16
45523-MN5-006
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.01¢2 507
1
#17
53178-MJR-305
LEVER ASSY., L. HANDLE (COO)
$25.36¢12 679
1
#18
90103-MJR-670
BOLT, SOCKET (6X22)
$4.73¢2 363
1
#19
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#20
90123-MCH-A00
BOLT, FLANGE (6X12)
$1.70¢851
1
#21
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#22
90202-ZV0-000
NUT, CAP (6MM)
$3.29¢1 644
1
#23
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#24
90651-377-003
CIRCLIP (INNER) (18MM)
$2.30¢1 150
1
#25
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#25
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#26
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#26
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#27
96001-06016-07
BOLT, FLANGE (6X16)
$1.24¢621
1
