FRAME FITTINGS

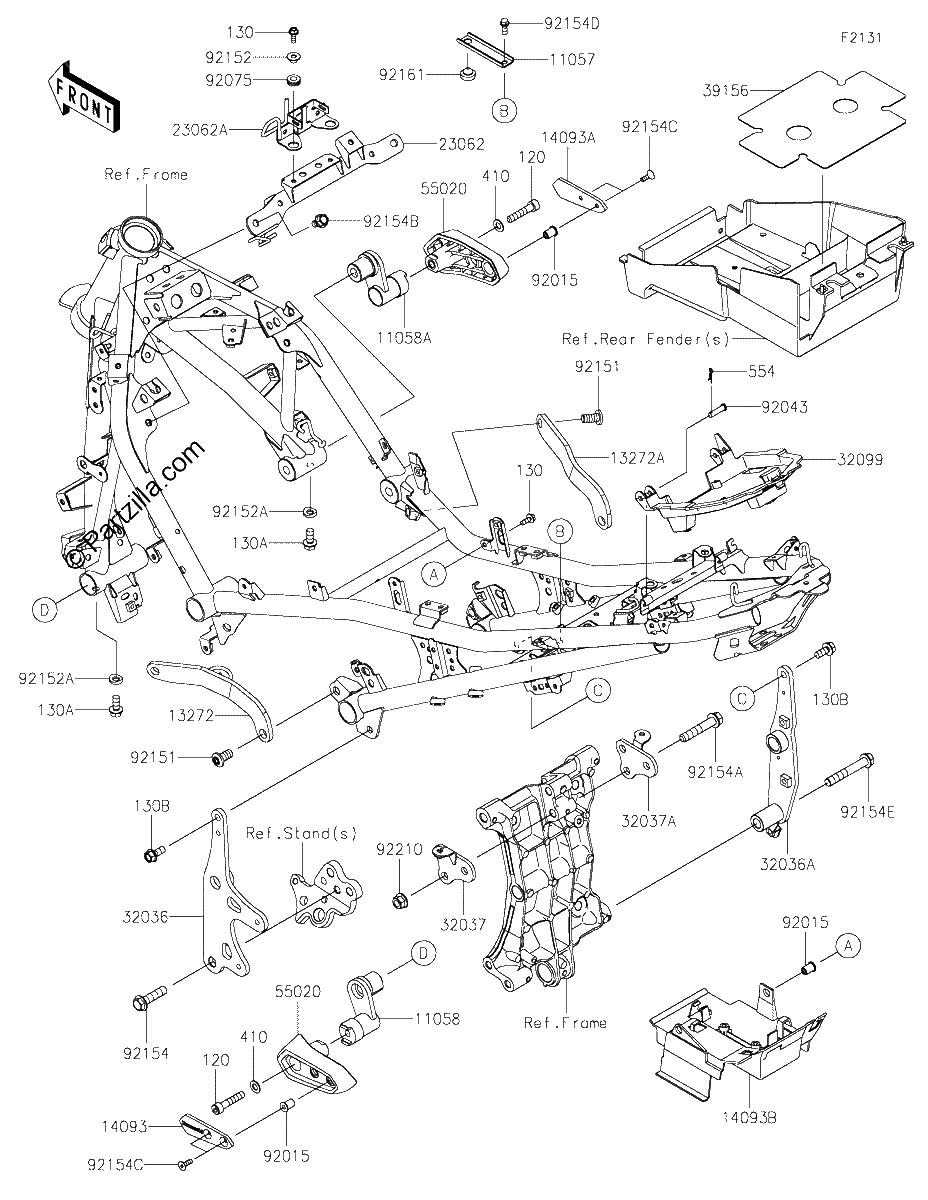

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#120
BOLT SOCKET,8X40
$2.58¢1 288
#130
BOLT-FLANGED,5X14
$1.94¢969
#130A
BOLT FLANGED,8X18
$1.66¢831
#130B
BOLT-FLANGED,8X18
$2.36¢1 181
#410
WASHER-PLAIN-SMALL,8MM
$1.05¢525
#554
PIN-SNAP,1.2X21.2
$1.02¢513
#11057
BRACKET,BATTERY
$2.09¢1 044
#11058
BRACKET,SLIDER,Left Hand
$92.50¢46 250
#11058A
BRACKET,SLIDER,Right Hand
$92.50¢46 250
#13272
PLATE,LH
$4.11¢2 056
#13272A
PLATE,RH
$4.11¢2 056
#14093
COVER,SLIDER,Left Hand
$70.91¢35 456
#14093A
COVER,SLIDER,Right Hand
$70.91¢35 456
#14093B
COVER,ECU
$50.71¢25 356
#23062
BRACKET-COMP,CROSS FRAME
$36.79¢18 394
#23062A
BRACKET-COMP
$13.44¢6 719
#32036
BRACKET-SWINGARM,LH
$60.09¢30 044
#32036A
BRACKET-SWINGARM,RH
$65.65¢32 825
#32037
BRACKET SHOCKABSORBER,Left Hand
$19.80¢9 900
#32037A
BRACKET SHOCKABSORBER,Right Hand
$19.80¢9 900
#32099
CASE,SEAT UNDER
$12.40¢6 200
#39156
PAD,BATTERY CASE
$19.09¢9 544
#55020
GUARD
$123.55¢61 775
#92015
NUT,WELL,5MM
$7.26¢3 631
#92043
PIN,6X23
$1.96¢981
#92075
DAMPER
$4.65¢2 325
#92151
BOLT,SOCKET,10X20
$2.58¢1 288
#92152A
COLLAR,8.3X16
$3.85¢1 925
#92152
COLLAR,5.2X7.8X7.2
$3.70¢1 850
#92154A
BOLT,FLANGED,10X54
$6.25¢3 125
#92154B
BOLT-FLANGED,8X14
$1.95¢975
#92154C
BOLT,SOCKET,5X16
$1.01¢506
#92154D
BOLT,6X14
$1.04¢519
#92154E
BOLT,FLANGED,10X65
$12.29¢6 144
#92154
BOLT,FLANGED,10X40
$4.81¢2 406
#92161
DAMPER
$1.63¢813
#92210
NUT,LOCK,FLANGED,10MM
$3.77¢1 888
