FRAME 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

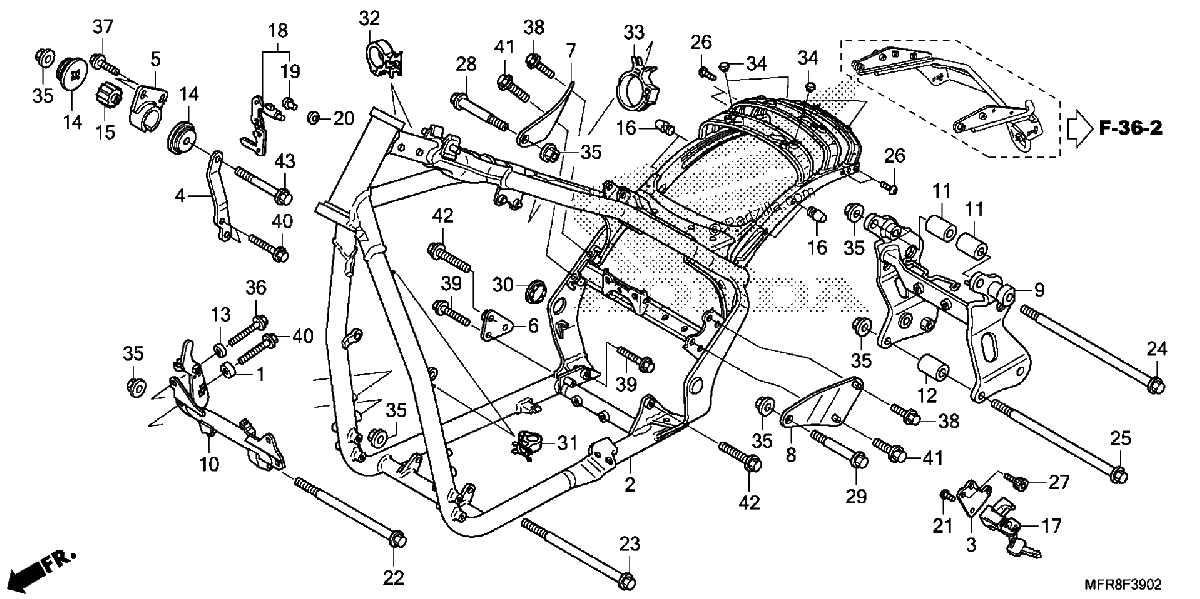

Diagrama de FRAME 3

Repuestos

#1
18309-GN3-670
COLLAR B, MUFFLER STAY
$3.11¢1 556
1
#2
50100-MFR-L00ZG
FRAME *NH1* (BLACK)
$4021.11¢2 010 556
1
#2
50100-MFR-L00ZH
FRAME *R201* (MAGNA RED)
$4171.85¢2 085 925
1
#3
50165-MFR-670
BRACKET, HELMET HOLDER
$7.21¢3 606
1
#4
50202-MFR-670
PLATE, ENGINE HANGER (LOWER)
$44.20¢22 100
1
#5
50203-MFR-670
PLATE, ENGINE HANGER CENTER
$69.35¢34 675
1
#6
50204-MFR-670
PLATE, RR. ENGINE MOUNT (LOWER) (RH)
$19.14¢9 569
1
#7
50207-MFR-670
PLATE, R. RR. ENGINE HANGER (UPPER)
$55.96¢27 981
1
#8
50208-MFR-670
PLATE, L. RR. ENGINE HANGER (UPPER)
$55.96¢27 981
1
#9
50210-MFR-670
PLATE, PIVOT MOUNT
$404.07¢202 038
1
#10
50220-MFR-670
PIPE, FR. CROSS
$259.43¢129 713
1
#11
50221-MFR-670
COLLAR, ENGINE HANGER (24X41.5)
$11.27¢5 637
1
#12
50223-MFR-670
COLLAR, ENGINE HANGER (24X32)
$9.13¢4 563
1
#13
50232-MFR-670
COLLAR A, FR. CROSS PIPE
$4.07¢2 037
1
#14
50302-HN8-003
RUBBER C, MOUNTING
$9.13¢4 563
1
#15
50305-HN8-003
RUBBER, ENGINE HEAD MOUNTING
$13.46¢6 731
1
#16
50352-428-000
RUBBER A, STOPPER
$3.65¢1 825
1
#17
50710-GCN-003
HOLDER ASSY., HELMET (HONDALOCK)
$33.52¢16 763
1
#17
50710-GCN-305
HOLDER ASSY., HELMET (COO)
$33.52¢16 763
1
#18
53600-404-611
LOCK, HANDLEBAR
$107.70¢53 850
1
#19
53603-051-000
RIVET (4.1MM)
$3.28¢1 638
1
#20
53604-098-940
WASHER (4.5MM)
$3.05¢1 525
1
#21
90105-KEB-620
BOLT, ONE-WAY (6X12)
$2.91¢1 456
1
#22
90110-MFR-670
BOLT, FLANGE (10X148)
$10.02¢5 012
1
#23
90111-MFR-670
BOLT, FLANGE (10X151)
$10.48¢5 238
1
#24
90112-MFR-670
BOLT, FLANGE (10X235.5)
$12.40¢6 200
1
#25
90117-MFR-670
BOLT, FLANGE (10X212)
$12.40¢6 200
1
#26
90118-MR1-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#27
90130-MEW-D20
BOLT, TORX (6X13)
$3.95¢1 975
1
#28
90154-MFR-670
BOLT, FLANGE (10X52)
$16.15¢8 075
1
#29
90155-MFR-670
BOLT, FLANGE (10X66)
$17.54¢8 769
1
#30
90312-MB0-700
CAP, Right LOCK NUT
$21.14¢10 569
1
#31
90690-GHB-641
CLIP, CABLE (10MM)
$2.81¢1 406
1
#32
90690-GHB-651
CLIP, CABLE (15MM)
$2.81¢1 406
1
#33
90690-GHB-661
CLIP, CABLE (20MM)
$2.81¢1 406
1
#34
90852-446-630
PLUG, HOLE
$3.30¢1 650
1
#35
90303-428-900
NUT, FLANGE (10MM)
$4.06¢2 031
1
#35
94050-10070
NUT, FLANGE (10MM)
$4.06¢2 031
1
#36
95701-06028-07
BOLT, FLANGE (6X28)
$1.45¢725
1
#37
95701-08020-07
BOLT, FLANGE (8X20)
$2.40¢1 200
1
#38
95701-08025-07
BOLT, FLANGE (8X25)
$1.19¢594
1
#39
95701-08028-07
BOLT, FLANGE (8X28)
$1.60¢800
1
#40
95701-08030-07
BOLT, FLANGE (8X30)
$2.92¢1 463
1
#41
95701-10025-07
BOLT, FLANGE (10X25)
$1.82¢913
1
#42
95701-10032-07
BOLT, FLANGE (10X32)
$2.27¢1 138
1
#43
95701-10065-07
BOLT, FLANGE (10X65)
$2.82¢1 412
1
