CLUTCH MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

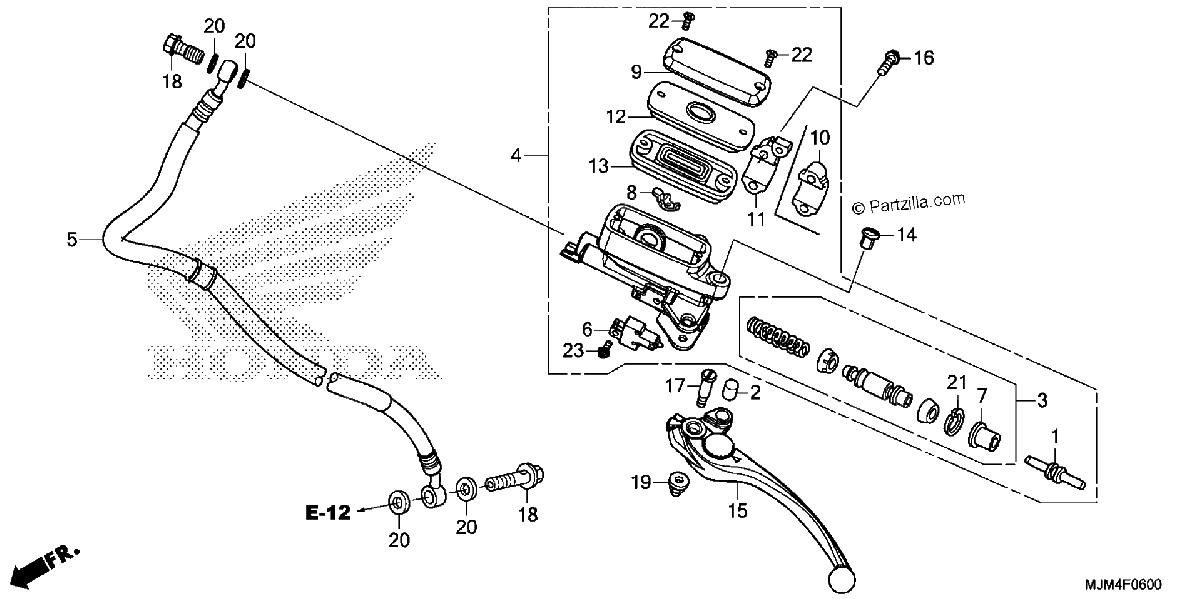

Diagrama de CLUTCH MASTER CYLINDER

Repuestos

#1
22884-MAT-E01
ROD, PUSH
$20.85¢10 425
1
#2
22885-MB0-006
BUSH
$13.94¢6 969
1
#3
22886-MAT-E01
PISTON SET, MASTER CYLINDER
$60.93¢30 463
1
#4
22890-MJM-305
MASTER CYLINDER SUB-ASSY., CLUTCH (COO) (NISSIN)
$450.63¢225 314
1
#5
22900-MJM-D00
HOSE, CLUTCH
$72.39¢36 196
1
#6
35330-MB0-003
SWITCH ASSY., CLUTCH
$19.45¢9 723
1
#7
45504-MAT-E01
BOOT
$11.37¢5 687
1
#8
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#9
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
1
#11
45517-MEF-006
HOLDER, MASTER CYLINDER
$16.80¢8 401
1
#12
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#13
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#14
53174-463-770
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
1
#14
53174-116-670
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
1
#15
53180-MEJ-016
LEVER Assembly., L HANDLE
$54.33¢27 163
1
#15
53180-MEJ-305
LEVER ASSY., L. HANDLE (COO)
$54.33¢27 163
1
#16
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.70¢851
1
#17
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#18
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#19
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#20
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#21
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#22
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#22
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#23
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#23
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
