CYLINDER HEAD FR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

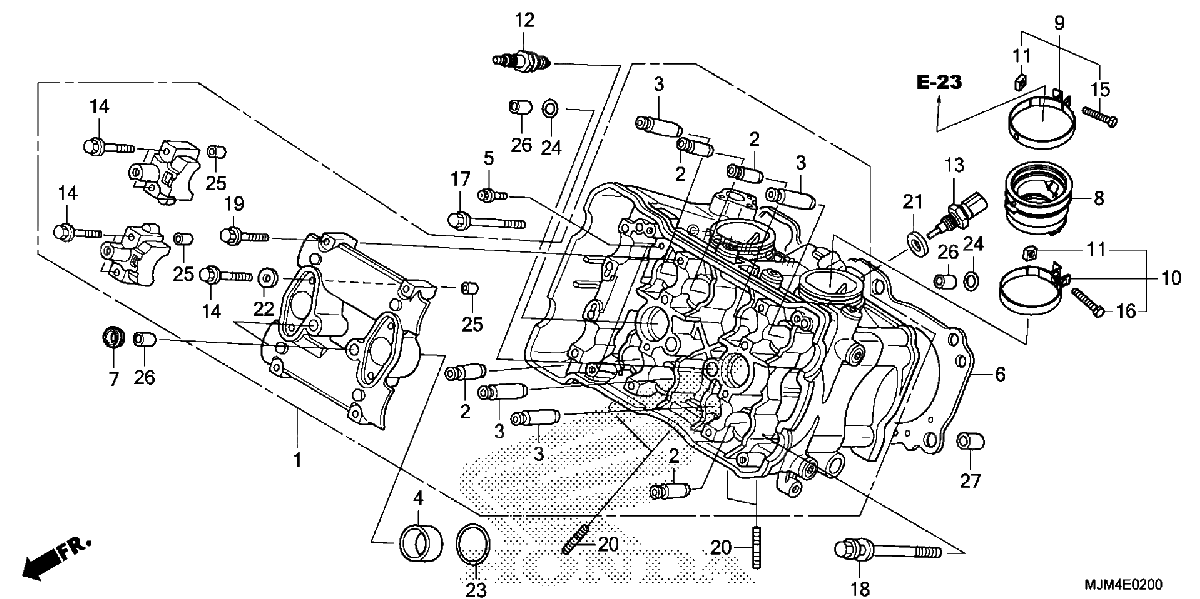

Diagrama de CYLINDER HEAD FR

Repuestos

#1
12010-MJM-D00
CYLINDER HEAD ASSY., FR.
$1356.19¢678 098
1
#2
12204-MCW-305
GUIDE A, VALVE (OVER SIZE)
$19.91¢9 953
1
#3
12205-MCW-305
GUIDE B, VALVE (OVER SIZE)
$21.34¢10 672
1
#4
12217-MBG-000
COLLAR (25MM)
$10.97¢5 485
1
#5
12217-MCE-000
BOLT, ORIFICE
$3.89¢1 943
1
#6
12251-MCW-013
GASKET, FR. CYLINDER HEAD
$68.91¢34 454
1
#7
12396-MBG-000
GASKET C, HEAD COVER
$5.51¢2 754
1
#8
16211-MCW-D00
INSULATOR, THROTTLE BODY
$20.46¢10 229
1
#9
16217-MJM-D00
BAND, INSULATOR
$6.45¢3 226
1
#10
16218-MCW-000
BAND B, INSULATOR
$3.69¢1 846
1
#11
16222-MV4-300
NUT, SQUARE (5MM)
$2.54¢1 271
1
#12
31911-HW1-671
SPARK PLUG (IMR9D-9H) (NGK)
$18.85¢9 424
1
#12
31912-HW1-671
SPARK PLUG (VNH27ZB) (DENSO)
$38.36¢19 182
1
#13
37870-MBG-003
SENSOR ASSY., WATER TEMPERATURE
$89.67¢44 833
1
#14
90002-MCW-000
BOLT, FLANGE (6X45)
$2.12¢1 058
1
#15
90005-MAS-E00
BOLT, RECESSED (5X28)
$3.79¢1 897
1
#16
90005-MM4-000
BOLT, RECESSED (5X32)
$1.26¢633
1
#17
90006-GHB-780
BOLT, FLANGE (6X75) (NSHF)
$2.42¢1 208
1
#18
90007-MCW-000
BOLT-WASHER (9X100)
$5.26¢2 628
1
#19
90016-KT7-000
BOLT, FLANGE (6X37)
$3.36¢1 679
1
#20
90035-MW4-000
BOLT, STUD (6X22)
$3.39¢1 696
1
#21
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.09¢1 547
1
#22
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#23
91307-PY4-003
O-RING (24.5X1.9)
$3.36¢1 679
1
#24
91317-P4V-004
O-RING (9.8X1.9) (ARAI)
$3.30¢1 650
1
#25
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#26
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
#27
94301-12200
PIN, DOWEL (12X20)
$2.71¢1 357
1
