FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

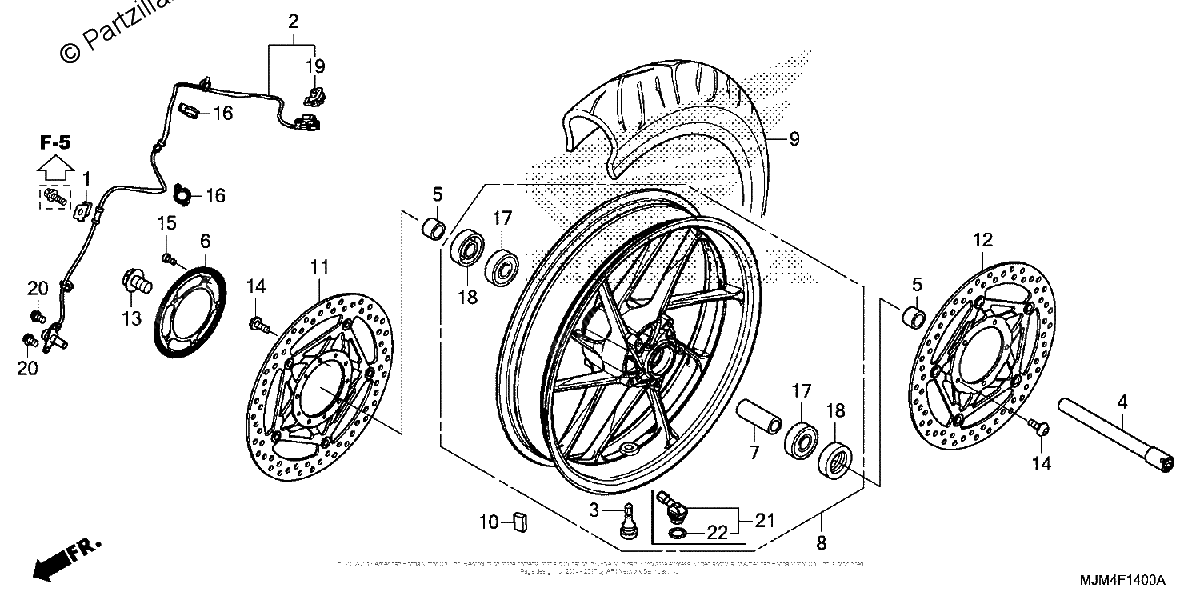

Diagrama de FRONT WHEEL

Repuestos

#1
38514-MEJ-J00
CLAMP B, SENSOR WIRE
$2.68¢1 340
1
#2
38520-MJM-D01
SENSOR, FR. WHEEL SPEED
$219.95¢109 974
1
#3
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#3
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#4
44301-MJM-D00
AXLE, FR. WHEEL
$63.43¢31 717
1
#5
44312-MCE-950
COLLAR, L. FR. WHEEL SIDE
$12.71¢6 354
1
#6
44515-MJM-D10
RING, FR. PULSER
$84.08¢42 038
1
#7
44620-MGC-N20
COLLAR, FR. AXLE DISTANCE
$17.66¢8 832
1
#8
44650-MJM-305ZA
WHEEL SUB-ASSY., FR. (TYPE1) (COO)
$1099.40¢549 700
1
#9
44711-MJM-D01
TIRE, FR. (120/70ZR17) (M/C 58W) (BS)
$250.48¢125 241
1
#9
44711-MJM-D02
TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)
$240.15¢120 077
1
#10
44723-MGC-003
WEIGHT, BALANCE (20G)
$6.22¢3 111
1
#10
44722-MGC-003
WEIGHT, BALANCE (15G)
$6.22¢3 111
1
#10
44721-MGC-003
WEIGHT, BALANCE (10G)
$5.22¢2 610
1
#11
45120-MJM-D11
DISK, R. FR. BRAKE
$580.46¢290 231
1
#12
45220-MJM-D01
DISK, L. FR. BRAKE
$696.54¢348 272
1
#13
90105-MBT-610
BOLT, FR. AXLE
$6.44¢3 220
1
#14
90106-MBB-000
BOLT, DISK (6X17)
$4.06¢2 030
1
#15
90131-KFK-630
BOLT, TORX (5X10)
$3.36¢1 679
1
#16
90690-MGS-D81
CLIP, CABLE (12MM)
$2.64¢1 322
1
#17
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
1
#18
91252-MC4-013
OIL SEAL (28X47.2X7) (ARAI)
$7.77¢3 887
1
#19
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
1
#20
96001-06010-00
BOLT, FLANGE (6X10)
$1.92¢960
1
