FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

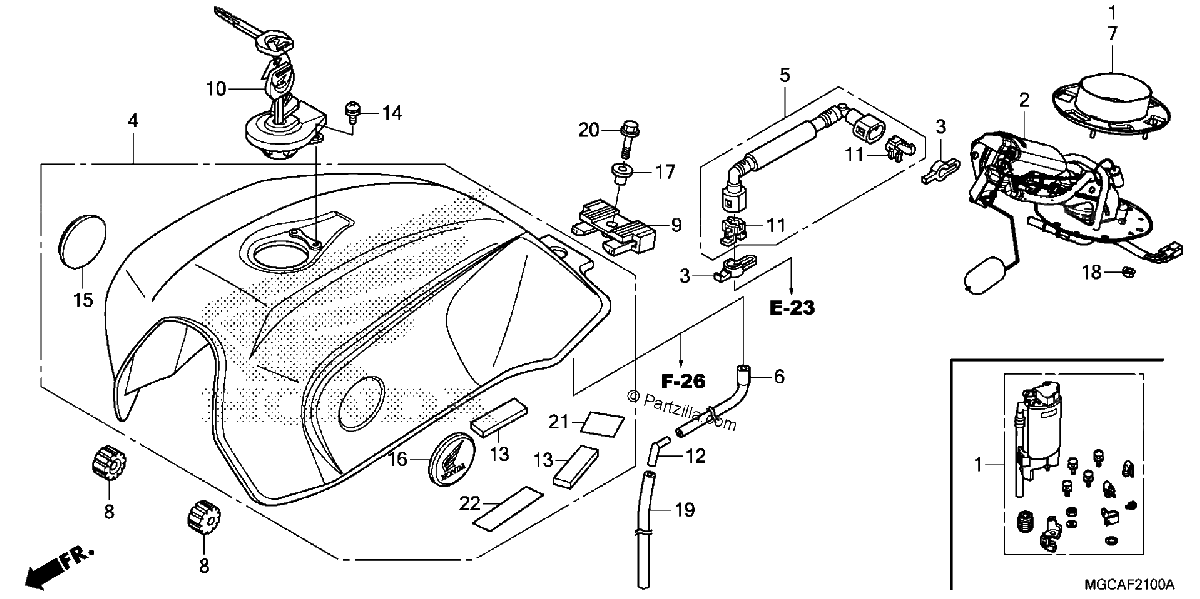

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#1
16011-MGC-010
FILTER ASSY., FUEL
$448.30¢224 150
1
#2
16700-MGC-N21
PUMP ASSY., FUEL (MSDS)
$877.50¢438 750
1
#3
16719-MFJ-D00
DAMPER, CONNECTOR
$3.65¢1 825
1
#4
17520-MGC-N20ZA
TANK SET, FUEL (TYPE4) (WL)
$1726.89¢863 444
1
#5
17526-MGC-003
HOSE, FUEL FEED
$142.81¢71 406
1
#7
17574-MFA-D00
GASKET, BASE
$30.04¢15 019
1
#8
17611-286-000
CUSHION, FR. FUEL TANK
$5.11¢2 556
1
#8
17611-KE8-000
CUSHION, FR. FUEL TANK
$5.11¢2 556
1
#9
17613-KV3-700
CUSHION, RR. FUEL TANK
$19.96¢9 981
1
#10
17620-MGC-003
CAP, FUEL FILLER
$152.27¢76 137
1
#11
17711-S0X-931
RETAINER (BLUE GREEN) (TOKAI)
$4.01¢2 006
1
#13
31511-088-740
RUBBER, BATTERY MOUNTING
$3.50¢1 750
1
#14
45319-634-003
SCREW-WASHER (4X6)
$3.20¢1 600
1
#15
64503-MFL-000
BADGE, R. PRODUCT
$44.65¢22 325
1
#16
64508-MFL-000
BADGE, L. PRODUCT
$44.65¢22 325
1
#17
80101-KB7-600
COLLAR (8X12)
$7.16¢3 581
1
#18
90213-PH3-000
NUT, CAP (6MM)
$8.04¢4 019
1
#20
95701-08028-00
BOLT, FLANGE (8X28)
$1.79¢894
1
#21
17528-KCZ-930
TAPE B, TANK GUARD
$4.80¢2 400
1
#22
17535-KBH-300
FILM, SIDE COVER GUARD
$7.30¢3 650
1
