EXHAUST MUFFLER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

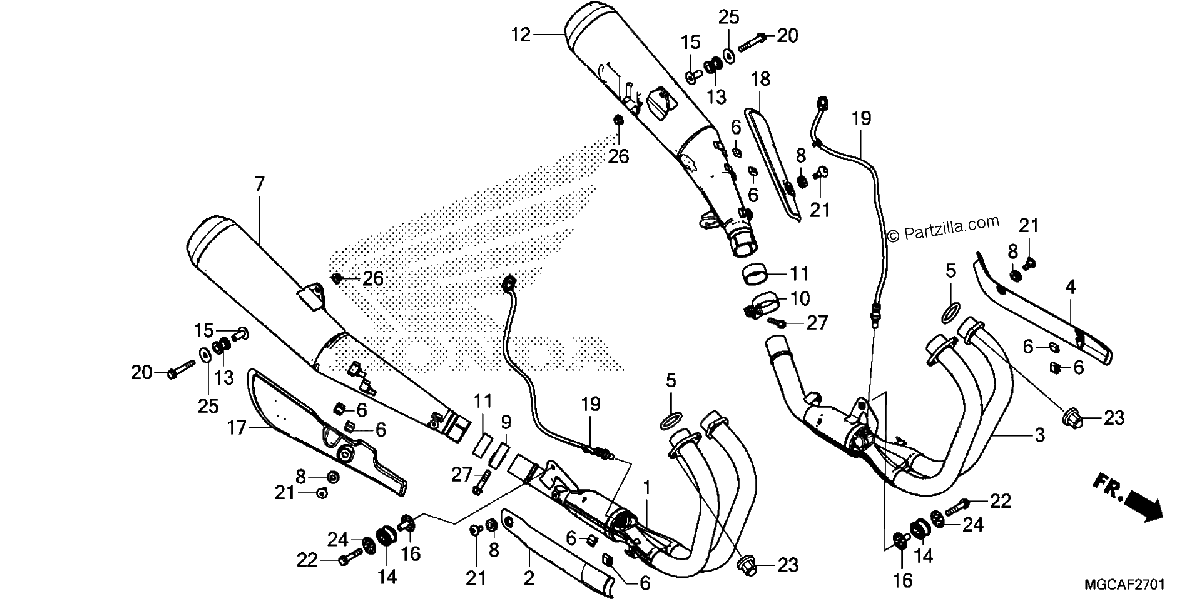

Diagrama de EXHAUST MUFFLER 2

Repuestos

#1
18150-MGC-N20
PIPE, R. EX.
$1322.56¢661 279
1
#2
18151-MGC-N20
PROTECTOR, R. EX.
$125.27¢62 635
1
#3
18250-MGC-N20
PIPE, L. EX.
$1322.56¢661 279
1
#4
18251-MGC-N20
PROTECTOR, L. EX.
$138.08¢69 040
1
#5
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#6
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#7
18310-MGC-306
MUFFLER, R. (COO)
$994.07¢497 036
1
#8
18357-MCG-000
RUBBER, PROTECTOR MOUNTING
$3.36¢1 679
1
#9
18375-413-000
BAND, R. RR. MUFFLER
$47.47¢23 736
1
#10
18376-413-000
BAND, L. RR. MUFFLER
$39.21¢19 607
1
#11
18392-MG7-750
GASKET, MUFFLER
$14.59¢7 297
1
#12
18410-MGC-305
MUFFLER, L. (COO)
$994.07¢497 036
1
#13
18421-MBT-D21
RUBBER, MUFFLER MOUNTING
$16.81¢8 407
1
#14
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$21.88¢10 942
1
#15
18422-MGC-N20
COLLAR, MUFFLER MOUNTING
$9.75¢4 876
1
#16
18423-MGC-N20
COLLAR, EX. PIPE MOUNTING
$7.56¢3 778
1
#17
18425-MGC-N20
COVER, R. MUFFLER
$154.23¢77 113
1
#18
18525-MGC-N20
COVER, L. MUFFLER
$98.64¢49 318
1
#19
36531-MGC-N21
SENSOR, OXYGEN
$310.67¢155 336
1
#20
90109-MZ5-000
BOLT, SPECIAL FLANGE (8X50)
$7.24¢3 622
1
#21
90114-MCJ-000
SCREW, SPECIAL (6X14)
$2.98¢1 489
1
#22
90122-MM2-000
BOLT, SPECIAL FLANGE (8X40)
$5.07¢2 536
1
#23
90304-ME1-670
NUT, CAP (8MM)
$6.64¢3 318
1
#24
90501-MGC-N20
WASHER (8.5X38)
$3.84¢1 920
1
#25
90504-ME4-000
WASHER (8.5X26)
$3.63¢1 817
1
#26
94050-08040
NUT, FLANGE (8MM)
$1.74¢868
1
#27
95701-08038-00
BOLT, FLANGE (8X38)
$1.79¢897
1
