FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

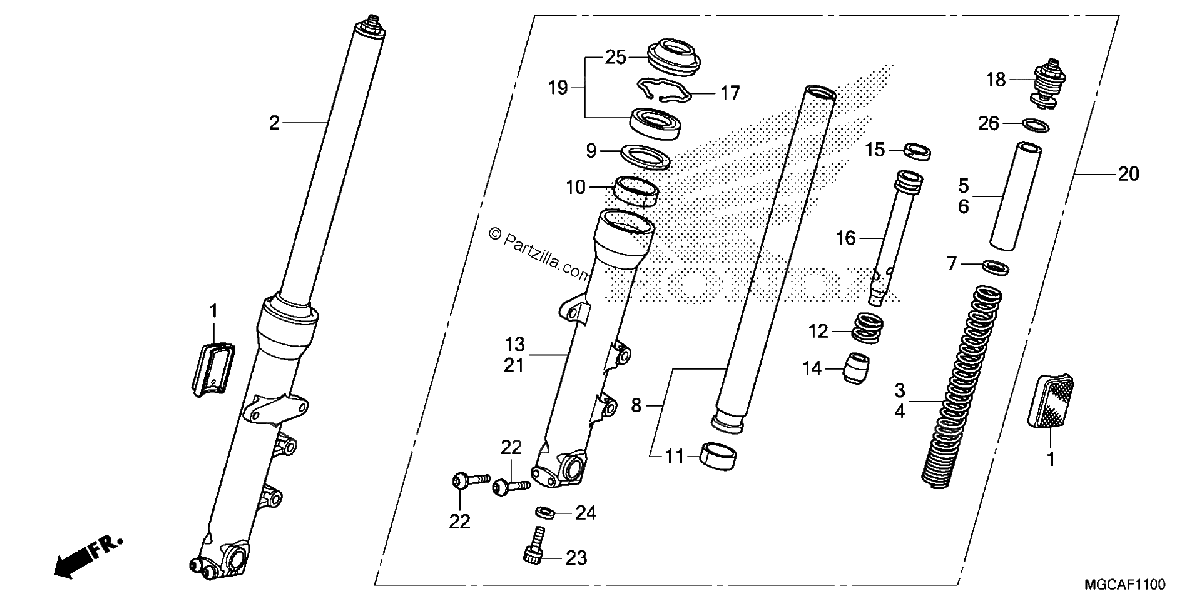

Diagrama de FRONT FORK

Repuestos

#1
33740-MEG-671
REFLECTOR, Front SIDE REFLEX
$17.01¢8 506
1
#2
51400-MGC-308
FORK ASSY., R. FR. (COO) (SHOWA)
$1043.91¢521 956
1
#3
51401-MGC-003
SPRING, FR. FORK
$117.63¢58 813
1
#4
51501-MGC-N21
SPRING, FR. FORK
$128.91¢64 456
1
#5
51402-KV3-701
COLLAR, SPRING (SHOWA)
$27.86¢13 931
1
#6
51402-MS2-003
COLLAR, SPRING
$22.93¢11 463
1
#7
51403-KF0-003
SEAT, SPRING (SHOWA)
$5.81¢2 906
1
#8
51410-MGC-003
PIPE, FR. FORK
$515.00¢257 500
1
#9
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#10
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#11
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#12
51416-MM8-881
SPRING, FR. REBOUND (SHOWA)
$7.14¢3 569
1
#13
51420-MGC-C41
CASE, R. (LOWER)
$515.25¢257 625
1
#14
51432-KV3-701
PIECE, OIL LOCK (SHOWA)
$23.11¢11 556
1
#15
51437-MM5-003
RING, PISTON
$6.44¢3 219
1
#16
51440-MGC-003
PIPE, SEAT
$61.86¢30 931
1
#17
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#18
51450-MGC-003
BOLT ASSY., FR. FORK (SHOWA)
$77.60¢38 800
1
#19
51490-MER-R61
SEAL SET, Front FORK
$26.44¢13 219
1
#19
51490-MKA-D81
SEAL SET, FR. FORK
$26.44¢13 219
1
#20
51500-MGC-308
FORK ASSY., L. FR. (COO) (SHOWA)
$1043.91¢521 956
1
#21
51520-MGC-C41
CASE, L. (LOWER)
$538.44¢269 219
1
#22
90109-MBT-611
BOLT, SOCKET (8X45)
$4.88¢2 438
1
#23
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#24
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#25
91254-MEE-D01
DUST SEAL (SHOWA)
$10.00¢5 000
1
#26
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
