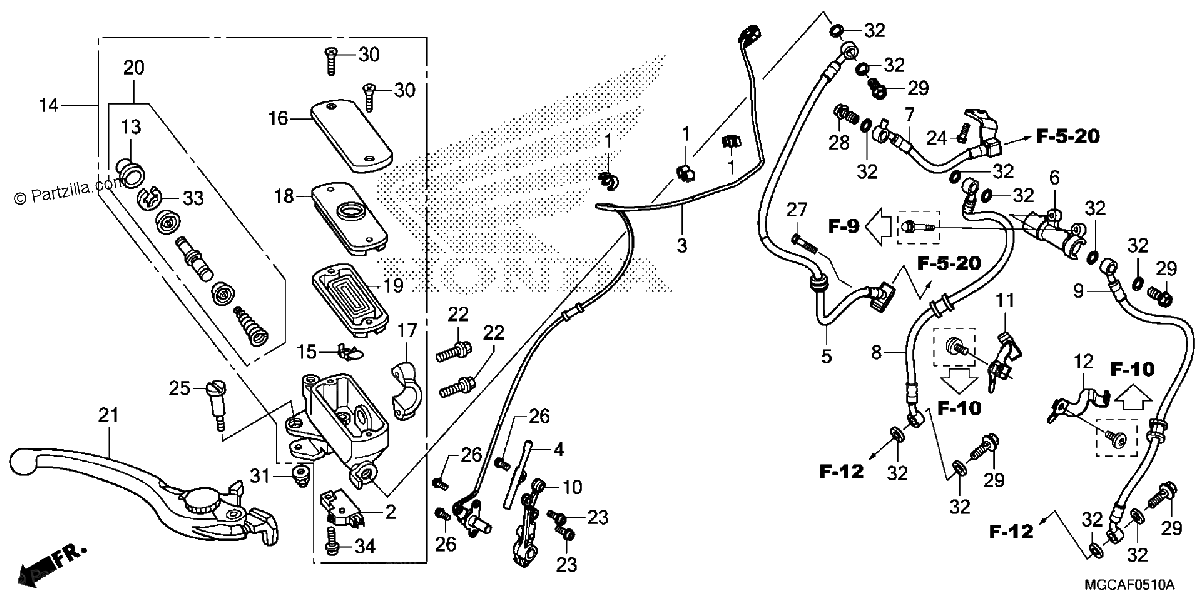

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP, PIPE
$8.64¢4 319
#2
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#3
SENSOR, FR. WHEEL SPEED
$261.80¢130 900
#4
GUIDE, FR. SPEED SENSOR
$17.18¢8 588
#5
HOSE A, FR. BRAKE
$70.71¢35 356
#6
JOINT (TWO-WAY) (NISSIN)
No Disponible
#7
HOSE, FR. BRAKE
$35.67¢17 838
#8
HOSE, R. FR. BRAKE
$54.59¢27 294
#9
HOSE, L. FR. BRAKE
$54.59¢27 294
#10
BRACKET, SPEED SENSOR
No Disponible
#10
BRACKET, SPEED SENSOR
$102.07¢51 037
#11
CLAMP, R. FR. BRAKE
$16.45¢8 225
#12
CLAMP, L. FR. BRAKE
$17.19¢8 594
#13
BOOT
$14.24¢7 119
#14
MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)
$336.00¢168 000
#15
PROTECTOR
$5.20¢2 600
#16
CAP, MASTER CYLINDER (NISSIN)
$37.13¢18 563
#17
HOLDER, MASTER CYLINDER
$15.74¢7 869
#18
PLATE, DIAPHRAGM
$12.36¢6 181
#19
DIAPHRAGM
$17.68¢8 838
#20
MASTER CYLINDER SET
$55.46¢27 731
#21
LEVER ASSY., R. HANDLE (COO)
$52.47¢26 237
#22
BOLT, FLANGE (6X22)
$1.85¢925
#23
BOLT, FLANGE SOCKET (6X16)
$3.33¢1 663
#24
BOLT, FLANGE (6X16)
$1.86¢931
#25
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#26
BOLT, FLANGE (6X12)
$1.85¢925
#27
BOLT, FLANGE (6X25)
$1.85¢925
#28
BOLT, OIL (10X34)
$9.36¢4 681
#29
BOLT, OIL (10X22)
$8.89¢4 444
#30
SCREW, FLAT
$2.76¢1 381
#31
NUT, CAP (6MM)
$2.76¢1 381
#32
WASHER, OIL BOLT
$4.85¢2 425
#33
CIRCLIP
$3.10¢1 550
#34
SCREW-WASHER (4X12)
$1.72¢862
#34
SCREW-WASHER (4X12)
$1.72¢862
