CLUTCH MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

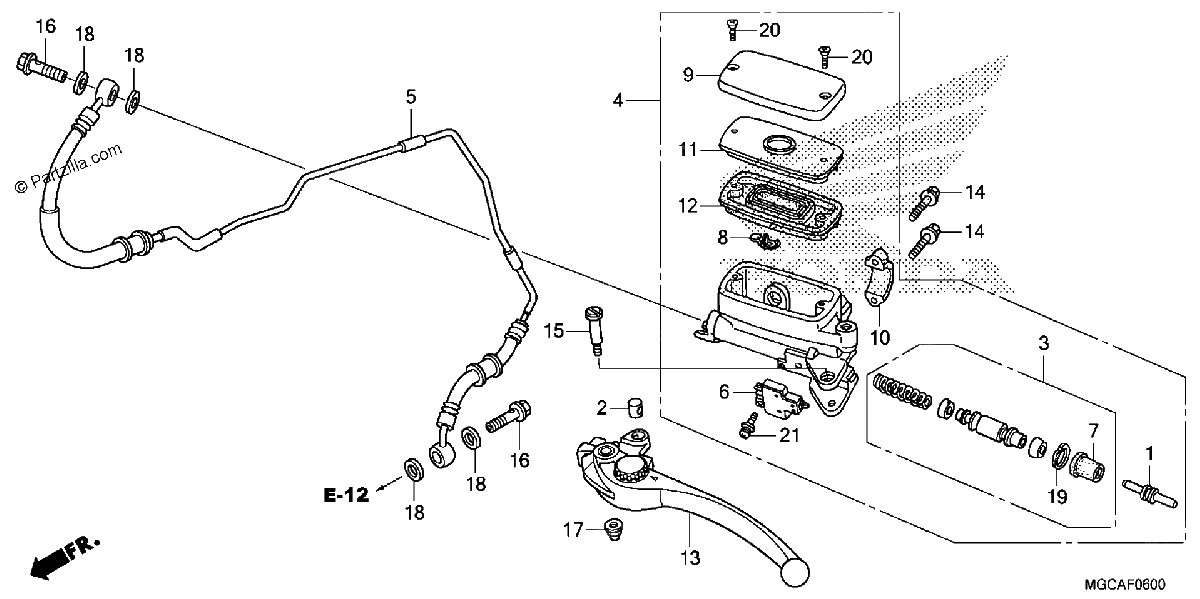

Diagrama de CLUTCH MASTER CYLINDER

Repuestos

#1
22884-MAT-E01
ROD, PUSH
$22.66¢11 331
1
#2
22885-MB0-006
BUSH
$15.15¢7 575
1
#3
22886-MAT-E01
PISTON SET, MASTER CYLINDER
$66.22¢33 113
1
#4
22890-MGC-305
MASTER CYLINDER SUB-ASSY., CLUTCH (COO) (NISSIN)
$489.74¢244 869
1
#5
22900-MGC-003
PIPE, CLUTCH
$305.09¢152 544
1
#6
35330-MB0-003
SWITCH ASSY., CLUTCH
$21.14¢10 569
1
#7
45504-MAT-E01
BOOT
$12.36¢6 181
1
#8
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#9
45513-MZ8-R41
CAP, MASTER CYLINDER (NISSIN)
$37.13¢18 563
1
#10
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#11
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#12
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#13
53180-MEJ-305
LEVER ASSY., L. HANDLE (COO)
$59.05¢29 525
1
#14
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.85¢925
1
#15
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#16
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#17
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#18
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#19
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#20
90158-MT7-000
SCREW, FLAT
$2.76¢1 381
1
#21
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#21
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
