THERMOSTAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

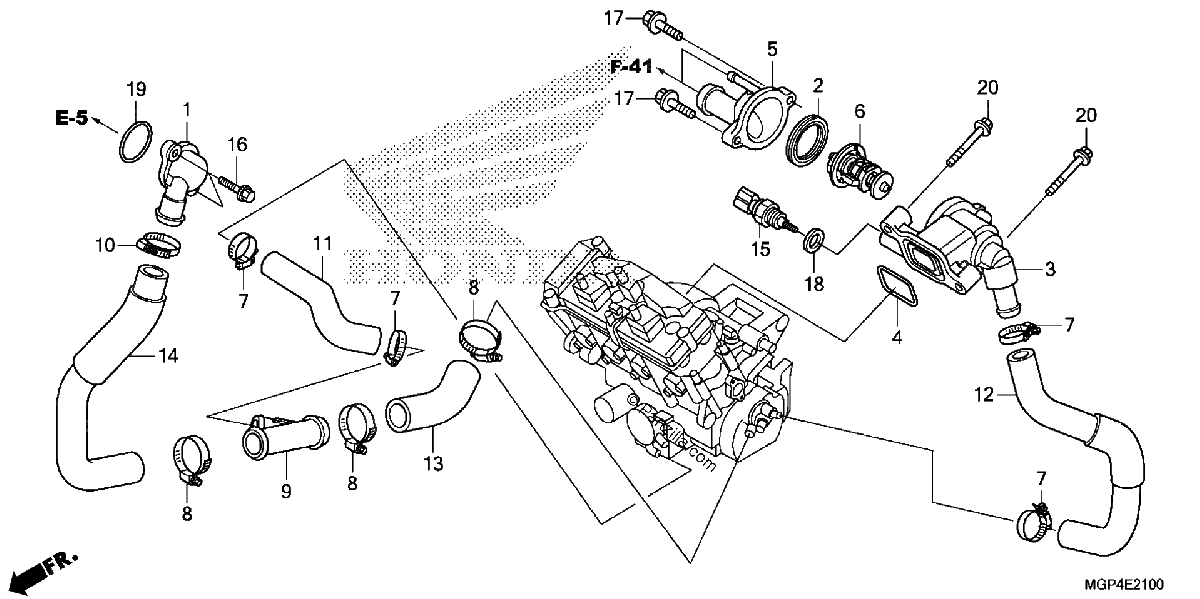

Diagrama de THERMOSTAT

Repuestos

#001
19060-MFL-000
JOINT, WATER
$50.32¢25 162
1
#1
19060-MFL-000
JOINT, WATER
$50.32¢25 162
1
#002
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#2
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#003
19310-MFL-305
CASE, THERMOSTAT
$59.01¢29 506
1
#3
19310-MFL-305
CASE, THERMOSTAT
$59.01¢29 506
1
#004
19312-MFG-D00
GASKET, THERMOSTAT CASE
$3.71¢1 856
1
#4
19312-MFG-D00
GASKET, THERMOSTAT CASE
$3.71¢1 856
1
#005
19315-MFL-000
COVER, THERMOSTAT
$61.35¢30 675
1
#5
19315-MFL-000
COVER, THERMOSTAT
$61.35¢30 675
1
#006
19320-MFJ-D01
THERMOSTAT
$40.03¢20 013
1
#6
19320-MFJ-D01
THERMOSTAT
$40.03¢20 013
1
#7
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$12.04¢6 019
1
#007
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$12.04¢6 019
1
#8
19504-MGP-000
CLAMP, WATER HOSE (35MM)
$12.11¢6 056
1
#008
19504-MGP-000
CLAMP, WATER HOSE (35MM)
$12.11¢6 056
1
#009
19514-MFJ-D00
JOINT, HOSE (THREE-WAY)
$14.46¢7 231
1
#9
19514-MFJ-D00
JOINT, HOSE (THREE-WAY)
$14.46¢7 231
1
#010
19504-MGP-000
CLAMP, WATER HOSE (35MM)
$12.11¢6 056
1
#10
19504-MGP-000
CLAMP, WATER HOSE (35MM)
$12.11¢6 056
1
#011
19526-MFL-000
HOSE, OIL COOLER
$7.01¢3 506
1
#11
19526-MFL-000
HOSE, OIL COOLER
$7.01¢3 506
1
#12
19531-MGP-D60
HOSE, BYPASS
$29.59¢14 794
1
#012
19531-MGP-D60
HOSE, BYPASS
$29.59¢14 794
1
#013
19541-MFL-000
HOSE A, CYLINDER
$11.47¢5 738
1
#13
19541-MFL-000
HOSE A, CYLINDER
$11.47¢5 738
1
#014
19542-MGP-D60
HOSE B, CYLINDER
$29.01¢14 506
1
#14
19542-MGP-D60
HOSE B, CYLINDER
$29.01¢14 506
1
#015
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#15
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#016
90010-GHB-650
BOLT, FLANGE (6X20)
$1.99¢994
1
#16
90010-GHB-650
BOLT, FLANGE (6X20)
$1.99¢994
1
#017
90018-ZE1-000
BOLT, FLANGE (6X23) (CT200)
$2.15¢1 075
1
#17
90018-ZE1-000
BOLT, FLANGE (6X23) (CT200)
$2.15¢1 075
1
#018
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#18
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#19
91301-MFL-000
O-RING (34X2)
$3.05¢1 525
1
#019
91301-MFL-000
O-RING (34X2)
$3.05¢1 525
1
#020
95701-06035-00
BOLT, FLANGE (6X35)
$2.41¢1 206
1
#20
95701-06035-00
BOLT, FLANGE (6X35)
$2.41¢1 206
1
