STEP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

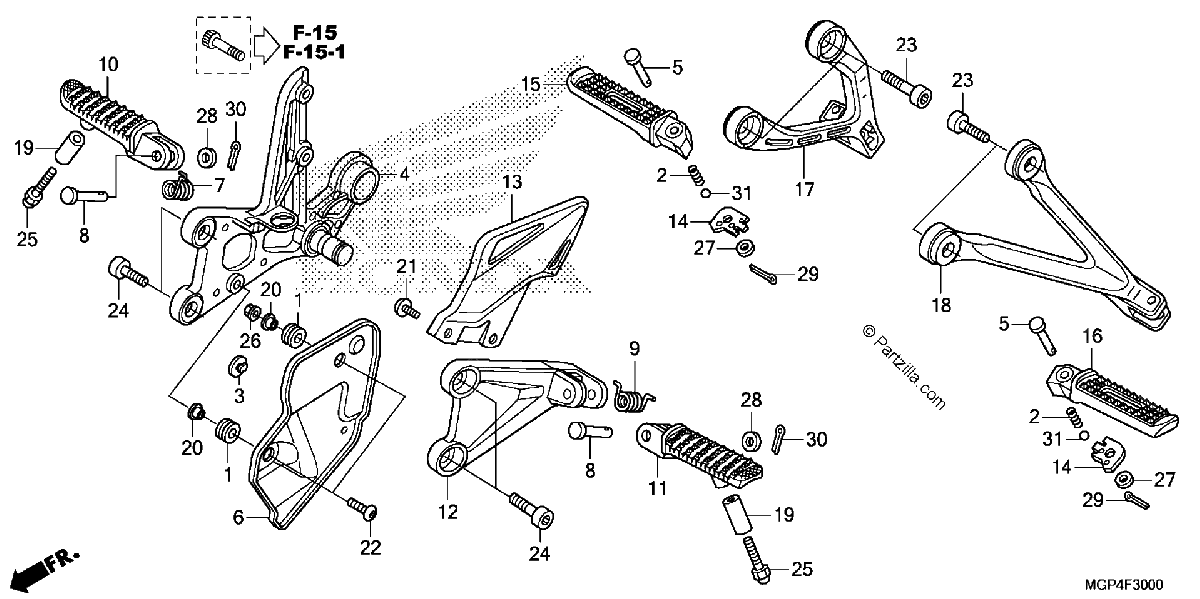

Diagrama de STEP

Repuestos

#1
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#001
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#002
28333-300-000
SPRING, KICK STARTER STOPPER
$3.65¢1 825
1
#2
28333-300-000
SPRING, KICK STARTER STOPPER
$3.65¢1 825
1
#003
40514-333-000
PLUG, CHAIN CASE
$3.33¢1 663
1
#003
40514-377-000
PLUG, CHAIN CASE
$3.33¢1 663
1
#3
40514-377-000
PLUG, CHAIN CASE
$3.33¢1 663
1
#004
50600-MGP-D60
HOLDER, R. MAIN STEP
$155.33¢77 663
1
#4
50600-MGP-D60
HOLDER, R. MAIN STEP
$155.33¢77 663
1
#005
50603-MFL-D20
PIN C, PILLION STEP
$2.97¢1 487
1
#5
50603-MFL-D20
PIN C, PILLION STEP
$2.97¢1 487
1
#6
50610-MFL-000
GUARD, MAIN STEP HEAT
$16.63¢8 313
1
#006
50610-MFL-000
GUARD, MAIN STEP HEAT
$16.63¢8 313
1
#7
50617-MCJ-750
SPRING, R. STEP RETURN
$5.15¢2 575
1
#007
50617-MCJ-750
SPRING, R. STEP RETURN
$5.15¢2 575
1
#8
50639-MFL-D20
PIN, STEP BAR
$3.65¢1 825
1
#008
50639-MFL-D20
PIN, STEP BAR
$3.65¢1 825
1
#009
50644-MCJ-750
SPRING, L. STEP RETURN
$5.15¢2 575
1
#9
50644-MCJ-750
SPRING, L. STEP RETURN
$5.15¢2 575
1
#010
50660-MEL-000
ARM, Right MAIN STEP
$58.13¢29 063
1
#010
50660-MEL-305
ARM, R. MAIN STEP (COO)
$58.13¢29 063
1
#10
50660-MEL-305
ARM, R. MAIN STEP (COO)
$58.13¢29 063
1
#011
50665-MEL-305
ARM, L. MAIN STEP (COO)
$57.69¢28 844
1
#11
50665-MEL-305
ARM, L. MAIN STEP (COO)
$57.69¢28 844
1
#011
50665-MEL-000
ARM, L MAIN STEP
$57.69¢28 844
1
#12
50700-MGP-D60
HOLDER, L. MAIN STEP
$103.36¢51 681
1
#012
50700-MGP-D60
HOLDER, L. MAIN STEP
$103.36¢51 681
1
#013
50707-MFL-000
GUARD, L. STEP
$45.10¢22 550
1
#13
50707-MFL-000
GUARD, L. STEP
$45.10¢22 550
1
#14
50718-MEE-D00
PLATE, PILLION STEP CLICK
$3.40¢1 700
1
#014
50718-MEE-D00
PLATE, PILLION STEP CLICK
$3.40¢1 700
1
#015
50720-MEL-305
ARM, R. PILLION STEP (COO)
$60.23¢30 113
1
#15
50720-MEL-305
ARM, R. PILLION STEP (COO)
$60.23¢30 113
1
#016
50730-MEL-305
ARM, L. PILLION STEP (COO)
$67.46¢33 731
1
#16
50730-MEL-305
ARM, L. PILLION STEP (COO)
$67.46¢33 731
1
#17
50750-MFL-D20
HOLDER, R. PILLION STEP
$143.40¢71 700
1
#017
50750-MFL-D20
HOLDER, R. PILLION STEP
$143.40¢71 700
1
#18
50760-MFL-D20
HOLDER, L. PILLION STEP
$143.40¢71 700
1
#018
50760-MFL-D20
HOLDER, L. PILLION STEP
$143.40¢71 700
1
#019
51486-MEL-000
COLLAR, STEP (LOWER)
$4.89¢2 444
1
#19
51486-MEL-000
COLLAR, STEP (LOWER)
$4.89¢2 444
1
#020
84706-415-000
COLLAR
$3.01¢1 506
1
#20
84706-415-000
COLLAR
$3.01¢1 506
1
#21
90106-MAV-000
SCREW, PAN
$2.81¢1 406
1
#021
90106-MAV-000
SCREW, PAN
$2.81¢1 406
1
#22
90115-MEL-000
SCREW, PAN (5X15)
$2.44¢1 219
1
#022
90115-MEL-000
SCREW, PAN (5X15)
$2.44¢1 219
1
#023
90130-MFL-000
BOLT, SOCKET (8X20)
$2.44¢1 219
1
#23
90130-MFL-000
BOLT, SOCKET (8X20)
$2.44¢1 219
1
#024
90157-MFL-D20
BOLT, SOCKET (8X22)
$4.28¢2 138
1
#24
90157-MFL-D20
BOLT, SOCKET (8X22)
$4.28¢2 138
1
#025
92501-06050-0A
BOLT, CAP (6X50)
$3.65¢1 825
1
#25
92501-06050-0A
BOLT, CAP (6X50)
$3.65¢1 825
1
#026
94050-05070
NUT, FLANGE (5MM)
$1.66¢831
1
#26
94050-05070
NUT, FLANGE (5MM)
$1.66¢831
1
#27
94101-06080
WASHER, PLAIN (6MM)
$0.84¢419
1
#027
94101-06800
WASHER, PLAIN (6MM)
$0.84¢419
1
#27
94101-06800
WASHER, PLAIN (6MM)
$0.84¢419
1
#027
94101-06080
WASHER, PLAIN (6MM)
$0.84¢419
1
#27
94101-06000
WASHER, PLAIN (6MM)
$0.84¢419
1
#027
94101-06000
WASHER, PLAIN (6MM)
$0.84¢419
1
#028
94102-08000
WASHER, PLAIN (8MM)
$1.15¢575
1
#28
94102-08000
WASHER, PLAIN (8MM)
$1.15¢575
1
#29
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#029
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#30
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#030
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#031
96211-08000
BALL, STEEL (#8) (1/4)
$1.60¢800
1
#31
96211-08000
BALL, STEEL (#8) (1/4)
$1.60¢800
1
