MIDDLE COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

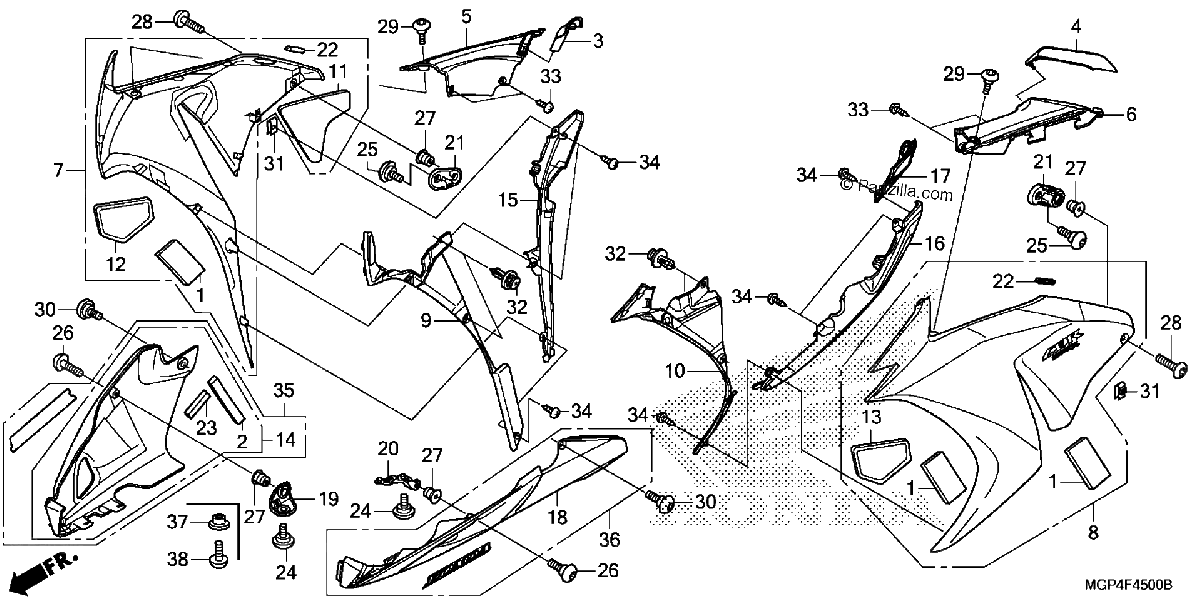

Diagrama de MIDDLE COWL

Repuestos

#1
17269-MZ5-920
MAT, CARBURETOR COVER
$4.63¢2 313
1
#001
17269-MZ5-920
MAT, CARBURETOR COVER
$4.63¢2 313
1
#002
50131-MFJ-D00
MAT, L. ENGINE HANGER
$2.44¢1 219
1
#2
50131-MFJ-D00
MAT, L. ENGINE HANGER
$2.44¢1 219
1
#003
64121-MGP-D00
RUBBER, R. DUCT COVER SEAL
$36.60¢18 300
1
#3
64121-MGP-D00
RUBBER, R. DUCT COVER SEAL
$36.60¢18 300
1
#004
64123-MGP-D00
RUBBER, L. DUCT COVER SEAL
$36.60¢18 300
1
#4
64123-MGP-D00
RUBBER, L. DUCT COVER SEAL
$36.60¢18 300
1
#005
64230-MGP-D00
COVER, R. AIR DUCT
$23.26¢11 631
1
#5
64230-MGP-D00
COVER, R. AIR DUCT
$23.26¢11 631
1
#6
64240-MGP-D00
COVER, L. AIR DUCT
$19.91¢9 956
1
#006
64240-MGP-D00
COVER, L. AIR DUCT
$19.91¢9 956
1
#007
64300-MGP-930ZB
COWL SET, R. MIDDLE (TYPE2) (WL)
$564.40¢282 200
1
#7
64300-MGP-930ZB
COWL SET, R. MIDDLE (TYPE2) (WL)
$564.40¢282 200
1
#8
64350-MGP-930ZB
COWL SET, L MIDDLE (TYPE2) (WL)
$564.40¢282 200
1
#008
64350-MGP-930ZB
COWL SET, L MIDDLE (TYPE2) (WL)
$564.40¢282 200
1
#009
64370-MGP-D01
COWL, R. MIDDLE (INNER)
$25.43¢12 713
1
#9
64370-MGP-D01
COWL, R. MIDDLE (INNER)
$25.43¢12 713
1
#010
64375-MGP-D01
COWL, L. MIDDLE (INNER)
$30.51¢15 256
1
#10
64375-MGP-D01
COWL, L. MIDDLE (INNER)
$30.51¢15 256
1
#11
64392-MGP-D00
MAT B, R. MIDDLE COWL
$23.85¢11 925
1
#011
64392-MGP-D00
MAT B, R. MIDDLE COWL
$23.85¢11 925
1
#12
64395-MGP-A00
MAT C, R. MIDDLE COWL
$22.50¢11 250
1
#012
64395-MGP-A00
MAT C, R. MIDDLE COWL
$22.50¢11 250
1
#013
64396-MGP-A00
MAT C, L. MIDDLE COWL
$22.50¢11 250
1
#13
64396-MGP-A00
MAT C, L. MIDDLE COWL
$22.50¢11 250
1
#15
64411-MGP-D01
COWL, R. LAYER
$53.15¢26 575
1
#015
64411-MGP-D01
COWL, R. LAYER
$53.15¢26 575
1
#016
64421-MGP-D01
COWL, L. LAYER
$62.53¢31 263
1
#16
64421-MGP-D01
COWL, L. LAYER
$62.53¢31 263
1
#19
64541-MFL-000
STAY, R. COWL (LOWER)
$4.33¢2 163
1
#019
64541-MFL-000
STAY, R. COWL (LOWER)
$4.33¢2 163
1
#20
64542-MFL-000
STAY, L. COWL (LOWER)
$4.33¢2 163
1
#020
64542-MFL-000
STAY, L. COWL (LOWER)
$4.33¢2 163
1
#021
64543-MFL-000
STAY, MIDDLE COWL
$3.65¢1 825
1
#21
64543-MFL-000
STAY, MIDDLE COWL
$3.65¢1 825
1
#022
77212-MFJ-D00
PROTECTOR, RUBBER
$2.24¢1 119
1
#22
77212-MFJ-D00
PROTECTOR, RUBBER
$2.24¢1 119
1
#23
83551-MCZ-300
MAT, AIR CLEANER SIDE COVER
$4.36¢2 181
1
#023
83551-MCZ-300
MAT, AIR CLEANER SIDE COVER
$4.36¢2 181
1
#025
90106-MBL-610
SCREW, SPECIAL (6MM)
$2.88¢1 438
1
#25
90106-MBL-610
SCREW, SPECIAL (6MM)
$2.88¢1 438
1
#26
90108-MFL-D20
SCREW, PAN (5X15)
$2.73¢1 363
1
#026
90108-MFL-D20
SCREW, PAN (5X15)
$2.73¢1 363
1
#27
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#027
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#28
90113-MFL-D20
SCREW, PAN (5X15)
$2.70¢1 350
1
#028
90113-MFL-D20
SCREW, PAN (5X15)
$2.70¢1 350
1
#029
90113-MGP-D00
SCREW, SPECIAL (5X14)
$2.63¢1 313
1
#29
90113-MGP-D00
SCREW, SPECIAL (5X14)
$2.63¢1 313
1
#30
90117-MFL-D20
SCREW, PAN (6X14)
$2.64¢1 319
1
#030
90117-MFL-D20
SCREW, PAN (6X14)
$2.64¢1 319
1
#031
90302-SA4-003
NUT, SPRING (4MM)
$6.40¢3 200
1
#31
90302-SA4-003
NUT, SPRING (4MM)
$6.40¢3 200
1
#32
90683-GR1-003
CLIP, BODY COVER
$3.65¢1 825
1
#032
90683-GR1-003
CLIP, BODY COVER
$3.65¢1 825
1
#33
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#033
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#034
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#34
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#035
64400-MGP-M30ZA
COWL SET, R. (LOWER) (TYPE3) (WL)
$439.07¢219 538
1
#35
64400-MGP-M30ZA
COWL SET, R. (LOWER) (TYPE3) (WL)
$439.07¢219 538
1
#036
64440-MGP-D60ZA
COWL ASSY., L. (LOWER) (TYPE3) (WL)
$463.26¢231 631
1
#36
64440-MGP-D60ZA
COWL ASSY., L. (LOWER) (TYPE3) (WL)
$463.26¢231 631
1
#037
77103-MFR-670
COLLAR, SEAT SETTING
$3.65¢1 825
1
#37
77103-MFR-670
COLLAR, SEAT SETTING
$3.65¢1 825
1
#38
90085-MZ1-000
BOLT, SPECIAL (6X17)
$4.44¢2 219
1
#038
90085-MZ1-000
BOLT, SPECIAL (6X17)
$4.44¢2 219
1
