CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

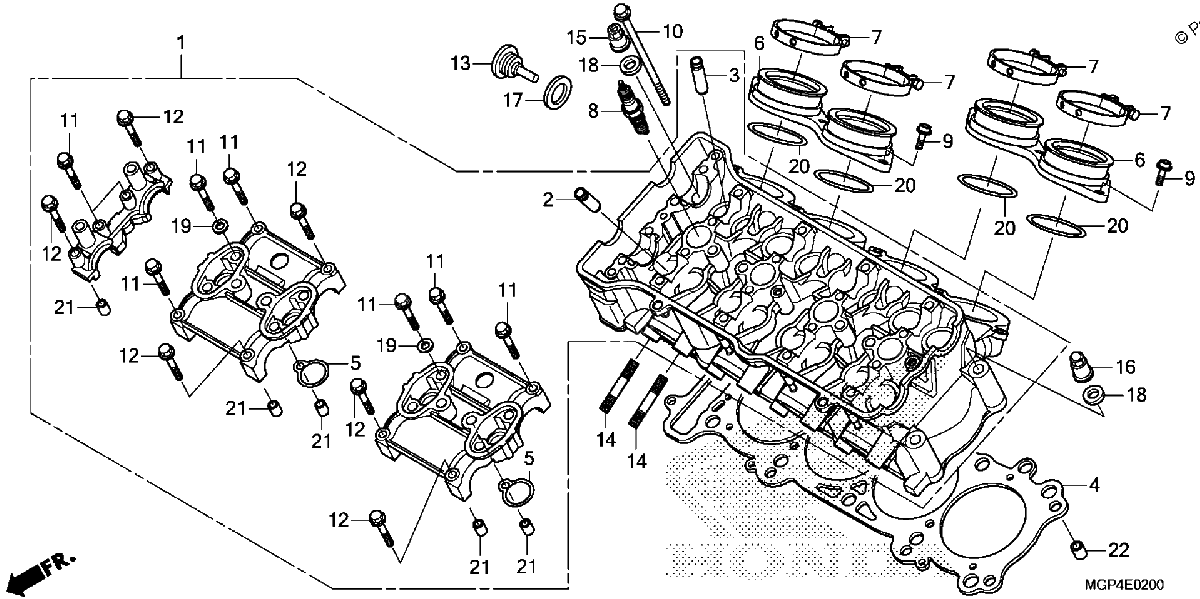

Diagrama de CYLINDER HEAD

Repuestos

#001
12010-MGP-D60
CYLINDER HEAD ASSY.
$2095.53¢1 047 765
1
#1
12010-MGP-D60
CYLINDER HEAD ASSY.
$2095.53¢1 047 765
1
#2
12204-MBW-305
(EXHAUST SIDE)
$18.91¢9 453
1
#002
12204-MBW-305
(EXHAUST SIDE)
$18.91¢9 453
1
#3
12204-MFL-305
GUIDE, VALVE (OVER SIZE)
$20.06¢10 028
1
#003
12204-MFL-305
GUIDE, VALVE (OVER SIZE)
$20.06¢10 028
1
#004
12251-MFL-003
GASKET, CYLINDER HEAD
$95.85¢47 926
1
#4
12251-MFL-003
GASKET, CYLINDER HEAD
$95.85¢47 926
1
#5
12395-MBW-003
GASKET, PLUG HOLE
$5.19¢2 593
1
#005
12395-MBW-003
GASKET, PLUG HOLE
$5.19¢2 593
1
#006
16210-MGP-D60
INSULATOR, THROTTLE BODY
$77.97¢38 985
1
#6
16210-MGP-D60
INSULATOR, THROTTLE BODY
$77.97¢38 985
1
#007
16218-MFL-000
BAND, INSULATOR
$7.54¢3 772
1
#7
16218-MFL-000
BAND, INSULATOR
$7.54¢3 772
1
#8
31912-MFL-003
SPARK PLUG (IMR9E-9HES) (NGK)
$18.84¢9 418
1
#008
31912-MFL-003
SPARK PLUG (IMR9E-9HES) (NGK)
$18.84¢9 418
1
#008
31922-MEL-003
SPARK PLUG (VUH27ES) (DENSO)
$33.66¢16 830
1
#8
31922-MEL-003
SPARK PLUG (VUH27ES) (DENSO)
$33.66¢16 830
1
#9
90004-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$3.91¢1 955
1
#009
90004-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$3.91¢1 955
1
#10
90012-MFL-000
BOLT, FLANGE (6X105)
$3.98¢1 989
1
#010
90012-MFL-000
BOLT, FLANGE (6X105)
$3.98¢1 989
1
#011
90016-KT7-000
BOLT, FLANGE (6X37)
$3.36¢1 679
1
#11
90016-KT7-000
BOLT, FLANGE (6X37)
$3.36¢1 679
1
#012
90018-425-000
BOLT, FLANGE (6X48)
$3.74¢1 869
1
#12
90018-425-000
BOLT, FLANGE (6X48)
$3.74¢1 869
1
#013
90023-MFL-000
SHAFT B, CAM CHAIN TENSIONER
$28.40¢14 202
1
#13
90023-MFL-000
SHAFT B, CAM CHAIN TENSIONER
$28.40¢14 202
1
#14
90035-MM5-000
BOLT, STUD (8X24)
$5.70¢2 852
1
#014
90035-MM5-000
BOLT, STUD (8X24)
$5.70¢2 852
1
#015
90232-MFL-000
NUT, SPECIAL (9MM)
$4.17¢2 087
1
#15
90232-MFL-000
NUT, SPECIAL (9MM)
$4.17¢2 087
1
#016
90234-MFL-000
NUT, SPECIAL CAP (9MM)
$6.67¢3 335
1
#16
90234-MFL-000
NUT, SPECIAL CAP (9MM)
$6.67¢3 335
1
#017
90403-MFL-000
WASHER, SEALING (24MM)
$1.70¢851
1
#17
90403-MFL-000
WASHER, SEALING (24MM)
$1.70¢851
1
#18
90405-MFL-000
WASHER, PLAIN (9MM)
$2.53¢1 265
1
#018
90405-MFL-000
WASHER, PLAIN (9MM)
$2.53¢1 265
1
#19
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#019
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#020
91301-MEL-003
O-RING (43.7X2.5)
$4.96¢2 478
1
#20
91301-MEL-003
O-RING (43.7X2.5)
$4.96¢2 478
1
#021
94301-08200
PIN, DOWEL (8X20)
$2.66¢1 328
1
#21
94301-08200
PIN, DOWEL (8X20)
$2.66¢1 328
1
#022
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
#22
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
