FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

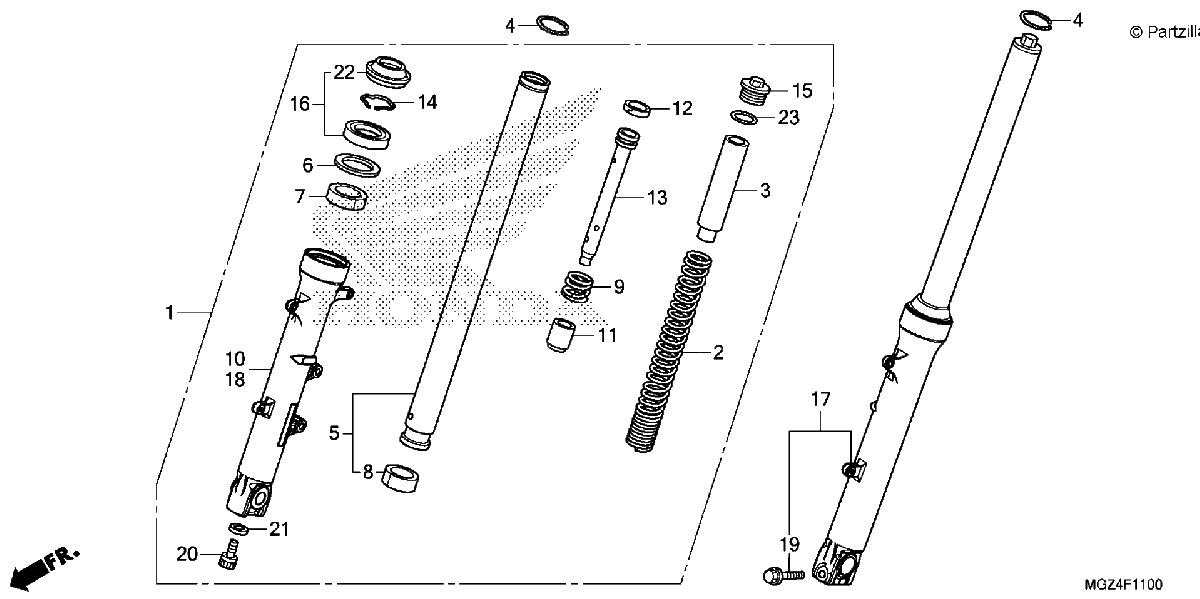

Diagrama de FRONT FORK

Repuestos

#1
51400-MGZ-305
FORK ASSY., R. FR. (COO) (SHOWA)
$579.83¢289 915
1
#2
51401-MGZ-J01
SPRING, Front FORK
$103.16¢51 578
1
#3
51402-MGZ-J01
COLLAR, SPRING
$19.08¢9 539
1
#4
51405-MB4-003
RING, STOPPER
$6.79¢3 393
1
#5
51410-MGZ-J01
PIPE, FR. FORK
$290.72¢145 360
1
#6
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#7
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#8
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#9
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$8.61¢4 307
1
#10
51420-MGZ-J01
CASE, Right. (LOWER)
$95.16¢47 581
1
#11
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#12
51437-KV3-701
RING, PISTON
$8.03¢4 013
1
#13
51440-MGZ-J01
PIPE, SEAT
$53.45¢26 726
1
#14
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#15
51454-MM9-671
BOLT, FR. FORK
$40.97¢20 487
1
#16
51490-MER-R61
SEAL SET, Front FORK
$24.32¢12 161
1
#17
51500-MGZ-305
FORK ASSY., L. FR. (COO) (SHOWA)
$580.73¢290 364
1
#18
51520-MGZ-J01
CASE, Left (LOWER)
$87.46¢43 729
1
#19
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#20
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#21
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#22
91254-MEE-D01
DUST SEAL (SHOWA)
$9.20¢4 600
1
#23
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
