MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

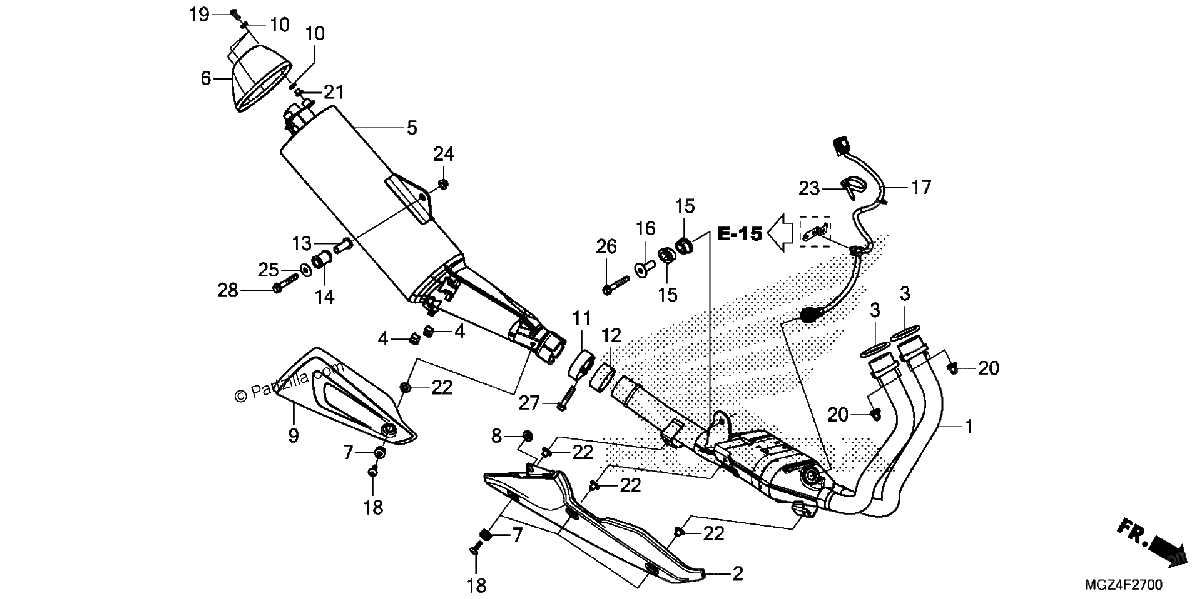

Diagrama de MUFFLER

Repuestos

#1
18150-MGZ-D01
PIPE, EX.
$1056.08¢528 040
1
#2
18180-MGZ-J00
COVER, EX. MANIFOLD
$76.19¢38 094
1
#3
18291-MN4-920
GASKET, EX. PIPE
$5.92¢2 961
1
#4
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#5
18310-MGZ-305
MUFFLER (COO)
$575.45¢287 724
1
#6
18315-MGZ-J00
CAP, MUFFLER TAIL
$16.55¢8 274
1
#7
18320-196-000
RUBBER A, PROTECTOR
$3.16¢1 581
1
#8
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#9
18350-MGZ-J00
COVER, MUFFLER
$38.97¢19 487
1
#10
18365-MEE-D00
WASHER, RUBBER (8.5X13X2.5)
$2.28¢1 138
1
#11
18376-413-000
BAND, L. RR. MUFFLER
$39.21¢19 607
1
#12
18392-MG7-750
GASKET, MUFFLER
$14.59¢7 297
1
#13
18420-MGZ-J00
COLLAR, MUFFLER MOUNTING
$5.59¢2 794
1
#14
18421-MGZ-J00
RUBBER, MUFFLER MOUNTING
$2.21¢1 104
1
#15
18422-MGZ-J00
RUBBER, EX. PIPE MOUNTING
$9.50¢4 749
1
#16
18423-MGZ-J00
COLLAR, EX PIPE MOUNTING
$5.86¢2 932
1
#17
36531-MGZ-J01
SENSOR, OXYGEN
$326.51¢163 254
1
#18
90118-MGZ-J00
SCREW, PAN (6X20)
$1.26¢633
1
#19
90132-MFJ-D00
BOLT, SPECIAL (6X18) (SUS)
$2.74¢1 368
1
#20
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#21
90501-GN5-830
COLLAR (8.5X7)
$2.53¢1 265
1
#22
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.51¢1 254
1
#23
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#24
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#25
94103-08000
WASHER, PLAIN (8MM)
$0.77¢385
1
#26
95701-08050-00
BOLT, FLANGE (8X50)
$2.69¢1 346
1
#27
96400-08035-04
BOLT, FLANGE (8X35)
$0.76¢380
1
#28
95801-08050-00
BOLT, FLANGE (8X50)
$3.36¢1 679
1
#28
96400-08050-00
BOLT, FLANGE (8X50)
$3.36¢1 679
1
