CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

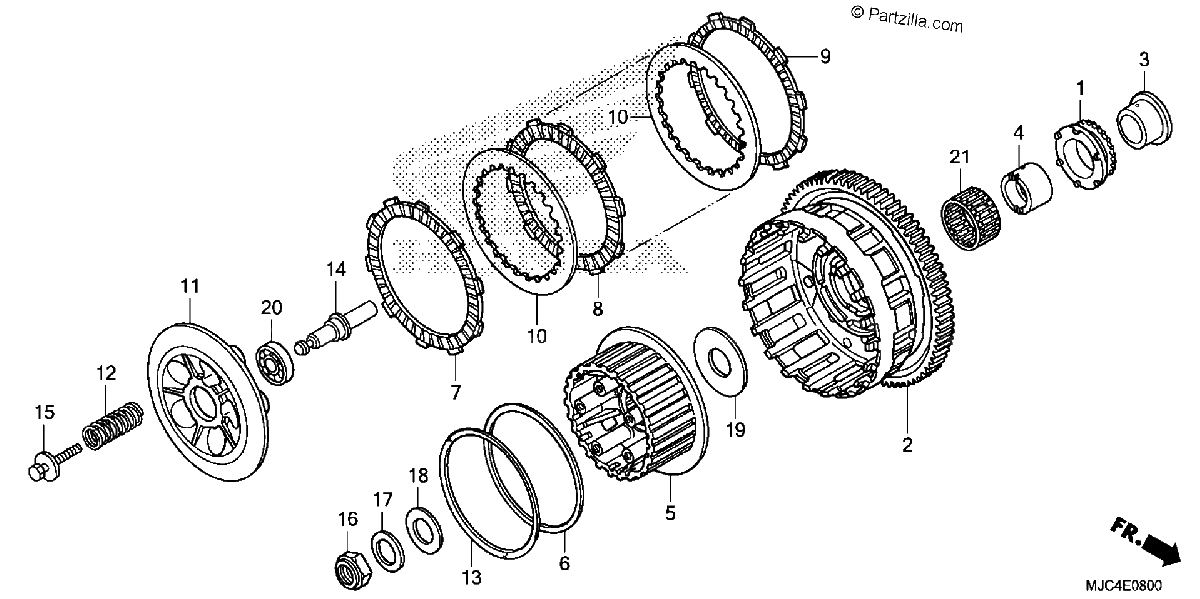

Diagrama de CLUTCH

Repuestos

#1
15131-MAL-A01
SPROCKET, OIL PUMP DRIVE (26T)
$71.15¢35 575
1
#2
22100-MFJ-D00
CLUTCH OUTER
$460.16¢230 081
1
#3
22116-MJC-D00
COLLAR, OIL PUMP SPROCKET
$27.03¢13 513
1
#4
22118-MEE-000
GUIDE B, CLUTCH (OUTER) (2MM HOLE)
$21.11¢10 556
1
#5
22120-MEE-000
CENTER, CLUTCH
$107.41¢53 706
1
#6
22125-ML7-000
SEAT, JUDDER SPRING
$12.49¢6 244
1
#7
22201-MAE-000
DISK, CLUTCH FRICTION
$20.58¢10 288
1
#8
22201-MFJ-D00
DISK, CLUTCH FRICTION
$15.26¢7 631
1
#9
22202-MAE-000
DISK B, CLUTCH FRICTION
$18.59¢9 294
1
#10
22321-MAS-000
PLATE, CLUTCH
$18.09¢9 044
1
#11
22350-MCJ-000
PLATE, CLUTCH PRESSURE
$74.65¢37 325
1
#12
22401-MBG-D00
SPRING, CLUTCH
$4.95¢2 475
1
#13
22402-MAS-E00
SPRING, JUDDER
$24.59¢12 294
1
#14
22847-MFJ-D00
PIN, CLUTCH LIFTER
$18.73¢9 363
1
#15
90024-MAS-000
BOLT-WASHER (6X28)
$4.53¢2 263
1
#16
90231-MM5-000
NUT, LOCK (22MM)
$12.13¢6 063
1
#17
90432-MM5-000
WASHER, SPRING (22MM)
$9.98¢4 988
1
#18
90451-KG4-000
WASHER, THRUST (22X39X2)
$5.69¢2 844
1
#19
90459-MM4-000
WASHER (60X25X2)
$12.45¢6 225
1
#20
91009-MAS-003
BEARING, RADIAL BALL (16003)
$26.36¢13 181
1
#21
91102-MEE-003
BEARING B, NEEDLE (35X41X23.8) (WHITE)
$7.94¢3 969
1
