SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

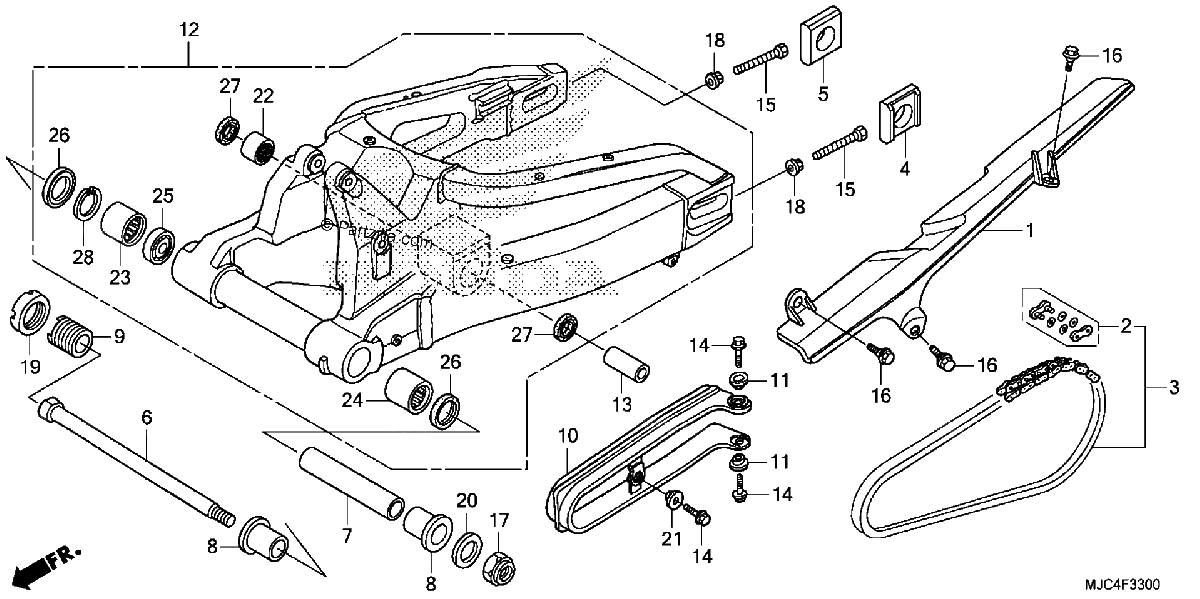

Diagrama de SWINGARM

Repuestos

#1
40510-MEE-010
CASE, DRIVE CHAIN
$53.52¢26 760
1
#2
40535-MAL-G01
MASTER LINK SET (DAIDO)
$9.46¢4 732
1
#2
40541-MFJ-D02
MASTER LINK SET (RK EXCEL)
$15.50¢7 751
1
#3
40540-MAL-G01
CHAIN, DRIVE (DID525HV-120ZB) (DAIDO)
$283.19¢141 594
1
#3
40540-MFJ-D02
CHAIN, DRIVE (525ROZ6-120LJFZ) (RK EXCEL)
$271.28¢135 642
1
#4
42305-MFL-000
COLLAR, L. RR. AXLE
$26.92¢13 461
1
#5
42306-MFL-000
COLLAR, R. RR. AXLE
$22.09¢11 046
1
#6
52101-MFJ-D00
BOLT, SWINGARM PIVOT
$64.42¢32 212
1
#7
52102-MJC-A00
COLLAR, SWINGARM PIVOT
$27.28¢13 639
1
#8
52106-MGC-D30
COLLAR B, PIVOT
$37.50¢18 751
1
#9
52108-MFJ-D00
BOLT, R. PIVOT ADJUSTING
$28.11¢14 053
1
#10
52170-MFJ-D00
SLIDER, CHAIN
$43.29¢21 643
1
#11
52171-MFJ-D00
WASHER, CHAIN SLIDER
$2.62¢1 311
1
#12
52200-MFJ-J30
SWINGARM SUB-ASSY., RR.
$1377.46¢688 729
1
#13
52463-MJC-A00
COLLAR, CUSHION CONNECTING ROD
$9.90¢4 951
1
#14
90105-MY9-000
BOLT, FLANGE (6X18)
$3.36¢1 679
1
#15
90106-MCF-D00
BOLT, HEX. (8X50)
$2.86¢1 432
1
#16
90113-MAS-E00
BOLT, FLANGE (6MM)
$3.09¢1 547
1
#17
90306-MCS-G01
NUT, U (18MM)
$7.60¢3 801
1
#18
90309-357-000
NUT, HEX. (8MM)
$3.79¢1 897
1
#19
90355-MFJ-D00
NUT, SWINGARM PIVOT
$18.69¢9 344
1
#20
90401-KZ4-890
WASHER (18X32X2)
$4.99¢2 496
1
#21
90485-MB2-000
WASHER (6MM)
$2.38¢1 190
1
#22
91071-KV3-005
BEARING, NEEDLE (KOYO)
$26.59¢13 294
1
#23
91071-MBW-E11
BEARING, NEEDLE
$18.38¢9 189
1
#24
91071-MR7-003
BEARING, NEEDLE
$27.44¢13 719
1
#25
91072-MR7-003
BEARING, RADIAL BALL (20X37X9)
$19.38¢9 689
1
#26
91202-MR7-003
DUST SEAL (28X37X4)
$7.08¢3 542
1
#27
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#28
94520-37000
CIRCLIP, INNER (37MM)
$2.59¢1 294
1
