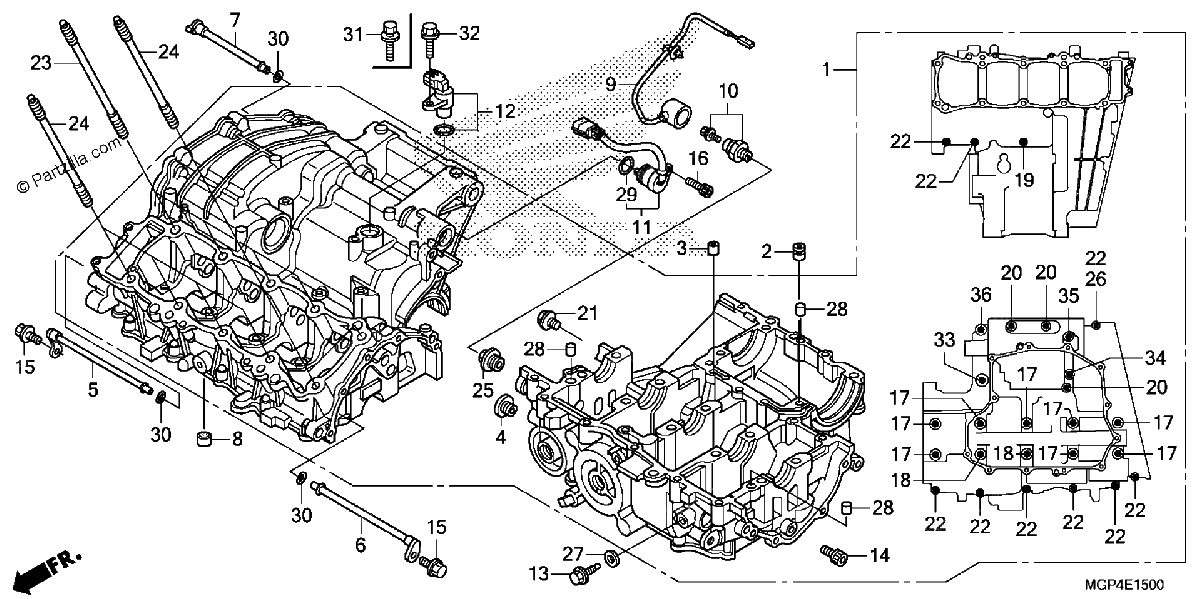

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE SET
$3732.15¢1 866 075
#2
ORIFICE
$7.81¢3 906
#3
ORIFICE (1.1MM)
$4.84¢2 419
#4
BOLT, SEALING (20MM)
$11.74¢5 869
#5
PIPE, R. OIL JET
$89.08¢44 538
#6
PIPE, L. OIL JET
$89.08¢44 538
#7
PIPE, TRANSMISSION OIL JET
$61.54¢30 769
#8
ORIFICE (1MM)
$9.68¢4 838
#9
SUB-HARNESS, ENGINE
$13.27¢6 637
#10
SWITCH Assembly., OIL PRESSURE (DENSO)
$49.28¢24 638
#11
SWITCH ASSY., CHANGE
$159.88¢79 938
#12
SENSOR ASSY., SPEED
$95.70¢47 850
#13
BOLT, SPECIAL (6X18)
$2.88¢1 438
#14
BOLT, SOCKET (8X12)
$2.44¢1 219
#15
BOLT, KNOCK (6MM)
$3.65¢1 825
#16
BOLT, SOCKET KNOCK (6MM)
$9.14¢4 569
#17
BOLT, FLANGE (9X105)
$5.96¢2 981
#18
BOLT, FLANGE (9X126)
$6.38¢3 188
#19
BOLT, FLANGE (7X60)
$2.97¢1 487
#20
BOLT, FLANGE (7X50)
$2.88¢1 438
#21
BOLT, SEALING (8MM)
$8.69¢4 344
#22
BOLT, FLANGE (7X40)
$2.60¢1 300
#23
BOLT, STUD (9X145.5)
$15.48¢7 738
#24
BOLT, STUD (9X134)
$14.88¢7 438
#25
BOLT, SEALING (22MM)
$12.24¢6 119
#26
WASHER, SEALING (7MM)
$3.43¢1 713
#27
WASHER, SEALING (6.5MM)
$3.65¢1 825
#28
PIN, DOWEL (10X16)
$5.21¢2 606
#29
O-RING (16.5X2.5)
$2.52¢1 263
#30
O-RING (4.8X1.9)
$3.36¢1 681
#30
O-RING (4.8X1.9) (NOK)
$3.36¢1 681
#31
BOLT-WASHER (6X25)
$1.14¢569
#33
BOLT, FLANGE (8X50)
$2.92¢1 463
#34
BOLT, FLANGE (8X55)
$2.38¢1 188
#35
BOLT, FLANGE (8X80)
$2.21¢1 106
#36
BOLT, FLANGE (10X60)
$2.54¢1 269
