WIRE HARNESS 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

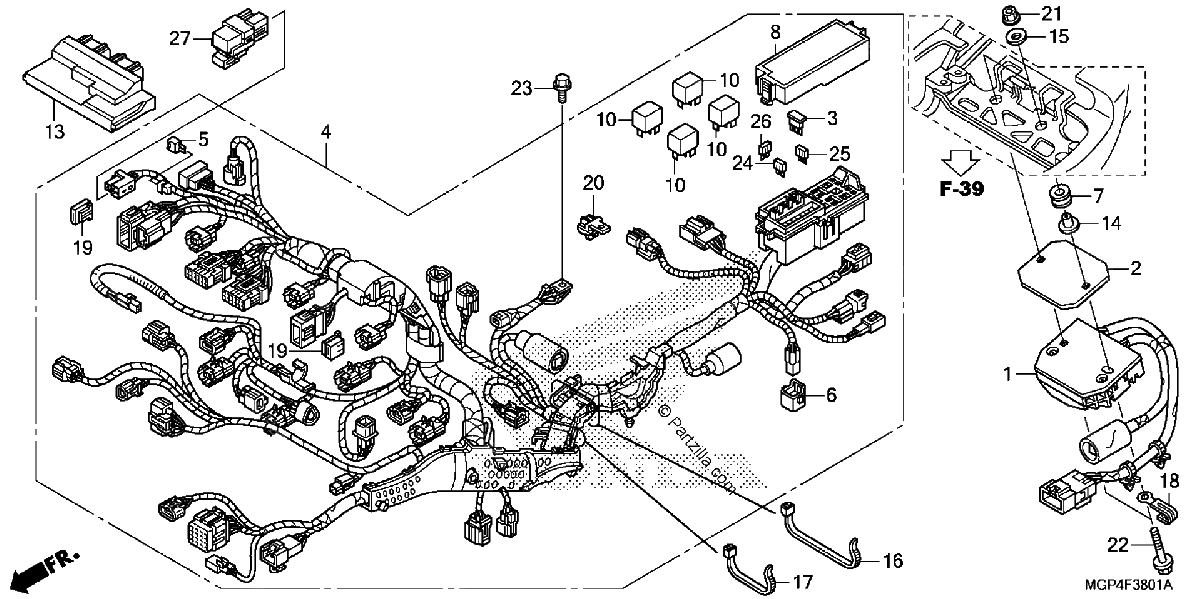

Diagrama de WIRE HARNESS 2

Repuestos

#1
31600-MFL-D01
RECTIFIER ASSY., REGULATOR
$438.54¢219 270
1
#2
31605-MCR-D00
SPACER, REGULATOR RECTIFIER
$12.80¢6 400
1
#3
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
1
#4
32100-MGP-940
WIRE HARNESS
$1731.05¢865 524
1
#5
32146-S84-003
CONNECTOR, DIODE (2P) (3A)
$16.01¢8 004
1
#6
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.36¢2 680
1
#7
36037-657-000
GROMMET A, TUBE
$6.87¢3 433
1
#8
38252-MFJ-D01
COVER (UPPER)
$11.99¢5 997
1
#9
38306-KJ6-740
SUSPENSION, TURN SIGNAL RELAY
$8.88¢4 439
1
#9
38306-KJ6-741
SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)
No Disponible
1
#10
38501-MEL-003
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
1
#11
38502-MGP-D01
RELAY, POWER
$19.53¢9 763
1
#12
38506-MBW-G91
HOLDER, RELAY
$4.22¢2 110
1
#13
38770-MGP-L82
PGM-FI UNIT
$1376.10¢688 051
1
#14
50609-MFF-D00
COLLAR, RR. EX. PROTECTOR
$5.69¢2 846
1
#15
90482-567-000
WASHER, SPECIAL (6MM)
$2.21¢1 104
1
#15
90581-701-000
WASHER (18MM)
$2.21¢1 104
1
#15
90581-831-650
WASHER (18MM)
$2.21¢1 104
1
#16
90620-SB2-003
BAND, WIRE HARNESS
$29.19¢14 593
1
#17
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#18
91413-679-000
CLIP (2X70)
$9.95¢4 974
1
#19
91554-SM4-003
HOLDER, BRACKET (RED)
$9.26¢4 629
1
#20
91565-S0X-003
CLIP, CONNECTOR (DARK GREEN)
$4.30¢2 151
1
#21
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#22
95701-06035-00
BOLT, FLANGE (6X35)
$2.22¢1 110
1
#23
96300-06012-00
BOLT, FLANGE (6X12)
$1.12¢558
1
#24
98200-41000
FUSE, MINI (10A)
$1.56¢782
1
#25
98200-42000
FUSE, MINI (20A)
$1.37¢684
1
#26
98200-43000
FUSE, MINI (30A)
$1.98¢989
1
#27
38500-MGP-D01
RELAY ASSY., POWER (MICRO ISO 5P) (OMRON)
$25.77¢12 886
1
