FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

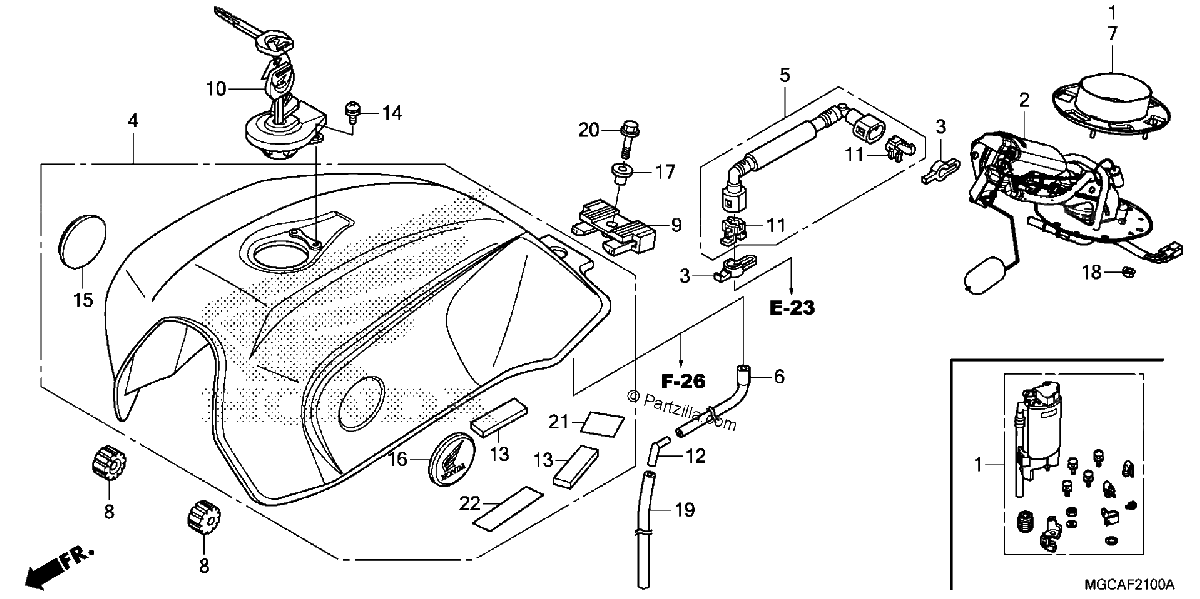

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#1
16011-MGC-010
FILTER ASSY., FUEL
$412.44¢206 218
1
#2
16700-MGC-N21
PUMP ASSY., FUEL (MSDS)
$807.30¢403 650
1
#3
16719-MFJ-D00
DAMPER, CONNECTOR
$3.36¢1 679
1
#4
17520-MGC-N40ZC
TANK SET, FUEL (TYPE3) (WL)
$1642.22¢821 112
1
#5
17526-MGC-003
HOSE, FUEL FEED
$131.39¢65 694
1
#7
17574-MFA-D00
GASKET, BASE
$27.63¢13 817
1
#8
17611-286-000
CUSHION, FR. FUEL TANK
$4.70¢2 352
1
#8
17611-KE8-000
CUSHION, FR. FUEL TANK
$4.70¢2 352
1
#9
17613-KV3-700
CUSHION, RR. FUEL TANK
$18.37¢9 183
1
#10
17620-MGC-003
CAP, FUEL FILLER
$140.09¢70 047
1
#11
17711-S0X-931
RETAINER (BLUE GREEN) (TOKAI)
$3.69¢1 846
1
#13
31511-088-740
RUBBER, BATTERY MOUNTING
$3.22¢1 610
1
#14
45319-634-003
SCREW-WASHER (4X6)
$2.94¢1 472
1
#15
64503-MFL-000
BADGE, R. PRODUCT
$41.08¢20 539
1
#16
64508-MFL-000
BADGE, L. PRODUCT
$41.08¢20 539
1
#17
80101-KB7-600
COLLAR (8X12)
$6.59¢3 295
1
#18
90213-PH3-000
NUT, CAP (6MM)
$7.39¢3 697
1
#20
95701-08028-00
BOLT, FLANGE (8X28)
$1.64¢822
1
#21
17528-KCZ-930
TAPE B, TANK GUARD
$4.42¢2 208
1
#22
17535-KBH-300
FILM, SIDE COVER GUARD
$6.72¢3 358
1
