STEP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

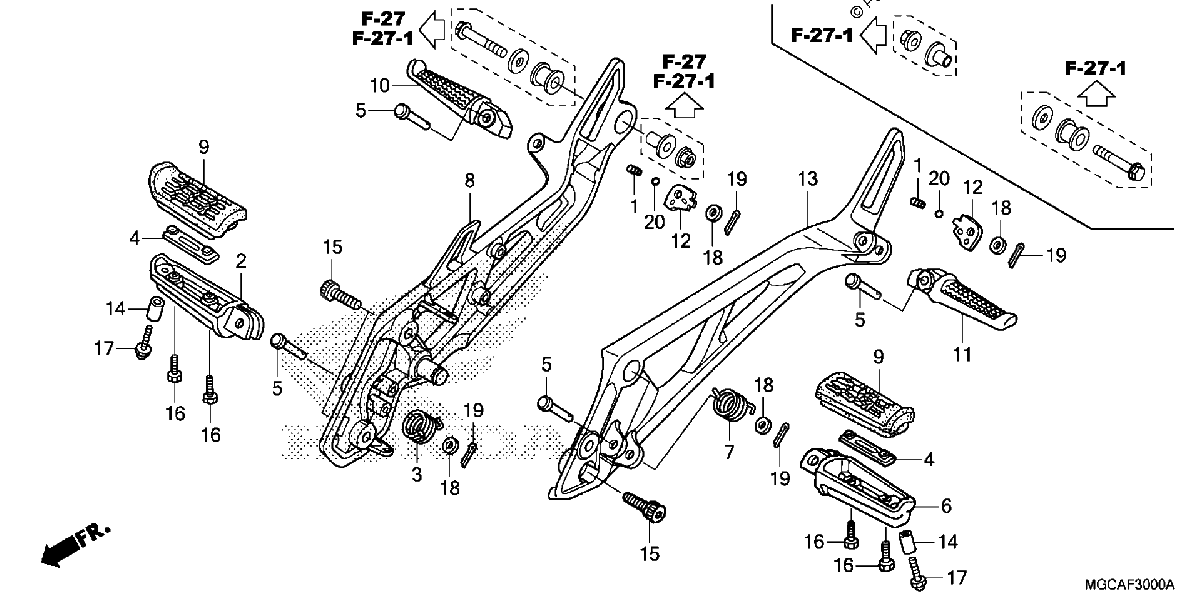

Diagrama de STEP

Repuestos

#1
28333-300-000
SPRING, KICK STARTER STOPPER
$3.36¢1 679
1
#2
50612-KYJ-305
ARM, R. STEP (COO)
$27.88¢13 938
1
#2
50612-MM5-000
ARM, R. STEP
$27.88¢13 938
1
#3
50617-MM5-000
SPRING, R. STEP RETURN
$5.35¢2 674
1
#4
50619-MM5-000
PLATE, STEP SETTING
$8.83¢4 416
1
#5
50639-ML0-010
PIN, STEP BAR
$5.65¢2 823
1
#6
50642-KYJ-305
ARM, L. STEP (COO)
$27.88¢13 938
1
#6
50642-MM5-000
ARM, L. STEP
$27.88¢13 938
1
#7
50644-MM5-000
SPRING, L. STEP RETURN
$5.35¢2 674
1
#8
50650-MGC-N00
HOLDER, R. STEP
$330.76¢165 382
1
#9
50661-MV9-000
RUBBER, STEP
$15.43¢7 716
1
#10
50711-MN8-010
ARM, R. PILLION STEP
$59.72¢29 860
1
#11
50712-MN8-010
ARM, L. PILLION STEP
$62.44¢31 222
1
#12
50718-MN8-000
PLATE, PILLION STEP CLICK
$2.94¢1 472
1
#13
50750-MGC-N00
HOLDER, L. STEP
$281.40¢140 703
1
#14
51486-MGC-920
COLLAR, STEP
$4.89¢2 444
1
#15
90112-MBR-J10
BOLT, SOCKET (8X34)
$3.68¢1 840
1
#16
90115-MV9-000
BOLT, MAIN STEP RUBBER SETTING
$4.09¢2 047
1
#17
92501-08035-0A
BOLT, CAP (8X35)
$3.51¢1 754
1
#18
94102-08000
WASHER, PLAIN (8MM)
$1.06¢529
1
#19
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#20
96211-08000
BALL, STEEL (#8) (1/4)
$1.47¢736
1
