FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

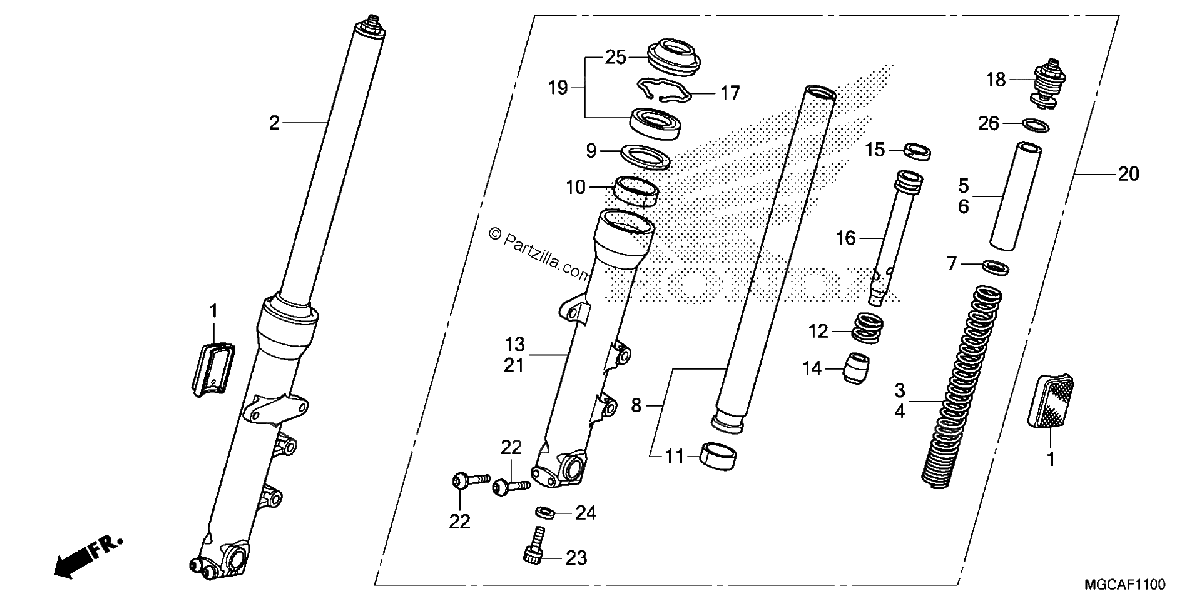

Diagrama de FRONT FORK

Repuestos

#1
33740-MEG-671
REFLECTOR, Front SIDE REFLEX
$15.65¢7 826
1
#2
51400-MGC-307
FORK ASSY., R. FR. (COO) (SHOWA)
$941.06¢470 528
1
#3
51401-MGC-003
SPRING, FR. FORK
$108.21¢54 107
1
#4
51401-MGC-003
SPRING, FR. FORK
$108.21¢54 107
1
#5
51402-KV3-701
COLLAR, SPRING (SHOWA)
$25.63¢12 817
1
#6
51402-KV3-701
COLLAR, SPRING (SHOWA)
$25.63¢12 817
1
#7
51403-KF0-003
SEAT, SPRING (SHOWA)
$5.35¢2 674
1
#8
51410-MGC-003
PIPE, FR. FORK
$473.80¢236 900
1
#9
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#10
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#11
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#12
51416-MM8-881
SPRING, FR. REBOUND (SHOWA)
$6.57¢3 283
1
#13
51420-MGC-D41
CASE, R. (LOWER)
$485.39¢242 696
1
#14
51432-KV3-701
PIECE, OIL LOCK (SHOWA)
$21.26¢10 632
1
#15
51437-MM5-003
RING, PISTON
$5.92¢2 961
1
#16
51440-MGC-003
PIPE, SEAT
$56.91¢28 457
1
#17
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#18
51450-MGC-003
BOLT ASSY., FR. FORK (SHOWA)
$71.39¢35 696
1
#19
51490-MER-R61
SEAL SET, Front FORK
$24.32¢12 161
1
#19
51490-MKA-D81
SEAL SET, FR. FORK
$24.32¢12 161
1
#20
51500-MGC-307
FORK ASSY., L. FR. (COO) (SHOWA)
$941.06¢470 528
1
#21
51520-MGC-D41
CASE, L. (LOWER)
$485.39¢242 696
1
#22
90109-MBT-611
BOLT, SOCKET (8X45)
$4.48¢2 242
1
#23
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#24
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#25
91254-MEE-D01
DUST SEAL (SHOWA)
$9.20¢4 600
1
#26
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
