REAR BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

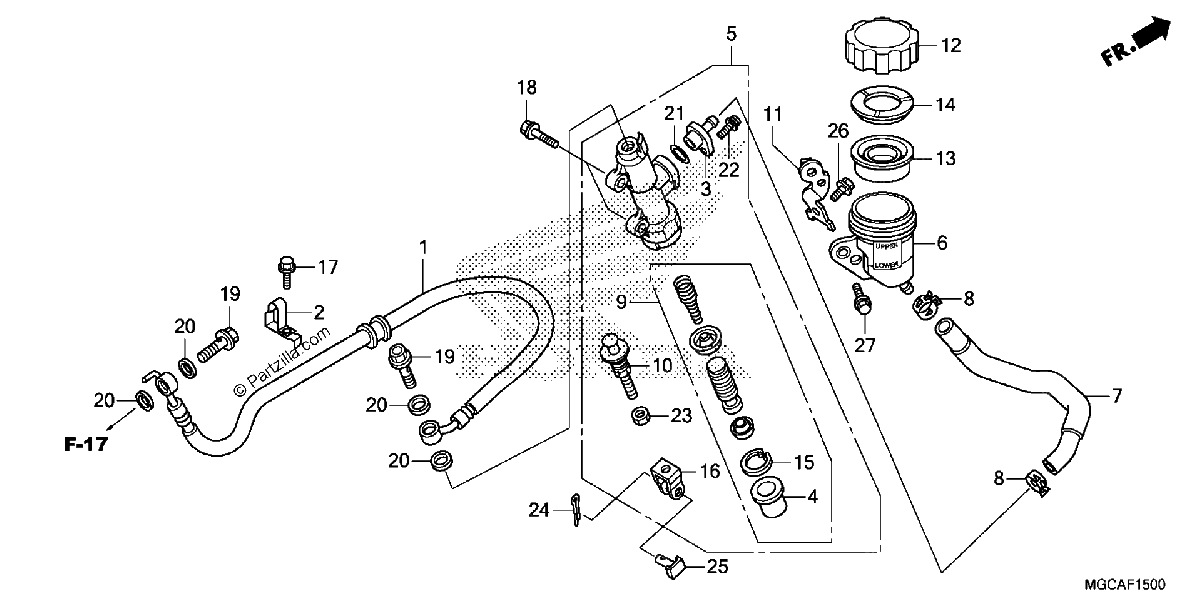

Diagrama de REAR BRAKE MASTER CYLINDER 1

Repuestos

#1
43310-MGC-N41
HOSE, RR. BRAKE
$61.97¢30 987
1
#2
43315-MGC-000
CLAMP, RR. BRAKE HOSE
$12.10¢6 049
1
#3
43503-HB5-006
CONNECTOR
$11.79¢5 894
1
#4
43504-MB2-006
BOOT
$10.80¢5 399
1
#5
43510-MGC-006
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
$261.64¢130 818
1
#6
43511-MGE-016
CUP, MASTER CYLINDER OIL
$26.68¢13 340
1
#7
43512-MGC-006
HOSE, RR. BRAKE MASTER CYLINDER
$39.02¢19 510
1
#8
43514-445-771
CLAMP, MASTER CYLINDER OIL HOSE
$15.25¢7 624
1
#9
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
1
#10
43530-KV3-701
ROD, PUSH
$23.49¢11 747
1
#11
43555-MGC-000
STAY, OIL CUP
$7.35¢3 674
1
#12
45513-MEL-D21
CAP, OIL CUP
$19.68¢9 838
1
#13
45520-300-000
DIAPHRAGM
$9.74¢4 870
1
#14
45521-MJ6-006
PLATE, DIAPHRAGM
$4.52¢2 260
1
#15
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#16
46504-MAH-671
JOINT, BRAKE ROD
$16.93¢8 464
1
#17
90112-MEL-000
BOLT, FLANGE (6X18)
$2.09¢1 047
1
#18
90131-124-000
BOLT, FLANGE (6X25)
$0.89¢443
1
#19
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#20
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#21
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#22
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#22
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#23
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#24
94201-20120
PIN, SPLIT (2.0X12)
$1.17¢586
1
#25
95015-54000
PIN D, JOINT
$4.74¢2 369
1
#26
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#27
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
