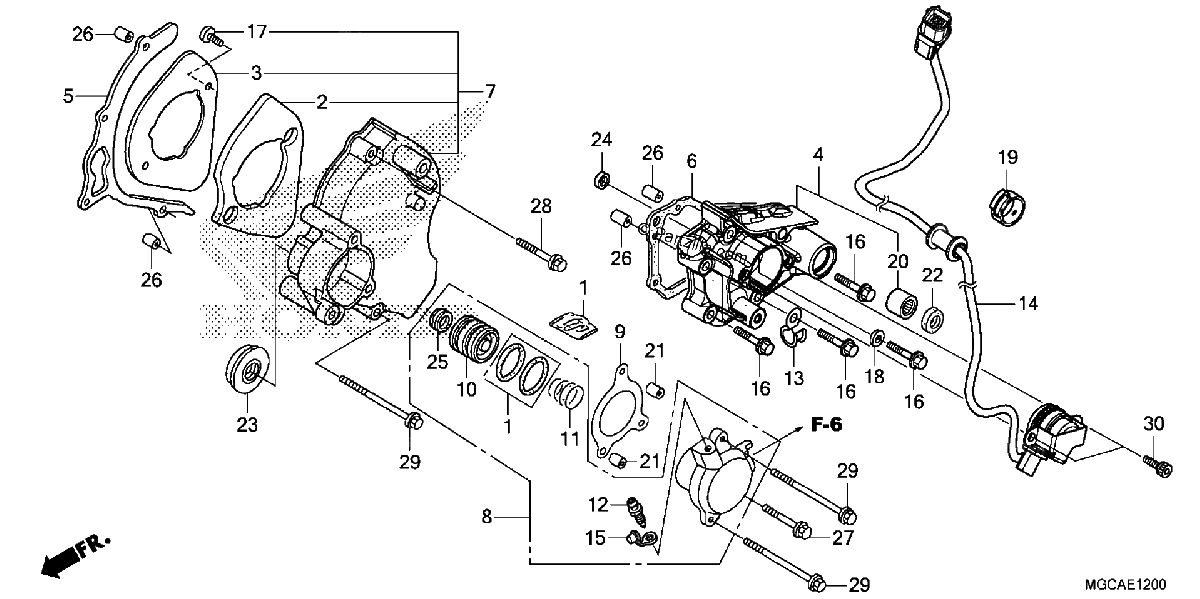

LEFT REAR COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
O-RING SET (MSDS)
$5.82¢2 909
#2
RUBBER, L. RR. COVER
$35.62¢17 808
#3
PLATE, L. RR. COVER RUBBER
$21.93¢10 965
#4
HOLDER, L. SIDE
$125.18¢62 589
#5
PLATE, DRIVE CHAIN GUIDE
$16.72¢8 360
#6
GASKET, L. SIDE HOLDER
$10.29¢5 146
#7
COVER ASSY., L. RR. CRANKCASE
$158.83¢79 413
#8
CYLINDER ASSY., CLUTCH SLAVE
$159.08¢79 540
#9
GASKET, SLAVE CYLINDER
$5.55¢2 777
#10
PISTON, SLAVE CYLINDER
$35.24¢17 618
#11
SPRING, SLAVE CYLINDER
$8.79¢4 393
#12
SCREW, BLEEDER
$5.70¢2 852
#13
CLIP, DYNAMO WIRE
$5.30¢2 651
#14
SWITCH ASSY., CHANGE
$122.54¢61 272
#15
CAP, BLEEDER
$5.63¢2 818
#16
BOLT, FLANGE (6X35) (NSHF)
$4.54¢2 271
#17
SCREW, PAN (6X14)
$3.45¢1 725
#18
WASHER, SEALING (6.5MM)
$3.36¢1 679
#19
CLIP, WIRE HARNESS
$3.98¢1 989
#20
BEARING, NEEDLE (19X13X12)
No Disponible
#21
PIN, DOWEL (8X10)
$3.01¢1 507
#22
OIL SEAL (13X22X5) (ARAI)
$3.47¢1 737
#23
OIL SEAL (8X25X7) (ARAI)
$4.83¢2 415
#24
OIL SEAL (6X16X5) (ARAI)
$5.36¢2 680
#24
OIL SEAL (6X16X5) (NOK)
$5.36¢2 680
#25
OIL SEAL (8X18X5)
$4.52¢2 260
#26
PIN, DOWEL (8X14)
$2.66¢1 328
#27
BOLT, FLANGE (6X25)
$2.48¢1 242
#28
BOLT, FLANGE (6X45)
$2.32¢1 162
#29
BOLT, FLANGE (6X75)
$2.64¢1 322
#30
BOLT, SOCKET (6X14)
$4.68¢2 340
