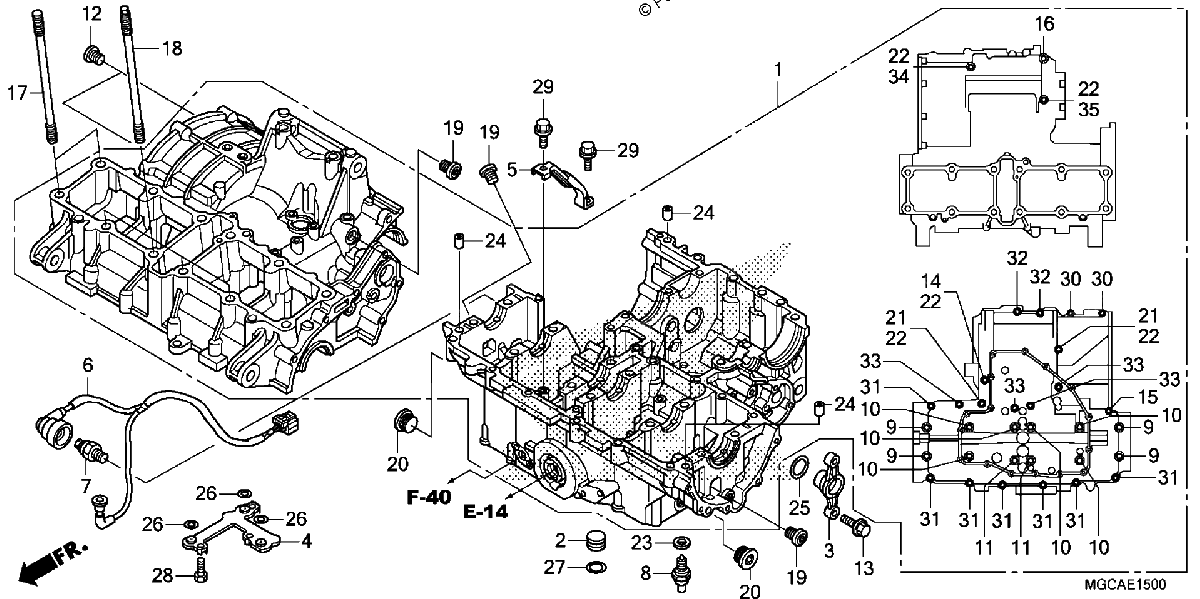

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE SET
$3262.66¢1 631 332
#2
COLLAR, MAIN GALLERY
$5.37¢2 685
#3
COVER, L. MIDDLE
$40.55¢20 274
#4
PLATE, OIL PASSAGE
$64.63¢32 315
#5
GUIDE, OIL PUMP CHAIN
$44.87¢22 437
#6
SUB-WIRE, ENGINE
$41.48¢20 740
#7
SWITCH Assembly., OIL PRESSURE (DENSO)
$45.33¢22 667
#8
SWITCH ASSY., NEUTRAL (TOYO)
$20.34¢10 172
#9
BOLT, FLANGE (9X91)
$6.81¢3 404
#10
BOLT, FLANGE (9X131)
$8.08¢4 042
#11
BOLT, FLANGE (9X156)
$9.50¢4 749
#12
BOLT, SOCKET (10MM)
$2.68¢1 340
#13
BOLT, FLANGE (6X22) (NSHF)
$2.13¢1 064
#14
BOLT, FLANGE (8X135)
$7.97¢3 985
#15
BOLT, FLANGE (6X93)
$6.81¢3 404
#16
BOLT, FLANGE (10X75)
$4.14¢2 070
#17
BOLT, STUD (9X165)
$24.64¢12 322
#18
BOLT B, STUD (9X165)
$24.64¢12 322
#19
BOLT, SPECIAL (10MM)
$7.58¢3 789
#20
BOLT, SEALING (20MM)
$18.42¢9 212
#21
BOLT, FLANGE (8X115)
No Disponible
#22
WASHER, SEALING (8MM)
$3.09¢1 547
#23
WASHER, NEUTRAL
$2.28¢1 138
#24
PIN, DOWEL (10X16)
$4.80¢2 398
#25
O-RING (32.95X2.62) (ARAI)
$3.36¢1 679
#26
O-RING (9X2.3)
$2.74¢1 368
#27
O-RING (11.9X2.2)
$3.36¢1 679
#28
BOLT, HEX. (6X14)
$1.71¢857
#29
BOLT, FLANGE (6X14)
$1.13¢564
#30
BOLT, FLANGE (6X50)
$2.45¢1 225
#31
BOLT, FLANGE (8X40)
$1.41¢707
#32
BOLT, FLANGE (8X50)
$2.69¢1 346
#33
BOLT, FLANGE (8X60)
$1.79¢897
#34
BOLT, FLANGE (8X80)
$2.04¢1 018
#35
BOLT, FLANGE (8X95)
$2.33¢1 167
