FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

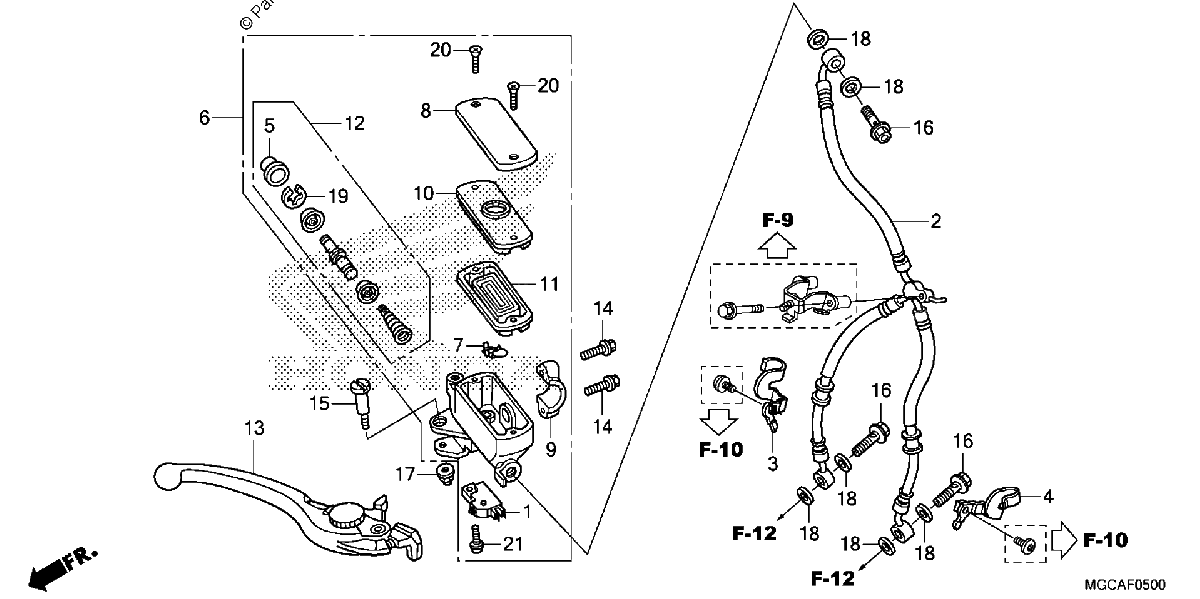

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#2
45125-MGC-N21
HOSE, FR. BRAKE
$176.65¢88 326
1
#3
45155-MGC-000
CLAMP, R. FR. BRAKE
$16.02¢8 010
1
#4
45156-MGC-000
CLAMP, L. FR. BRAKE
$16.02¢8 010
1
#5
45504-410-003
BOOT
$13.10¢6 549
1
#6
45510-MGH-305
MASTER CYLINDER SUB-ASSY., FR. (COO)
$352.54¢176 272
1
#7
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#8
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
1
#9
45517-166-006
HOLDER, MASTER CYLINDER
$14.48¢7 239
1
#10
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#11
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#12
45530-MA4-671
MASTER CYLINDER SET
$51.03¢25 513
1
#13
53170-MEJ-305
LEVER ASSY., R. HANDLE (COO)
$48.28¢24 138
1
#14
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.70¢851
1
#15
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#16
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#17
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#18
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#19
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#20
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#20
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#21
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#21
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
