SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

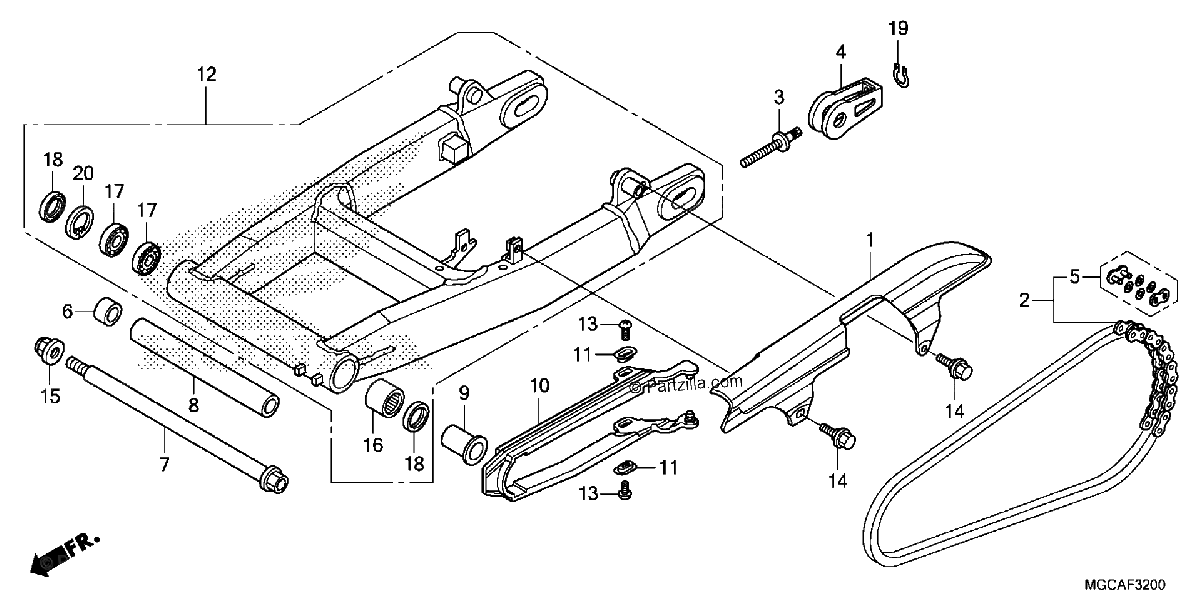

Diagrama de SWINGARM

Repuestos

#1
40510-MGC-000
CASE, DRIVE CHAIN
$86.86¢43 431
1
#2
40540-MFL-003
(STANDARD LINK 116L)
$362.13¢181 063
1
#2
40540-MFL-005
(STANDARD LINK 116L)
$362.13¢181 063
1
#3
40542-MGC-N20
BOLT, CHAIN ADJUSTING
$10.29¢5 144
1
#4
40543-MGC-N20
ADJUSTER, CHAIN
$36.09¢18 044
1
#5
40531-MFL-005
MASTER LINK (RK EXCEL)
$15.90¢7 950
1
#5
40541-MFL-003
MASTER LINK (DAIDO)
$10.96¢5 481
1
#6
44312-MCE-950
COLLAR, L. FR. WHEEL SIDE
$13.81¢6 906
1
#7
52101-MGC-000
BOLT, SWINGARM PIVOT
$56.44¢28 219
1
#8
52102-MGC-D30
COLLAR, SWINGARM PIVOT
$27.27¢13 638
1
#9
52106-MGC-D30
COLLAR B, PIVOT
$40.76¢20 381
1
#10
52170-MGC-000
SLIDER, CHAIN
$68.84¢34 419
1
#11
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#12
52200-MGC-N20
SWINGARM SUB-ASSY., RR.
$1209.61¢604 806
1
#13
90104-ML7-920
SCREW, PAN (5X10)
$3.65¢1 825
1
#14
90111-187-000
BOLT, FLANGE (6MM)
$6.79¢3 394
1
#15
90305-MB4-003
NUT, U (18MM)
$14.54¢7 269
1
#16
91071-MR7-003
BEARING, NEEDLE
$29.82¢14 913
1
#17
91072-MR7-003
BEARING, RADIAL BALL (20X37X9)
$21.06¢10 531
1
#18
91202-MR7-003
DUST SEAL (28X37X4)
$7.70¢3 850
1
#19
94511-10000
CIRCLIP (OUTER) (10MM)
$1.19¢594
1
#20
94520-37000
CIRCLIP, INNER (37MM)
$2.81¢1 406
1
